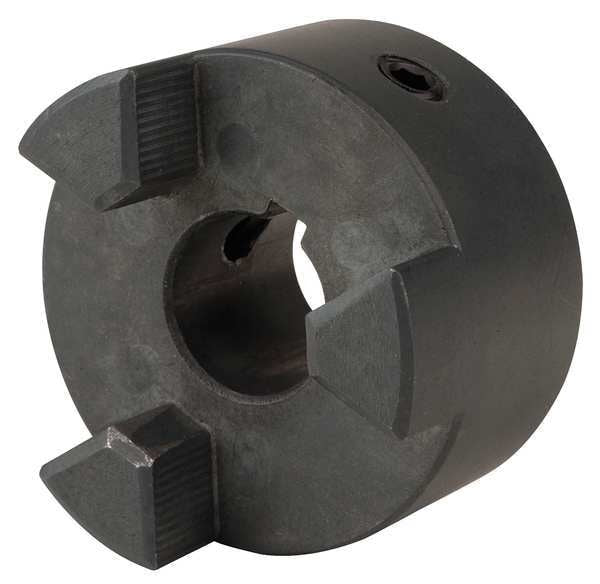

Jaw Coupling Hub, L190, Steel, 1-1/4"
SKU G6157925CategoriesDescription Shaft Coupler Body, Coupling Size L190, Outside Diameter 4 1/2 in, Coupling Overall Length 4 7/8 in, System of Measurement Inch, Hub Material Carbon Steel, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2.7 hp (Buna-N Spider), 7.44 hp (Hytrel Spider), Keyway Depth 1/8 in, Keyway Width 1/4 in, Bore Diameter 1 1/4 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Screw Thread Size 7/16-14 UNC, Hub Diameter 4 in, Hub Material Grade 1045$126.24 / eachWeb price
Jaw Coupling Hub, L190, Steel, 1-1/4"SKU G6157925CategoriesDescription Shaft Coupler Body, Coupling Size L190, Outside Diameter 4 1/2 in, Coupling Overall Length 4 7/8 in, System of Measurement Inch, Hub Material Carbon Steel, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2.7 hp (Buna-N Spider), 7.44 hp (Hytrel Spider), Keyway Depth 1/8 in, Keyway Width 1/4 in, Bore Diameter 1 1/4 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Screw Thread Size 7/16-14 UNC, Hub Diameter 4 in, Hub Material Grade 1045 -

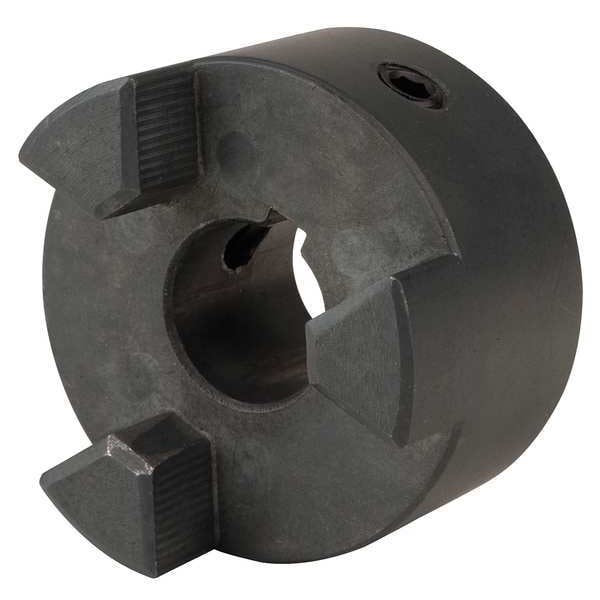

Jaw Coupling Hub, L190, Steel, 1-1/8"
SKU G6100665CategoriesDescription Shaft Coupler Body, Coupling Size L190, Outside Diameter 4 1/2 in, Coupling Overall Length 4 7/8 in, System of Measurement Inch, Hub Material Carbon Steel, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2.7 hp (Buna-N Spider), 7.44 hp (Hytrel Spider), Keyway Depth 1/8 in, Keyway Width 1/4 in, Bore Diameter 1 1/8 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Screw Thread Size 7/16-14 UNC, Hub Diameter 4 in, Hub Material Grade 1045$126.24 / eachWeb price
Jaw Coupling Hub, L190, Steel, 1-1/8"SKU G6100665CategoriesDescription Shaft Coupler Body, Coupling Size L190, Outside Diameter 4 1/2 in, Coupling Overall Length 4 7/8 in, System of Measurement Inch, Hub Material Carbon Steel, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2.7 hp (Buna-N Spider), 7.44 hp (Hytrel Spider), Keyway Depth 1/8 in, Keyway Width 1/4 in, Bore Diameter 1 1/8 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Screw Thread Size 7/16-14 UNC, Hub Diameter 4 in, Hub Material Grade 1045 -
Jaw Coupling Hub, L190, Steel, 1-3/8"
SKU G6209445CategoriesDescription Shaft Coupler Body, Coupling Size L190, Outside Diameter 4 1/2 in, Coupling Overall Length 4 7/8 in, System of Measurement Inch, Hub Material Carbon Steel, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2.7 hp (Buna-N Spider), 7.44 hp (Hytrel Spider), Keyway Depth 5/32 in, Keyway Width 5/16 in, Bore Diameter 1 3/8 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Screw Thread Size 7/16-14 UNC, Hub Diameter 4 in, Hub Material Grade 1045$126.24 / eachWeb price
Jaw Coupling Hub, L190, Steel, 1-3/8"SKU G6209445CategoriesDescription Shaft Coupler Body, Coupling Size L190, Outside Diameter 4 1/2 in, Coupling Overall Length 4 7/8 in, System of Measurement Inch, Hub Material Carbon Steel, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2.7 hp (Buna-N Spider), 7.44 hp (Hytrel Spider), Keyway Depth 5/32 in, Keyway Width 5/16 in, Bore Diameter 1 3/8 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Screw Thread Size 7/16-14 UNC, Hub Diameter 4 in, Hub Material Grade 1045 -
Jaw Coupling Hub, L190, Steel, 1-5/8"
SKU G6198473CategoriesDescription Shaft Coupler Body, Coupling Size L190, Outside Diameter 4 1/2 in, Coupling Overall Length 4 7/8 in, System of Measurement Inch, Hub Material Carbon Steel, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2.7 hp (Buna-N Spider), 7.44 hp (Hytrel Spider), Keyway Depth 3/16 in, Keyway Width 3/8 in, Bore Diameter 1 5/8 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Screw Thread Size 7/16-14 UNC, Hub Diameter 4 in, Hub Material Grade 1045$126.24 / eachWeb price
Jaw Coupling Hub, L190, Steel, 1-5/8"SKU G6198473CategoriesDescription Shaft Coupler Body, Coupling Size L190, Outside Diameter 4 1/2 in, Coupling Overall Length 4 7/8 in, System of Measurement Inch, Hub Material Carbon Steel, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2.7 hp (Buna-N Spider), 7.44 hp (Hytrel Spider), Keyway Depth 3/16 in, Keyway Width 3/8 in, Bore Diameter 1 5/8 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Screw Thread Size 7/16-14 UNC, Hub Diameter 4 in, Hub Material Grade 1045 -
Jaw Coupling Hub, L190, Steel, 1-7/8"
SKU G6199934CategoriesDescription Shaft Coupler Body, Coupling Size L190, Outside Diameter 4 1/2 in, Coupling Overall Length 4 7/8 in, System of Measurement Inch, Hub Material Carbon Steel, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2.7 hp (Buna-N Spider), 7.44 hp (Hytrel Spider), Keyway Depth 1/4 in, Keyway Width 1/2 in, Bore Diameter 1 7/8 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Screw Thread Size 7/16-14 UNC, Hub Diameter 4 in, Hub Material Grade 1045$126.24 / eachWeb price
Jaw Coupling Hub, L190, Steel, 1-7/8"SKU G6199934CategoriesDescription Shaft Coupler Body, Coupling Size L190, Outside Diameter 4 1/2 in, Coupling Overall Length 4 7/8 in, System of Measurement Inch, Hub Material Carbon Steel, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2.7 hp (Buna-N Spider), 7.44 hp (Hytrel Spider), Keyway Depth 1/4 in, Keyway Width 1/2 in, Bore Diameter 1 7/8 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Straight, Screw Thread Size 7/16-14 UNC, Hub Diameter 4 in, Hub Material Grade 1045 -

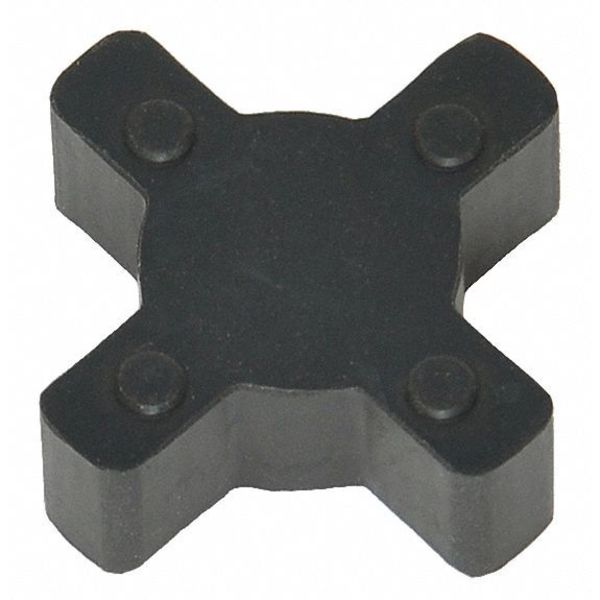

Jaw Coupling Insert, L050, Buna N
SKU G6230296CategoriesDescription Buna N Spider Insert, Coupling Size L050, Outside Diameter 1 1/16 in, System of Measurement Inch, Maximum Speed 18,000 RPM, Horsepower @ 100 RPM 0.04 hp, Spider Material Buna-N, Maximum Torque 26 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Axial Motion 0.015 mm, Angular Misalignment 1 Degrees , Application Close Coupling L-Type, Color Black, Compatible Hub Manufacturer Part Number L050, Fail Safe Yes, For Misalignment Type Angular, Parallel$5.56 / eachWeb price
Jaw Coupling Insert, L050, Buna NSKU G6230296CategoriesDescription Buna N Spider Insert, Coupling Size L050, Outside Diameter 1 1/16 in, System of Measurement Inch, Maximum Speed 18,000 RPM, Horsepower @ 100 RPM 0.04 hp, Spider Material Buna-N, Maximum Torque 26 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Axial Motion 0.015 mm, Angular Misalignment 1 Degrees , Application Close Coupling L-Type, Color Black, Compatible Hub Manufacturer Part Number L050, Fail Safe Yes, For Misalignment Type Angular, Parallel -

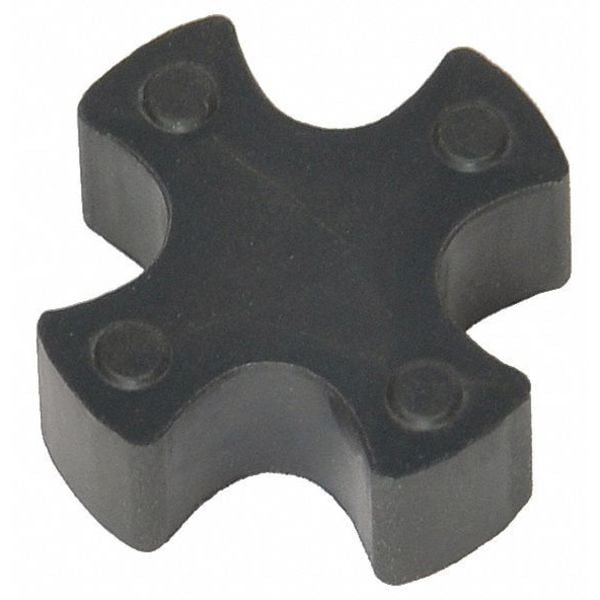

Jaw Coupling Insert, L070, Buna N
SKU G6122121CategoriesDescription Buna N Spider Insert, Coupling Size L070, Outside Diameter 1 23/64 in, System of Measurement Inch, Maximum Speed 14,000 RPM, Horsepower @ 100 RPM 0.07 hp, Spider Material Buna-N, Maximum Torque 43 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Axial Motion 0.015 mm, Angular Misalignment 1 Degrees , Application Close Coupling L-Type, Color Black, Compatible Hub Manufacturer Part Number L070, Fail Safe Yes, For Misalignment Type Angular, Parallel$5.99 / eachWeb price
Jaw Coupling Insert, L070, Buna NSKU G6122121CategoriesDescription Buna N Spider Insert, Coupling Size L070, Outside Diameter 1 23/64 in, System of Measurement Inch, Maximum Speed 14,000 RPM, Horsepower @ 100 RPM 0.07 hp, Spider Material Buna-N, Maximum Torque 43 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Axial Motion 0.015 mm, Angular Misalignment 1 Degrees , Application Close Coupling L-Type, Color Black, Compatible Hub Manufacturer Part Number L070, Fail Safe Yes, For Misalignment Type Angular, Parallel -

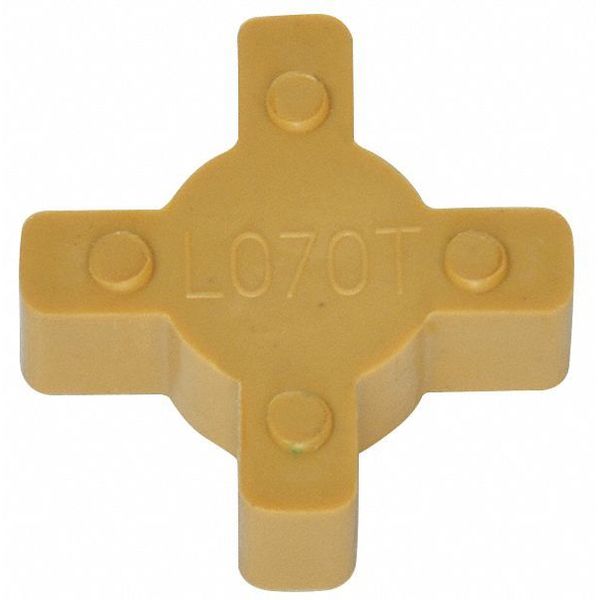

Jaw Coupling Insert, L070, Hytrel
SKU G6174095CategoriesDescription Hytrel Spider Insert, Coupling Size L070, Outside Diameter 1 23/64 in, System of Measurement Inch, Maximum Speed 14,000 RPM, Horsepower @ 100 RPM 0.18 hp, Spider Material Hytrel, Maximum Torque 114 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Axial Motion 0.02 mm, Angular Misalignment 0.5 Degrees , For Minimum Hub Bore 1/4 in, Application Close Coupling L-Type, Color Tan, Compatible Hub Manufacturer Part Number L070, Fail Safe Yes, For Maximum Hub Bore 3/4 in$14.61 / eachWeb price
Jaw Coupling Insert, L070, HytrelSKU G6174095CategoriesDescription Hytrel Spider Insert, Coupling Size L070, Outside Diameter 1 23/64 in, System of Measurement Inch, Maximum Speed 14,000 RPM, Horsepower @ 100 RPM 0.18 hp, Spider Material Hytrel, Maximum Torque 114 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Axial Motion 0.02 mm, Angular Misalignment 0.5 Degrees , For Minimum Hub Bore 1/4 in, Application Close Coupling L-Type, Color Tan, Compatible Hub Manufacturer Part Number L070, Fail Safe Yes, For Maximum Hub Bore 3/4 in -
Jaw Coupling Insert, L075, Buna N
SKU G6166806CategoriesDescription Buna N Spider Insert, Coupling Size L075, Outside Diameter 1 47/64 in, System of Measurement Inch, Maximum Speed 11,000 RPM, Horsepower @ 100 RPM 0.14 hp, Spider Material Buna-N, Maximum Torque 90 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Axial Motion 0.015 mm, Angular Misalignment 1 Degrees , Application Close Coupling L-Type, Color Black, Compatible Hub Manufacturer Part Number L075, Fail Safe Yes, For Misalignment Type Angular, Parallel$7.24 / eachWeb price
Jaw Coupling Insert, L075, Buna NSKU G6166806CategoriesDescription Buna N Spider Insert, Coupling Size L075, Outside Diameter 1 47/64 in, System of Measurement Inch, Maximum Speed 11,000 RPM, Horsepower @ 100 RPM 0.14 hp, Spider Material Buna-N, Maximum Torque 90 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Axial Motion 0.015 mm, Angular Misalignment 1 Degrees , Application Close Coupling L-Type, Color Black, Compatible Hub Manufacturer Part Number L075, Fail Safe Yes, For Misalignment Type Angular, Parallel -
Jaw Coupling Insert, L075, Hytrel
SKU G6089806CategoriesDescription Hytrel Spider Insert, Coupling Size L075, Outside Diameter 1 47/64 in, System of Measurement Inch, Maximum Speed 11,000 RPM, Horsepower @ 100 RPM 0.36 hp, Spider Material Hytrel, Maximum Torque 227 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Axial Motion 0.02 mm, Angular Misalignment 0.5 Degrees , For Minimum Hub Bore 1/4 in, Application Close Coupling L-Type, Color Tan, Compatible Hub Manufacturer Part Number L075, Fail Safe Yes, For Maximum Hub Bore 7/8 in$21.99 / eachWeb price
Jaw Coupling Insert, L075, HytrelSKU G6089806CategoriesDescription Hytrel Spider Insert, Coupling Size L075, Outside Diameter 1 47/64 in, System of Measurement Inch, Maximum Speed 11,000 RPM, Horsepower @ 100 RPM 0.36 hp, Spider Material Hytrel, Maximum Torque 227 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Axial Motion 0.02 mm, Angular Misalignment 0.5 Degrees , For Minimum Hub Bore 1/4 in, Application Close Coupling L-Type, Color Tan, Compatible Hub Manufacturer Part Number L075, Fail Safe Yes, For Maximum Hub Bore 7/8 in -

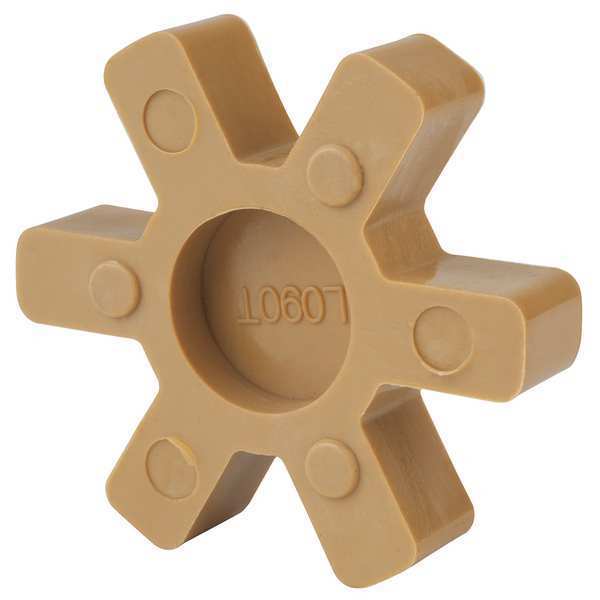

Jaw Coupling Insert, L090/L095, Hytrel
SKU G6152851CategoriesDescription Hytrel Spider Insert, Coupling Size L090, L095, Outside Diameter 2 3/32 in, System of Measurement Inch, Maximum Speed 9,000 RPM, Horsepower @ 100 RPM 0.89 hp, Spider Material Hytrel, Maximum Torque 401 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Axial Motion 0.02 mm, Angular Misalignment 0.5 Degrees , Application Close Coupling L-Type, Color Tan, Compatible Hub Manufacturer Part Number L090, L095, Fail Safe Yes, For Misalignment Type Angular, Parallel$32.99 / eachWeb price
Jaw Coupling Insert, L090/L095, HytrelSKU G6152851CategoriesDescription Hytrel Spider Insert, Coupling Size L090, L095, Outside Diameter 2 3/32 in, System of Measurement Inch, Maximum Speed 9,000 RPM, Horsepower @ 100 RPM 0.89 hp, Spider Material Hytrel, Maximum Torque 401 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Axial Motion 0.02 mm, Angular Misalignment 0.5 Degrees , Application Close Coupling L-Type, Color Tan, Compatible Hub Manufacturer Part Number L090, L095, Fail Safe Yes, For Misalignment Type Angular, Parallel -

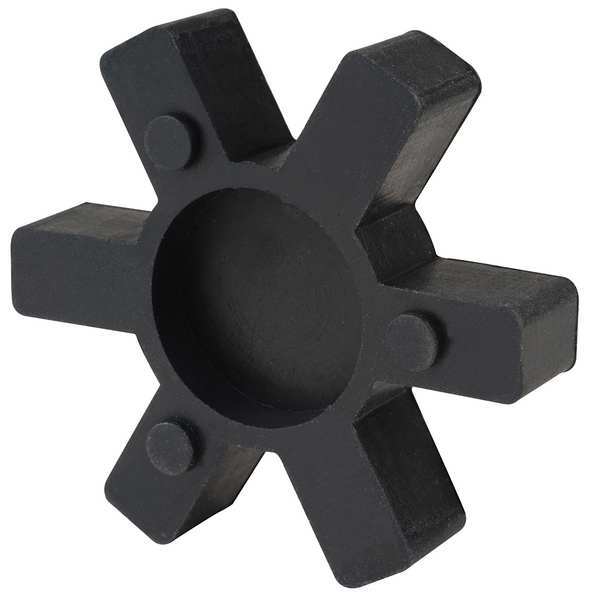

Jaw Coupling Insert, L099/L100, Buna N
SKU G6080681CategoriesDescription Buna N Spider Insert, Coupling Size L099, L100, Outside Diameter 2 17/32 in, System of Measurement Inch, Maximum Speed 7,000 RPM, Horsepower @ 100 RPM 0.66 hp, Spider Material Buna-N, Maximum Torque 318 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Axial Motion 0.015 mm, Angular Misalignment 1 Degrees , Application Close Coupling L-Type, Color Black, Compatible Hub Manufacturer Part Number L099, L100, Fail Safe Yes, For Misalignment Type Angular, Parallel$17.24 / eachWeb price
Jaw Coupling Insert, L099/L100, Buna NSKU G6080681CategoriesDescription Buna N Spider Insert, Coupling Size L099, L100, Outside Diameter 2 17/32 in, System of Measurement Inch, Maximum Speed 7,000 RPM, Horsepower @ 100 RPM 0.66 hp, Spider Material Buna-N, Maximum Torque 318 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Axial Motion 0.015 mm, Angular Misalignment 1 Degrees , Application Close Coupling L-Type, Color Black, Compatible Hub Manufacturer Part Number L099, L100, Fail Safe Yes, For Misalignment Type Angular, Parallel -
Jaw Coupling Insert, L099/L100, Hytrel
SKU G6112057CategoriesDescription Hytrel Spider Insert, Coupling Size L099, L100, Outside Diameter 2 17/32 in, System of Measurement Inch, Maximum Speed 7,000 RPM, Horsepower @ 100 RPM 1.8 hp, Spider Material Hytrel, Maximum Torque 792 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Axial Motion 0.02 mm, Angular Misalignment 0.5 Degrees , For Minimum Hub Bore 7/16 in, Application Close Coupling L-Type, Color Tan, Compatible Hub Manufacturer Part Number L099, L100, Fail Safe Yes, For Maximum Hub Bore 1 3/8 in$54.69 / eachWeb price
Jaw Coupling Insert, L099/L100, HytrelSKU G6112057CategoriesDescription Hytrel Spider Insert, Coupling Size L099, L100, Outside Diameter 2 17/32 in, System of Measurement Inch, Maximum Speed 7,000 RPM, Horsepower @ 100 RPM 1.8 hp, Spider Material Hytrel, Maximum Torque 792 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Axial Motion 0.02 mm, Angular Misalignment 0.5 Degrees , For Minimum Hub Bore 7/16 in, Application Close Coupling L-Type, Color Tan, Compatible Hub Manufacturer Part Number L099, L100, Fail Safe Yes, For Maximum Hub Bore 1 3/8 in -
Jaw Coupling Insert, L110, Buna N
SKU G6216865CategoriesDescription Buna N Spider Insert, Coupling Size L110, Outside Diameter 3 19/64 in, System of Measurement Inch, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 1.3 hp, Spider Material Buna-N, Maximum Torque 792 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Axial Motion 0.015 mm, Angular Misalignment 1 Degrees , Application Close Coupling L-Type, Color Black, Compatible Hub Manufacturer Part Number L110, Fail Safe Yes, For Misalignment Type Angular, Parallel$21.99 / eachWeb price
Jaw Coupling Insert, L110, Buna NSKU G6216865CategoriesDescription Buna N Spider Insert, Coupling Size L110, Outside Diameter 3 19/64 in, System of Measurement Inch, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 1.3 hp, Spider Material Buna-N, Maximum Torque 792 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Axial Motion 0.015 mm, Angular Misalignment 1 Degrees , Application Close Coupling L-Type, Color Black, Compatible Hub Manufacturer Part Number L110, Fail Safe Yes, For Misalignment Type Angular, Parallel -
Jaw Coupling Insert, L110, Hytrel
SKU G6208447CategoriesDescription Hytrel Spider Insert, Coupling Size L110, Outside Diameter 3 19/64 in, System of Measurement Inch, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 3.6 hp, Spider Material Hytrel, Maximum Torque 2,268 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Axial Motion 0.02 mm, Angular Misalignment 0.5 Degrees , For Minimum Hub Bore 5/8 in, Application Close Coupling L-Type, Color Tan, Compatible Hub Manufacturer Part Number L110, Fail Safe Yes, For Maximum Hub Bore 1 5/8 in$66.24 / eachWeb price
Jaw Coupling Insert, L110, HytrelSKU G6208447CategoriesDescription Hytrel Spider Insert, Coupling Size L110, Outside Diameter 3 19/64 in, System of Measurement Inch, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 3.6 hp, Spider Material Hytrel, Maximum Torque 2,268 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Axial Motion 0.02 mm, Angular Misalignment 0.5 Degrees , For Minimum Hub Bore 5/8 in, Application Close Coupling L-Type, Color Tan, Compatible Hub Manufacturer Part Number L110, Fail Safe Yes, For Maximum Hub Bore 1 5/8 in -
Jaw Coupling Insert, L150, Buna N
SKU G6218134CategoriesDescription Buna N Spider Insert, Coupling Size L150, Outside Diameter 3 47/64 in, System of Measurement Inch, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2.0 hp, Spider Material Buna-N, Maximum Torque 1,240 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Axial Motion 0.015 mm, Angular Misalignment 1 Degrees , Application Close Coupling L-Type, Color Black, Compatible Hub Manufacturer Part Number L150, Fail Safe Yes, For Misalignment Type Angular, Parallel$33.99 / eachWeb price
Jaw Coupling Insert, L150, Buna NSKU G6218134CategoriesDescription Buna N Spider Insert, Coupling Size L150, Outside Diameter 3 47/64 in, System of Measurement Inch, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 2.0 hp, Spider Material Buna-N, Maximum Torque 1,240 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Axial Motion 0.015 mm, Angular Misalignment 1 Degrees , Application Close Coupling L-Type, Color Black, Compatible Hub Manufacturer Part Number L150, Fail Safe Yes, For Misalignment Type Angular, Parallel
