Home / 16-14 AWG Nylon Pin Terminal 0.47" Pin Length PK100

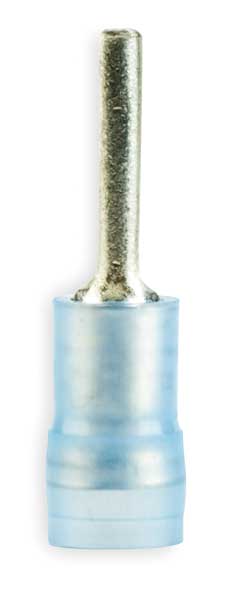

16-14 AWG Nylon Pin Terminal 0.47" Pin Length PK100

SKU
Brand 3M
Categories
Description Pin Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Pin Diameter 0.075 in, Pin Length 0.47 in, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Termination Style Crimp, Barrel Inside Diameter 0.08 in, Barrel Outside Diameter 0.2 in
graingerSKU: 3RWN1, mscSKU: , zoro_no: G0681737, mongo_id: 65bbe99922d7a989a9966ec3

Web Price

$159.99 / each

Qty

Product Details

Barrel Inside Dia. 0.08 in

Barrel Inside Diameter 0.08 in

Barrel Outside Diameter 0.2 in

Barrel Style Insulation Grip

Compatible with Product Type Copper Wires

Connection Material Copper

Connection Type Crimp

Contact Finish Tin

Contact Material Copper

Country of Origin (subject to change) Taiwan, Province of China

For Wire Size 14 AWG, 16 AWG

Insulation Color Blue

Insulation Coverage Partial Coverage

Insulation Material Nylon

Insulation Type Nylon

Material Plastic

Max. Temp. 221 Degrees F

Max. Voltage 600 V

Maximum Insulation Outside Diameter 0.145 in

Maximum Operating Temperature 221 Degrees F

Maximum Operating Temperature (Celsius) 105ÃÂ°C

Maximum Voltage 600 V

Maximum Voltage Rating 600 to 1000V

Maximum Wire Size 14 AWG

Minimum Operating Temperature -40 Degrees F

Minimum Wire Size 16 AWG

Operating Temperature Range (Celsius) -40 to 105ÃÂ°C

Overall Length 0.9 in

Package Quantity 100

Pin Diameter 0.075 in

Pin Length 0.47 in

Pin Length (In.) 0.47

Pin Length (PL) 0.47 in

Ring Type Standard

RoHS Compliant Yes

Seam Brazed

Seam Style Butted

Special Features Funnel-Designed, Seamless Brass Sleeve Offers Easy Insertion of Wires, Provides Quick Connection for Set Screws or Clamps That are Used to Make Electrical Contact

Standards CSA Certified, UL Listed

Terminal Connection Crimp

Terminal Type Pin

Termination Style Crimp

Wire Range 16 to 14 AWG

Wire Size Range 16 AWG - 14 AWG
