Home / Scotchlok Female Disconnect, Yellow, 12-10AWG, PK50

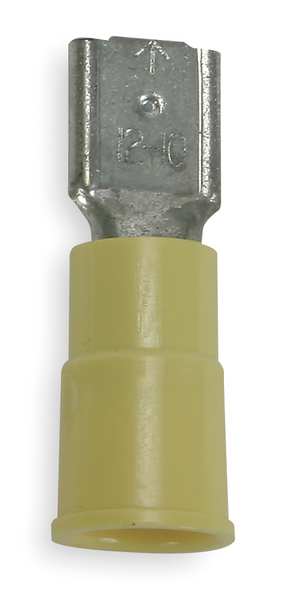

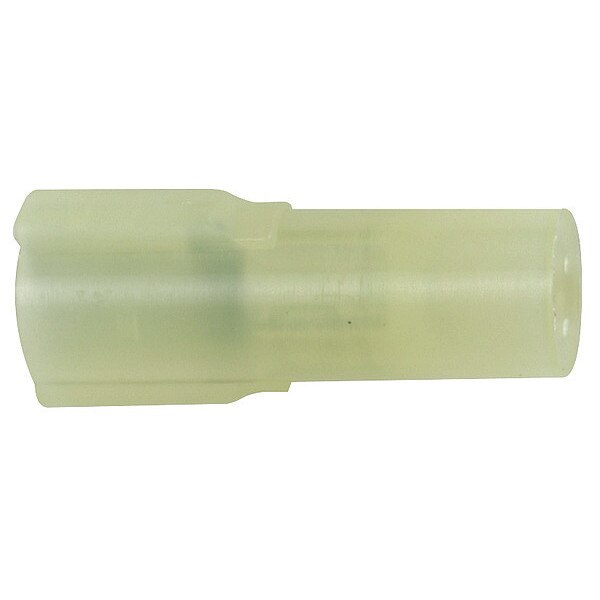

Scotchlok Female Disconnect, Yellow, 12-10AWG, PK50

SKU
Brand 3M
Categories
Description Female Disconnect, Contact Finish Tin, Contact Material Brass, Insulation Color Yellow, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.128 in, Barrel Outside Diameter 0.145 in
graingerSKU: 5X426, mscSKU: , zoro_no: G0810957, mongo_id: 65bbea5e22d7a989a99aea69

Web Price

$82.99 / each

Qty

Product Details

Barrel Inside Dia. 0.128 in

Barrel Inside Diameter 0.128 in

Barrel Length 0.25 in

Barrel Outside Diameter 0.145 in

Barrel Size Standard

Barrel Style Interlocking

Connection Material Tin-Plated Copper

Connection Type Crimp

Connector / Connector Tool Connector

Connector Style Insulation Displacement

Contact Finish Tin

Contact Material Brass

Country of Origin (subject to change) United States

Diameter (D) 0.23 in

Disconnect Type Female

Fastener Orientation Female

For Wire Size 10 AWG, 12 AWG

Insulation Full

Insulation Color Yellow

Insulation Coverage Full Coverage

Insulation Material Nylon

Insulation Type Nylon

Male Tab Width (W') 0.250 in

Material ETP Copper

Mates with Male Tab Width (W') 0.25 in

Max. Temp. 221 Degrees F

Max. Voltage 600 V

Maximum Operating Temperature 221 Degrees F

Maximum Operating Temperature (Celsius) 105ÃÂ°C

Maximum Voltage 600 V

Maximum Wire Size 10 AWG

Minimum Operating Temperature -40 Degrees F

Minimum Wire Size 12 AWG

Overall Diameter 0.23 in

Overall Length 0.99 in

Overall Width 0.37 in

Package Quantity 50

RoHS Compliant Yes

Seam Butted

Seam Style Butted

Special Features Allows for Quick and Easy Disconnect of Wires, Dents and Rolled Edges of this Female Disconnect Terminal Offer Excellent Holding Force

Standards CSA Certified, UL Listed

Tab Size 0.032 in x 0.250 in

Tab Thickness 0.032 in

Tab Width 0.25 in

Terminal Style Fully Insulated

Terminal Type Socket

Terminal Types Female Socket

Termination Style Crimp

Wire Range 12 to 10 AWG

Wire Size Range 12 AWG - 10 AWG
