Home / Tempering Valve, Brass, 4.5 gpm Flow Rate

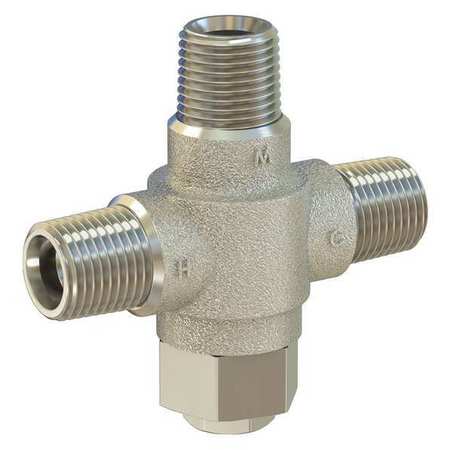

Tempering Valve, Brass, 4.5 gpm Flow Rate

Tempering Valve, Brass, 4.5 gpm Flow Rate

  • Acorn Controls
  • Raw Materials
  • Tempering Valve, Body Material Brass, Flow Rate 4.5 gpm, Inlet Type NPT, Outlet Type NPT, Inlet Size 1/2 in, Outlet Size 1/2 in, Temp. Range 85 Degrees to 115 Degrees F, Max. Pressure 125 psi, Overall Height 3 1/4 in, Overall Width 3 1/4 in, Inlet Temperature (Cold) 35 Degrees to 80 Degrees F, Inlet Temperature (Hot) 120 Degrees to 180 Degrees F, For Use With Lavatories, Standards ASSE 1070, CSA B125.3, Compliance CSA, IAPMO

    graingerSKU: 54EK58, mscSKU: , zoro_no: G7881846, mongo_id: 65bbea1f22d7a989a9998679

Web Price
$96.89 / each

Product Details

ST70CP-12 ACORN
Brass
CSA, IAPMO
1/2 in
1/2 in
Mexico
4.5 gpm
Lavatories
1/2 in
35 Degrees to 80 Degrees F
120 Degrees to 180 Degrees F
NPT
125 psi
1/2 in
NPT
3 1/4 in
3 1/4 in
1
ST70
ASSE 1070, CSA B125.3
85 Degrees to 115 Degrees F
