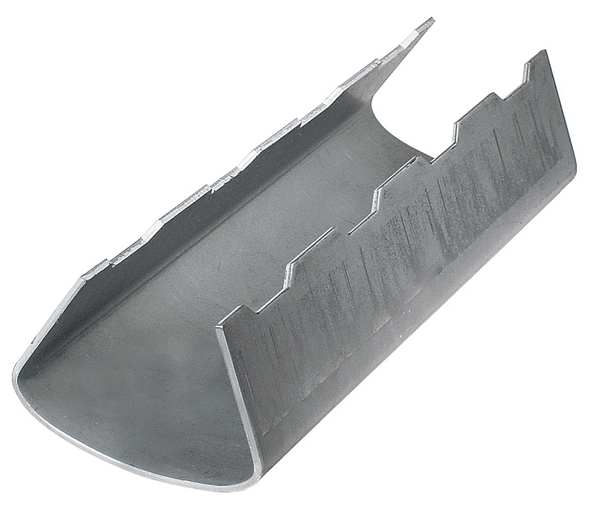

Pipe Covering Protection Saddle, 8 In

Home / Pipe Covering Protection Saddle, 8 In

Pipe Covering Protection Saddle, 8 In

SKU
Brand Anvil
Categories
Description Pipe Protection Saddle, Finish Not Applicable, For Insulation Outside Diameter 8 in, Insulation Thickness Range 2 in, Load Capacity 1,200 lb, Material Steel, Maximum Operating Temperature 650 Degrees F, Mount Type Roller, Overall Length 12 in, For Pipe Size 8 in, Standards ANSI/MSS SP-69, Federal Specification A-A-1192A, Type 39A, Federal Specification A-A-1192A, Type 39B, MSS SP-58, Type 39A, MSS SP-58, Type 39B, WW-H-171-E, Type 40A, WW-H-171-E, Type 40B
graingerSKU: 4LUZ6, mscSKU: , zoro_no: G3406672, mongo_id: 65bbee36526e052139af8ed4

Web Price

$61.74 / each

Qty

Product Details

Application Insulated High Temperature Systems

Country of Origin (subject to change) United States

Features Weather Tight Covering

Finish Not Applicable

For Insulation Outside Diameter 8 in

For Pipe Size 8 in

Insulation Thickness 2 in

Insulation Thickness Range 2 in

Length 12 in

Load Capacity 1,200 lb

Material Steel

Material of Construction Steel

Max. Load (Lb.) 1,800 lb

Maximum Operating Temperature 650 Degrees F

Mount Type Roller

Overall Length 12 in

Package Quantity 1

Pipe Size 8 in

Product Type Pipe Covering Protection Saddle

Standards ANSI/MSS SP-69, Federal Specification A-A-1192A, Type 39A, Federal Specification A-A-1192A, Type 39B, MSS SP-58, Type 39A, MSS SP-58, Type 39B, WW-H-171-E, Type 40A, WW-H-171-E, Type 40B

Standards and Approvals A-A-1192A (Type 39A & 39B), ANSI/MSS SP-69, MSS SP-5 (Type 39A & 39B), WW-H-171-E (Type 40A&40B)
