Inflatable Purge Bladder, 2 In Dia

Home / Inflatable Purge Bladder, 2 In Dia

Inflatable Purge Bladder, 2 In Dia

SKU
Brand Aquasol
Categories Material Handling
Description Inflatable Purge Bladder, Compatible Pipe Diameter (Maximum) 2 in, Harness Length 11 in, Maximum Temperature 250 Degrees F, Gas Flow Rate (Maximum) 30 cfh, Features Connected By a Braided Tube, Reusable, Bladder Design Double Purge Bag System with High Heat Harness, Exterior Bag Material Polyurethane-Coated Nylon, Process Purging Multiple Pipes, Resistance Properties Spark Resistant, Standards CE Approved
graingerSKU: 18C624, mscSKU: , zoro_no: G4408266, mongo_id: 65bbee36526e052139af97a2

Web Price

$482.49 / each

Qty

Product Details

Application MIG/TIG Welding, Purging

Bladder Design Double Purge Bag System with High Heat Harness

Compatible Pipe Diameter (Maximum) 2 in

Country of Origin (subject to change) United States

Diameter 2 in

Exterior Bag Material Polyurethane-Coated Nylon

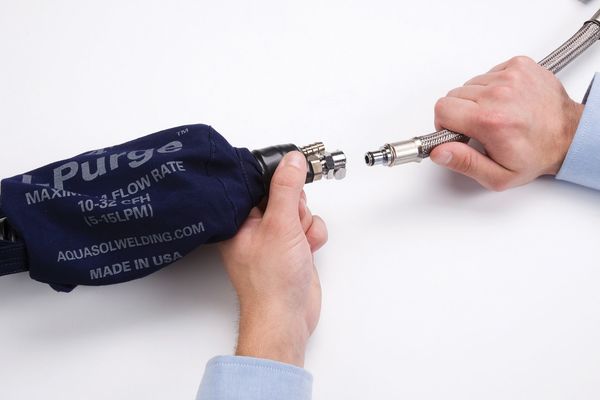

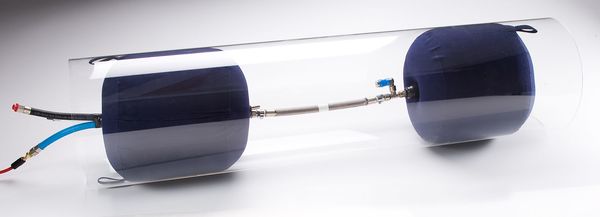

Features I-Purge Is The Reusable, Economical And Long Term Solution For Pipe Purging. I-Purge Inflatable Purge Bladder System Is Comprised Of Two Inflatable Lightweight Polyurethane-coated Nylon Covered Dams, Connected By A Braided Tube. Ideal For Purging Multiple Pipes Of The Same Diameter And Fabrication Applications. Available In Custom Sizes Upon Request. Suitable For Standard Welding Applications Up To 392 Degrees F Or 200 Degrees C. Adjust The Flow Meter To Approximately 10-15 Cfh (5-8 LPM) Initally And Upwards To 30 CFH (15 LPM) During Operation.

For Use With EZ Zone Tape

Gas Flow Rate (Maximum) 30 cfh

Harness Length 11 in

Material Polyurethane-Coated Nylon

Maximum Temperature 250 Degrees F

Package Quantity 1

Process Purging Multiple Pipes

Resistance Properties Spark Resistant

Standards CE Approved
