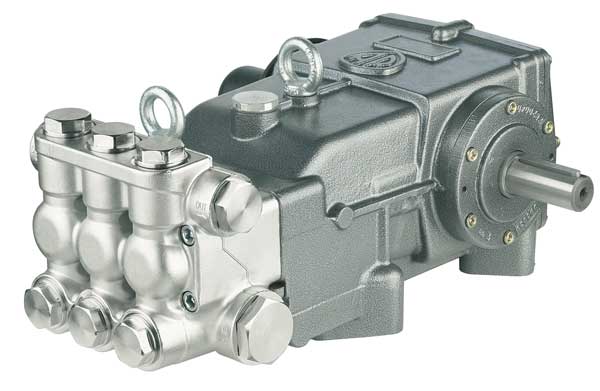

Pressure Washer Pump, 18 GPM, 1 1/2F x 1F

Home / Pressure Washer Pump, 18 GPM, 1 1/2F x 1F

Pressure Washer Pump, 18 GPM, 1 1/2F x 1F

SKU
Brand A.R. North America
Categories Pumps
Description Pressure Plunger Pump, Discharge Connection Size 1 in, Discharge Connection Type BSP, Discharge Pressure (Maximum) 4,000 psi, Flow Rate (Maximum) 18.5 gpm, Intake Connection Size 1 1/2 in, Intake Connection Type BSP, Motor Speed (Maximum) 1,000 RPM, Piston Design Triplex, Pump Head Material Nickel Plated Brass, Plunger Material Ceramic, Required Electric Motor Horsepower (Maximum) 49 2/5 hp, Required Gasoline Engine Horsepower (Maximum) 50 4/5 hp, Lubrication Oil Bath, Shaft Outer Diameter 35 mm
graingerSKU: 4WXX4, mscSKU: , zoro_no: G3360366, mongo_id: 65bbe98822d7a989a995fbc9

Web Price

$7,638.74 / each

Qty

Product Details

Application High Pressure Water Applications, Including Car Wash, Pressure Wash, Sewer Jetting and Cooling Misting

Bearing Type Roller

Bearings Roller

Connecting Rod Bronze

Connecting Rod Material Zinc-Aluminum

Country of Origin (subject to change) Italy

Crankcase Cast Iron

Crankcase Material Cast Iron

Crankshaft Hardened Steel

Crankshaft Material Hardened Steel

Discharge Connection Size 1 in

Discharge Connection Type BSP

Discharge Port 1 in BSP

Discharge Port (In.) 1 Degrees F

Discharge Pressure (Maximum) 4,000 psi

Discharge Pressure (PSI) 4,000

Drive Type Belt-Drive

Driver Type Electric Motor or Gasoline Engine

Flange Type Horizontal Plunger Pump

Flow Capacity (GPM) 18

Flow Rate (Maximum) 18.5 gpm

Flow Rate (Minimum) 1.85 gpm

Height (In.) 9.1 in

HP Required @ 1000 PSI 12.4 hp

HP Required @ 1500 PSI 18.5 hp

HP Required @ 2000 PSI 24.7 hp

HP Required @ 2500 PSI 30.9 hp

HP Required @ 3000 PSI 37.1 hp

HP Required @ 3500 PSI 43.2 hp

HP Required @ 4000 PSI 49.4 hp

HP Required @ 500 PSI 6.2 hp

Hydraulic Motor Flow Rate (Maximum) Not Applicable

Hydraulic Motor Pressure @ 1000 psi Not Applicable

Hydraulic Motor Pressure @ 1500 psi Not Applicable

Hydraulic Motor Pressure @ 2000 psi Not Applicable

Hydraulic Motor Pressure @ 2500 psi Not Applicable

Hydraulic Motor Pressure @ 3000 psi Not Applicable

Hydraulic Motor Pressure @ 500 psi Not Applicable

Inlet Port (In.) 1-1/2 F

Intake Connection Size 1 1/2 in

Intake Connection Type BSP

Length (In.) 22.1 in

Lubrication Oil Bath

Manifold Material Forged Brass

Max. Fluid Temp. (F) 140

Max. Inlet Pressure (PSI) 50

Media Temperature (Maximum) 140 Degrees F

Motor Speed (Maximum) 1,000 RPM

Number of Pistons 3

Operating Pressure (Maximum) 4,000 psi

Overall Height 9.1 in

Overall Length 22.1 in

Overall Width 18.1 in

Package Quantity 1

Piston Design Triplex

Plunger Ceramic

Plunger Material Ceramic

Pump Head Forged Brass

Pump Head Material Nickel Plated Brass

Required Electric Motor Horsepower (Maximum) 49 2/5 hp

Required Gasoline Engine Horsepower (Maximum) 50 4/5 hp

RPM 1,000 RPM

Seal W-1 & W-2

Seal Type Mechanical Type 1, Mechanical Type 2

Shaft 35 mm Solid

Shaft Dia. 35 mm

Shaft Outer Diameter 35 mm

Shaft Type Solid

Suction Port 1 1/2 in BSP

Type Belt-Drive

Width (In.) 18.1 in
