Home / Hot Water Circulating Pump, 1/8 hp, 115V, 1 Phase, Flange Connection

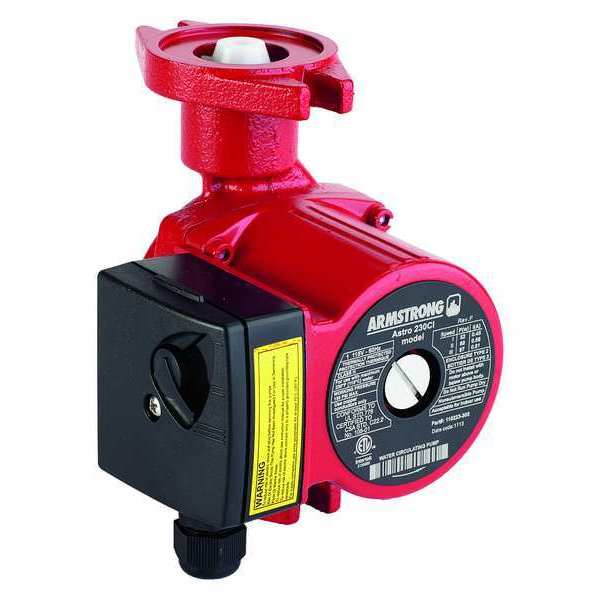

Hot Water Circulating Pump, 1/8 hp, 115V, 1 Phase, Flange Connection

Hot Water Circulating Pump, 1/8 hp, 115V, 1 Phase, Flange Connection

  • Armstrong Pumps
  • Pumps
  • Hydronic Circulating Pump, Compatible Intake Pipe Size 1 1/4 in, Connection Type Flange, Face to Face Dimension 6 3/8 in, Flange or Union Included Yes, For Use With Potable Systems No, Horsepower 1/8, Maximum Feet of Head 18 ft, Maximum Flow Rate @ 10 Feet of Head 9 gpm, Maximum Flow Rate @ 15 Feet of Head 3 gpm, Maximum Flow Rate @ 1 Foot of Head 18 gpm, Nameplate Voltage 115V AC, Number of Speeds 3, Phase Single, Pump Type Multi-Speed, Series Family Astro 2

    graingerSKU: 32UN13, mscSKU: , zoro_no: G8509715, mongo_id: 65bbe77c3aaddbd5a909a589

Web Price
$159.99 / each
Qty

Product Details

0.81 A
8 gpm @ 10 ft
EPDM
1 1/4 in
1 1/4 in
Water
cETL
Flange
Flange
China
Direct
Hardwired
6 3/8 in
3 Speed, Compact, High Performance, Maintenance Free
Yes
No
Hydronic Systems
No
60 Hz
6 3/8 in
1/8
Cast iron
Cast Iron
1/8 hp
Hot Water Circulating Pump
Plastic
(2) Gaskets
1-1/4 in
5 in
Closed
2 yr
2 yr
18 gpm @ 1 ft
150 psi
230 Degrees F
18 ft
18 gpm
9 gpm
3 gpm
14 gpm
[DELETE]
230 Degrees F
150 psi
3,600 RPM
Wet Rotor
0 gpm @ 18 ft
115V AC
2
2
3
6.38 in
5 in
6 in
1
Single
1
ARMSTRONG PUMPS INC. Single Phase
Cast Iron
In Line
Multi-Speed
Wet
3,600 RPM
Astro 230CI
Astro 2
Ceramic
18 ft
ETL, NSF 372
yes
115V AC
115V AC
6 in
