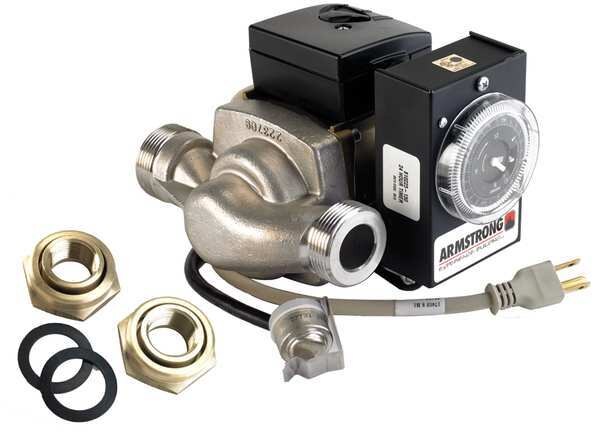

Hot Water Circulator Pump, 1/32 hp, 115, 1 Phase, Sweat Connection

Home / Hot Water Circulator Pump, 1/32 hp, 115, 1 Phase, Sweat Connection

Hot Water Circulator Pump, 1/32 hp, 115, 1 Phase, Sweat Connection

SKU
Brand Armstrong Pumps
Categories Pumps
Description Potable Water Circulating Pump, Compatible Intake Pipe Size 1 1/4 in, Connection Type Sweat, Face to Face Dimension 6 in, For Use With Potable Systems Yes, Horsepower 1/32, Maximum Feet of Head 5 ft, Maximum Flow Rate @ 1 Foot of Head 8 gpm, Nameplate Voltage 115V AC, Number of Speeds 3, Phase Single, Pump Type Multi-Speed, Series Family Astro HWR, Maximum Flow Rate @ 5 Feet of Head 0 gpm, Series Astro 220SSU050S-TA, Amps 0.29 A, Body Gasket Material EPDM, Compatible Discharge Pipe Size 1 1/4 in
graingerSKU: 32UN16, mscSKU: , zoro_no: G8509742, mongo_id: 65bbe92e22d7a989a993c5de

Web Price

$719.99 / each

Qty

Product Details

Amps 0.29 A

Best Efficiency GPM @ Head 4 gpm @ 3 ft

Body Gasket Material EPDM

Compatible Discharge Pipe Size 1 1/4 in

Compatible Intake Pipe Size 1 1/4 in

Compatible Media Type Water

Compliance cETL, Low Lead, NSF-372

Connection Style Sweat

Connection Type Sweat

Country of Origin (subject to change) United States

Drive Type Direct

Face to Face Dimension 6 in

Features 3 Speed, Compact, High Performance, Maintenance Free

Flange/Union Included Yes

For Use With Potable Systems

For Use With Potable Systems Yes

Frequency 60 Hz

Height 6 in

Horsepower 1/32

Housing Material Stainless steel

Housing Material - Pumps Stainless Steel

HP_ 1/32 hp

HVAC Circulating Pump Type Hot Water Circulating Pump

Impeller Material Plastic

Includes (2) Gaskets, 6 ft Power Cord, Sweat Unions

Inlet/Outlet Size 1-1/4 in

Length 7 1/8 in

Loop Configuration Open

Manufacturer Warranty Length 2 yr

Manufacturers Warranty Length 2 yr

Max. GPM @ Head 9.5 gpm @ 0 ft

Max. Operating Pressure 150 psi

Max. Temp. 230 Degrees F

Maximum Feet of Head 5 ft

Maximum Flow Rate @ 1 Feet of Head 8 gpm

Maximum Flow Rate @ 10 Feet of Head 8 gpm

Maximum Flow Rate @ 5 Feet of Head 0 gpm

Maximum Flow Rate @ 50 Feet of Head [DELETE]

Maximum Media Temperature 230 Degrees F

Maximum Operating Pressure 150 psi

Maximum RPM 3,600 RPM

Mechanical Seal Wet Rotor

Min. GPM @ Head 0 gpm @ 6 ft

Nameplate Voltage 115V AC

Number of Speeds 3

Overall Height 6 in

Overall Length 7.13 in

Overall Width 6.13 in

Package Quantity 1

Phase Single

Phase - Pumps 1

Phase and Brand ARMSTRONG PUMPS INC. Single Phase

Pump Housing Material Stainless Steel

Pump Mount In Line

Pump Type Multi-Speed

Rotor Type Wet

RPM 3,600 RPM

Series Astro 220SSU050S-TA

Series Family Astro HWR

Shaft Material Ceramic

Shut-Off 6 ft

Standards ETL, NSF 372

Thermal Protection yes

Voltage 115V AC

Voltage - Pumps 115V AC

Width 6 1/8 in
