Home / Hydronic Circulating Pump, Flanged, 1/6HP

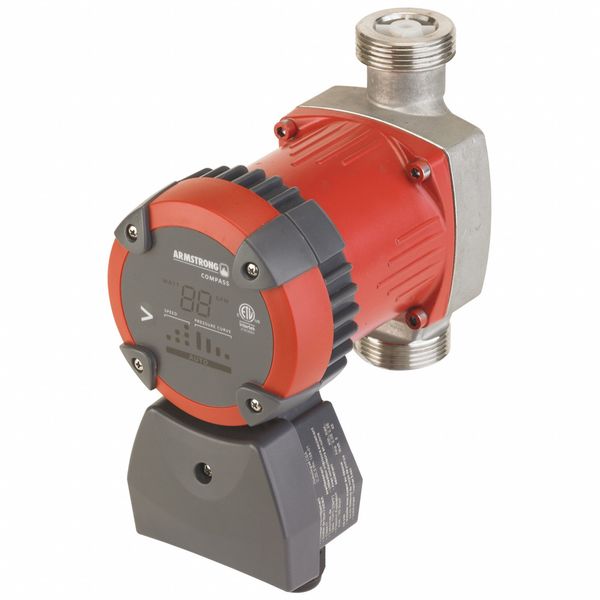

Hydronic Circulating Pump, Flanged, 1/6HP

Hydronic Circulating Pump, Flanged, 1/6HP

  • Armstrong Pumps
  • Pumps
  • Hydronic Circulating Pump, Compatible Intake Pipe Size 1 1/2 in, Connection Type Flange, Face to Face Dimension 6 1/2 in, Flange or Union Included No, For Use With Potable Systems No, Horsepower 1/6, Maximum Feet of Head 40 ft, Maximum Flow Rate @ 10 Feet of Head 39 gpm, Maximum Flow Rate @ 15 Feet of Head 27 gpm, Maximum Flow Rate @ 1 Foot of Head 42 gpm, Nameplate Voltage 230V AC, Number of Speeds Variable, Phase Single, Pump Type Energy Efficient, Series Family Compass R
Web Price
$2,459.99 / each
Qty

Product Details

4.4 A
EPDM
1 1/2 in
1 1/2 in
30% Glycol, Water
Flange
United States
Hardwired
6 1/2 in
No
Hydronic Systems
No
60 Hz
1/6
Plastic
Thermal Overload Protection
2.5 yr
40 ft
42 gpm
39 gpm
27 gpm
36 gpm
23 gpm
19 gpm
0 gpm
41 gpm
[DELETE]
230 Degrees F
175 psi
4,000 RPM
-4 Degrees F
Open Drip-Proof
230V AC
2
2
Variable
6.5 in
11.46 in
6.38 in
1
Single
ARMSTRONG PUMPS INC. Single Phase
Ductile Iron
Horizontal
Energy Efficient
Dry
Compass R4045DI-8.5X2 (230V)
Compass R
CSA, ETL
240V AC
Ductile Iron
