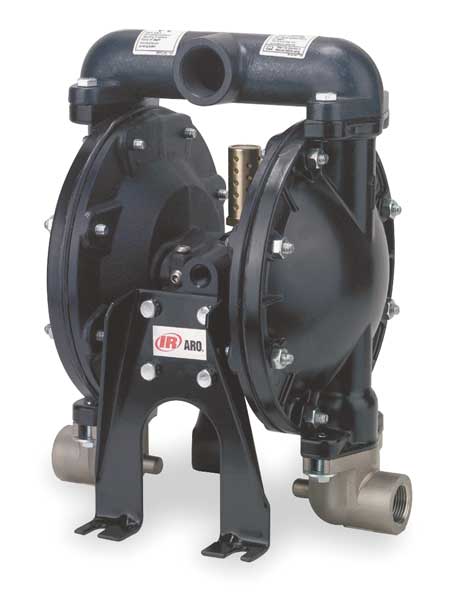

Double Diaphragm Pump, Aluminum, Air Operated, Nitrile, 35 GPM

Home / Double Diaphragm Pump, Aluminum, Air Operated, Nitrile, 35 GPM

Double Diaphragm Pump, Aluminum, Air Operated, Nitrile, 35 GPM

SKU
Brand Aro
Categories Pumps
Description Double Diaphragm Pump, Air Consumption (Maximum) 45 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material Buna-N, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 41 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3/4 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Media Intake Connection Size 3/4 in, Media Intake Connection Type NPTF, Media Intake Location Center
graingerSKU: 5XA67, mscSKU: 60600426, zoro_no: G1117654, mongo_id: 65bbe77a3aaddbd5a9099381

Web Price

$1,629.99 / each

Qty

Product Details

Agency Compliance ATEX, CE, REACH, RoHS

Air Consumption (Maximum) 45 scfm

Air Inlet 1/4 in NPTF

Air Inlet Size 1/4 in FNPT

Air Intake Connection Size 1/4 in

Air Intake Connection Type NPT

Air Intake Pressure (Maximum) 200 psi

Ball Material Acetal

Body Material Aluminum

Check Seat Material Polypropylene

Chemical Compatibility Antifreeze, Water

Connection Style NPT

Country of Origin (subject to change) United States

Diaphragm Material Buna-N

Diaphragm Material - Pumps Nitrile

Feet of Head (Maximum) 289 ft

Flow Rate (Maximum) 41 gpm

Flow Rate @ 10 psi Not Applicable

Flow Rate @ 100 psi 40 gpm

Flow Rate @ 120 psi 41 gpm

Flow Rate @ 15 psi Not Applicable

Flow Rate @ 20 psi Not Applicable

Flow Rate @ 30 psi Not Applicable

Flow Rate @ 40 psi 30 gpm

Flow Rate @ 50 psi 33.8 gpm

Flow Rate @ 60 psi 36 gpm

Flow Rate @ 70 psi 37.5 gpm

Flow Rate @ 80 psi 38.75 gpm

Flow Rate @ 90 psi 39.5 gpm

Fluid Connection Size 3/4 in

Fluid Connection Type NPT

Fluid Discharge Connection 3/4 in NPTF

Fluid Intake Connection 3/4 in NPTF

For Use With Potable Systems No

Height 11 3/4 in

Housing Material Aluminum

Housing Material - Pumps Aluminum

Includes Acetal Balls, Aluminum Outlet Manifold, Nitrile Diaphragms, Stainless Steel Inlets

Inlet/Outlet Size 3/4 in

Item - Air Operated Pumps Double Diaphragm Pump

Length 15 1/4 in

Manifold Connection Single Port

Manifold Connection Type NPT

Manufacturers Warranty Length 5 yr

Max. Dia. Solids 1/8 in

Max. Flow 35 gpm

Max. Flow GPM 35 gpm

Max. Operating Pressure 120 psi

Max. Temp - Pumps 150 Degrees F

Max. Temp. 150 Degrees F

Media Discharge Connection Size 3/4 in

Media Discharge Connection Type NPTF

Media Discharge Location Center

Media Discharge Size 3/4 in

Media Discharge Type NPTF

Media Intake Connection Size 3/4 in

Media Intake Connection Type NPTF

Media Intake Location Center

Media Intake Size 3/4 in

Media Intake Type NPTF

Media Temperature (Maximum) 159 Degrees F

Nameplate Voltage N

Non-Wetted Housing Material Aluminum

Operating Pressure (Maximum) 120 psi

Operation Type Air Operated

Overall Height 11.8 in

Overall Length 15.3 in

Overall Size 15.3 in x 17.9 in x 11.8 in

Overall Width 17.9 in

Package Quantity 1

Port Location Center Center

Priming Self-Priming

Pump Assembly Type Bolt

Pump Operation Type Air

Self-Priming Dry 20 ft

Self-Priming Wet 30 ft

Series Family Specialty

Solid Diameter (Maximum) 0.13 in

Standards ATEX Certified

Valve Material Acetal

Valve Type Ball

Viscosity (Maximum) 40,000 cps

Wetted Housing Material Aluminum

Width 17 7/8 in
