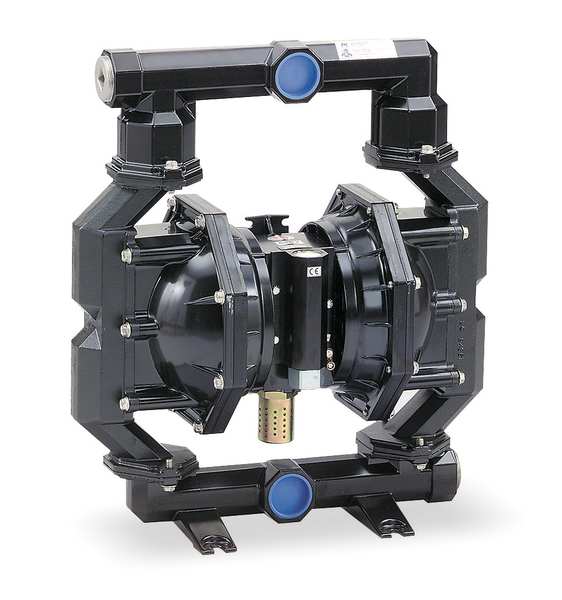

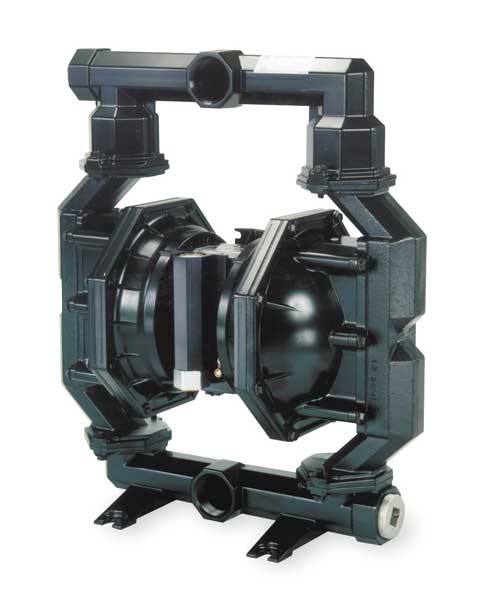

Double Diaphragm Pump, Aluminum, Air Operated, Santoprene, 160 GPM

Home / Double Diaphragm Pump, Aluminum, Air Operated, Santoprene, 160 GPM

Double Diaphragm Pump, Aluminum, Air Operated, Santoprene, 160 GPM

SKU
Brand Aro
Categories Pumps
Description Double Diaphragm Pump, Air Consumption (Maximum) 140 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material Santoprene, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 178 gpm, Manifold Connection Single Port, Media Discharge Connection Size 2 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Side, Media Intake Connection Size 2 in, Media Intake Connection Type NPTF
graingerSKU: 4RN43, mscSKU: , zoro_no: G2501633, mongo_id: 65bbe7a03aaddbd5a90a7b34

Web Price

$4,923.74 / each

Qty

Product Details

Agency Compliance ATEX, CE, REACH, RoHS

Air Consumption (Maximum) 140 scfm

Air Inlet 3/4 in NPTF

Air Inlet Size 3/4 in FNPT

Air Intake Connection Size 3/4 in

Air Intake Connection Type NPT

Air Intake Pressure (Maximum) 120 psi

Ball Material Santoprene(R)

Body Material Aluminum

Check Seat Material 316 Stainless Steel

Chemical Compatibility Alcohol, Antifreeze, Diesel Exhaust Fluid, Water

Connection Style NPT

Country of Origin (subject to change) United States

Diaphragm Material Santoprene

Diaphragm Material - Pumps Santoprene(R)

Feet of Head (Maximum) 289 ft

Flow Rate (Maximum) 178 gpm

Flow Rate @ 10 psi Not Applicable

Flow Rate @ 100 psi 162.5 gpm

Flow Rate @ 120 psi 178 gpm

Flow Rate @ 15 psi Not Applicable

Flow Rate @ 20 psi Not Applicable

Flow Rate @ 30 psi Not Applicable

Flow Rate @ 40 psi 100 gpm

Flow Rate @ 50 psi 119 gpm

Flow Rate @ 60 psi 130.4 gpm

Flow Rate @ 70 psi 138 gpm

Flow Rate @ 80 psi 150.25 gpm

Flow Rate @ 90 psi 157.6 gpm

Fluid Connection Size 2 in

Fluid Connection Type NPT

Fluid Discharge Connection 2 in NPTF

Fluid Intake Connection 2 in NPTF

For Use With Potable Systems No

Height 26 1/4 in

Housing Material Aluminum

Housing Material - Pumps Aluminum

Inlet/Outlet Size 2 in

Item - Air Operated Pumps Double Diaphragm Pump

Length 23 3/16 in

Manifold Connection Single Port

Manifold Connection Type NPT

Manufacturers Warranty Length 5 yr

Max. Dia. Solids 2 in

Max. Flow 160 gpm

Max. Flow GPM 160 gpm

Max. Operating Pressure 120 psi

Max. Temp - Pumps 200 Degrees F

Max. Temp. 200 Degrees F

Media Discharge Connection Size 2 in

Media Discharge Connection Type NPTF

Media Discharge Location Center, Side

Media Discharge Size 2 in

Media Discharge Type NPTF

Media Intake Connection Size 2 in

Media Intake Connection Type NPTF

Media Intake Location Center, Side

Media Intake Size 2 in

Media Intake Type NPTF

Media Temperature (Maximum) 225 Degrees F

Media Temperature (Minimum) -40 Degrees F

Mounting Hardware Material Stainless Steel

Nameplate Voltage N

Non-Wetted Housing Material Aluminum

Operating Pressure (Maximum) 120 psi

Operation Type Air Operated

Overall Height 26.3 in

Overall Length 23.2 in

Overall Size 23.2 in x 21.6 in x 26.3 in

Overall Width 21.6 in

Package Quantity 1

Port Location Center Side, Side Center, Side Side

Priming Self-Priming

Pump Assembly Type Bolt

Pump Operation Type Air

Self-Priming Dry 14 ft

Series PF20X

Series Family Specialty

Solid Diameter (Maximum) 2 in

Standards ATEX Certified, CE, REACH, RoHS

Valve Material Santoprene

Valve Type Ball

Viscosity (Maximum) 50,000 cps

Wetted Housing Material Aluminum

Width 21 5/8 in
