Home / Hot Water Circulating Pump, 1 1/2 hp, 208-230/460VAC, 3 Phase, Flange Connection

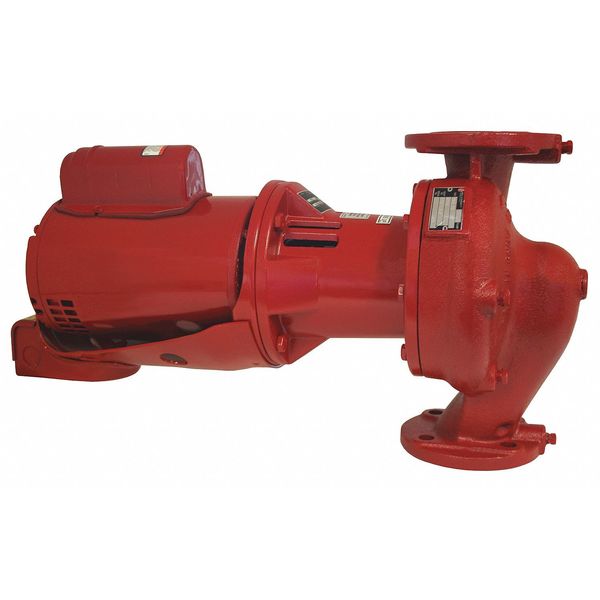

Hot Water Circulating Pump, 1 1/2 hp, 208-230/460VAC, 3 Phase, Flange Connection

Hot Water Circulating Pump, 1 1/2 hp, 208-230/460VAC, 3 Phase, Flange Connection

  • Bell & Gossett
  • Pumps
  • Hydronic Circulating Pump, Compatible Intake Pipe Size 1 1/2 in, Connection Type Flange, Face to Face Dimension 13 1/2 in, Flange or Union Included Yes, For Use With Potable Systems Yes, Horsepower 1 1/2, Maximum Feet of Head 46 ft, Nameplate Voltage 208-230/460V AC, Number of Speeds 1, Phase Three, Pump Type 3-Piece, Series Family E-60, Maximum Flow Rate @ 25 Feet of Head 95 gpm, Maximum Flow Rate @ 30 Feet of Head 90 gpm, Maximum Flow Rate @ 40 Feet of Head 70 gpm, Series E617T, Amps 2.4/4.8 A

    graingerSKU: 422W73, mscSKU: , zoro_no: G5206980, mongo_id: 65bbe7a43aaddbd5a90a8cf7

Web Price
$6,229.13 / each
Qty

Product Details

2.4/4.8 A
67 gpm @ 40 ft
Cellulose Fiber
1 1/2 in
Water
CSA, NSF-372
Flange
Flange
United States
Direct
13 1/2 in
Dimensional Interchangeability with Legacy Series 60, Leading Hydraulic Efficiency, Upgraded Unitized Mechanical Seal
Yes
Yes
Potable Systems
Yes
13 1/2 in
1 1/2
Cast iron
Cast Iron
1 1/2 hp
Hot Water Circulating Pump
Bronze
1-1/2 in
21 5/8 in
Closed
3 yr
3 yr
90 gpm @ 30 ft
175 psi
250 Degrees F
46 ft
95 gpm
90 gpm
70 gpm
225 Degrees F
175 psi
1,750 RPM
EPR/Carbon/Silicon Carbide
20 gpm @ 46 ft
-10 Degrees F
208-230/460V AC
1
13.5 in
21.63 in
9.5 in
1
Three
3
BELL & GOSSETT Three Phase
Cast Iron
In Line
3-Piece
1,750 RPM
E617T
E-60
Steel
46 ft
ISO 9001
No
208-240/460V AC
208 to 230/460V AC
9 1/2 in
