Home / HVAC Circulating Pump, 1 hp, 115/208-230, 1 Phase, Flange Connection

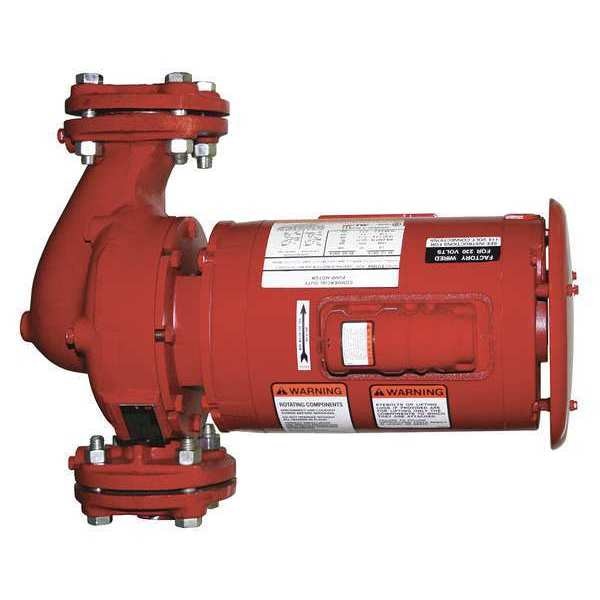

HVAC Circulating Pump, 1 hp, 115/208-230, 1 Phase, Flange Connection

HVAC Circulating Pump, 1 hp, 115/208-230, 1 Phase, Flange Connection

  • Bell & Gossett
  • HVAC & Refrigeration, Pumps
  • Hydronic Circulating Pump, Compatible Intake Pipe Size 3 in, Connection Type FNPT, Face to Face Dimension 12 in, For Use With Potable Systems No, Horsepower 1, Maximum Feet of Head 28 ft, Nameplate Voltage 115/208-230V AC, Phase Single, Series Family E-90, Series E9018S, Amps 7.7 to 7.6/15.2, Compatible Discharge Pipe Size 3 in, Compatible Media Type Water

    graingerSKU: 34TJ96, mscSKU: , zoro_no: G9108136, mongo_id: 65bbe72f3aaddbd5a907dc01

Web Price
$2,181.99 / each
Qty

Product Details

7.7 to 7.6/15.2
Double Ball
3 in
3 in
Water
Flange
FNPT
United States
Continuous
12 in
Hydronic Systems
No
NEMA 56J
18 1/4 in
1
Bronze Fitted
Bronze Fitted
1 hp
Hydronic Circulating Pump
60
ASTM
Closed
3
3
3 in
12 in
1 yr
1 yr
197 gpm @ 10 ft
175 psi
28 ft
200 Degrees F
175 psi
100 Degrees F
40 Degrees C
ODP
Open Drip-Proof
1725
56J
115/208-230V AC
3
18.25 in
14.13 in
8 in
1
Single
1
BELL & GOSSETT Single Phase
Vertical/Horizontal
Closed Couple In Line Centrifugal Pump
EPR, Carbon, Silicon Carbide
E9018S
E-90
Stainless Steel
28 ft
NEMA
115/208-240V AC
115/208 to 230V AC
8 in
