Home / HVAC Circulating Pump, 1/2 hp, 115V/208V-230V, 1 Phase, Flange Connection

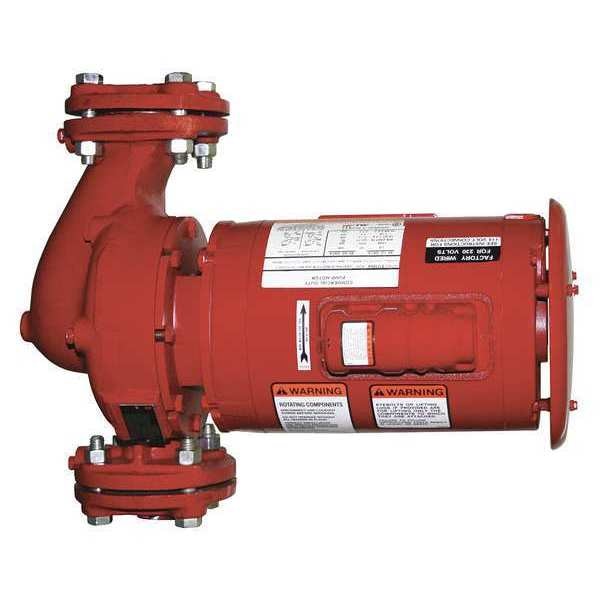

HVAC Circulating Pump, 1/2 hp, 115V/208V-230V, 1 Phase, Flange Connection

HVAC Circulating Pump, 1/2 hp, 115V/208V-230V, 1 Phase, Flange Connection

  • Bell & Gossett
  • HVAC & Refrigeration, Pumps
  • Hydronic Circulating Pump, Connection Type FNPT, Face to Face Dimension 11 1/2 in, For Use With Potable Systems No, Horsepower 1/2, Maximum Feet of Head 26 ft, Nameplate Voltage 115/208-230V AC, Phase Single, Pump Type In Line Centrifugal, Series Family E-90, Series E9009S, Amps 8.9/4.4 to 4.5, Compatible Media Type Water

    graingerSKU: 34TJ87, mscSKU: , zoro_no: G9108041, mongo_id: 65bbe7a43aaddbd5a90a8cf8

Web Price
$2,927.49 / each
Qty

Product Details

8.9/4.4 to 4.5
54 gpm @ 22 ft
Water
Flange
FNPT
United States
Direct
11 1/2 in
Yes
Hydronic Systems
No
16 1/4 in
1/2
Bronze Fitted
Bronze Fitted
1/2 hp
Hydronic Circulating Pump
Cast Bronze
1-1/2 in
11 1/2 in
1 yr
1 yr
97 gpm @ 9 ft
175 psi
225 Degrees F
26 ft
200 Degrees F
175 psi
EPR/Carbon/Silicon Carbide
14 gpm @ 6 ft
100 Degrees F
Open Drip-Proof
115/208-230V AC
16.25 in
13 in
7.88 in
1
Single
1
BELL & GOSSETT Single Phase
In Line
Vertical/Horizontal
In Line Centrifugal
1,725 RPM
E9009S
E-90
303 Stainless Steel
26 ft
NEMA
yes
115/208-240V AC
115/208 to 230V AC
7 7/8 in
