Home / HVAC Circulating Pump, 1/6 hp, 115V, 1 Phase, Flange Connection

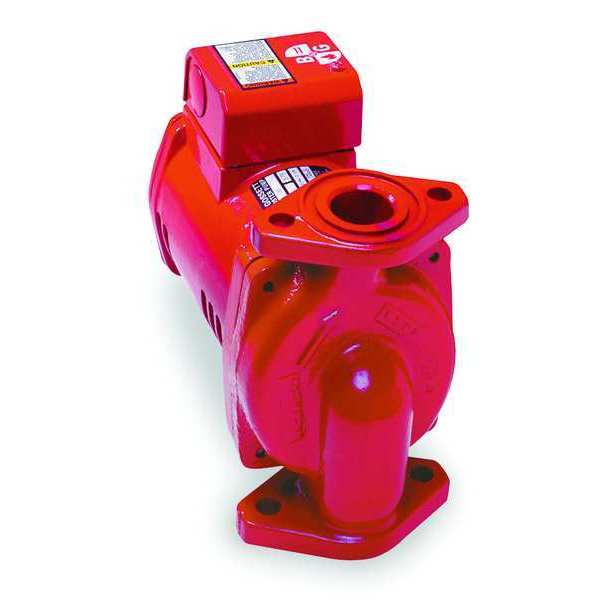

HVAC Circulating Pump, 1/6 hp, 115V, 1 Phase, Flange Connection

HVAC Circulating Pump, 1/6 hp, 115V, 1 Phase, Flange Connection

  • Bell & Gossett
  • HVAC & Refrigeration, Pumps
  • Hydronic Circulating Pump, Compatible Intake Pipe Size 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 8 1/2 in, Flange or Union Included No, For Use With Potable Systems Yes, Horsepower 1/6, Maximum Feet of Head 17 ft, Maximum Flow Rate @ 10 Feet of Head 40 gpm, Maximum Flow Rate @ 15 Feet of Head 20 gpm, Maximum Flow Rate @ 1 Foot of Head 58 gpm, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Pump Type Standard, Series Family PL

    graingerSKU: 4JA86, mscSKU: 07498801, zoro_no: G1116367, mongo_id: 65bbe94f22d7a989a994ab5f

Web Price
$690.99 / each
Qty

Product Details

1.8 A
35 gpm @ 12 ft
1 in, 1 1/4 in, 1 1/2 in
1 in, 1 1/4 in, 1 1/2 in
Flange
Flange
United States
Direct
8 1/2 in
No
No
Potable Systems
Yes
60 Hz
1/6
Cast iron
Cast Iron
1/6 hp
Hydronic Circulating Pump
Plastic
Auto Thermal Protection
1 in to 1-1/2 in
9 1/8 in
Closed
1 yr
1 yr
58 gpm @ 1 ft
150 psi
225 Degrees F
17 ft
58 gpm
40 gpm
20 gpm
50 gpm
[DELETE]
225 Degrees F
150 psi
3,300 RPM
Maintenance Free
20 gpm @ 15 ft
Totally Enclosed Fan-Cooled
115V AC
1
8.5 in
9.13 in
4.5 in
1
Single
1
BELL & GOSSETT Single Phase
Cast Iron
Nonmetallic
Standard
Dry
3,300 RPM
PL-50
PL
Carbon/Silicon Carbide
17 ft
UL Listed
Auto
115V AC
115V AC
4 5/8 in
