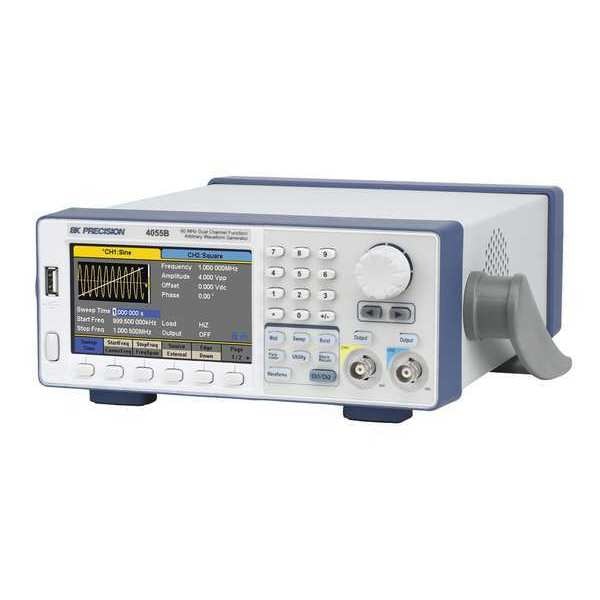

Signal Generator, 4.5" Color LCD, 30 MHz

SKU
Brand B&K Precision
Categories Safety
Description Signal Generator, Function/Arbitrary Waveform, Sine Wave Range 1 uHz to 30 MHz, Square Wave Range 1 uHz to 30 MHz, Other Waveform Range Arbitrary 1 uHz to 12.5 MHz, Pulse 1 uHz - 12 MHz, Triangle Ramp 1 uHz to 500 kHz, Sine Wave Distortion DC - 10 MHz Less Than -60 dBc, 10 MHz to 30 MHz Less Than -50 dBc, Sq. Wave Rise/Fall Time (nS) Less Than 12 ns (10 Percent-90 Percent) At Full Amplitude Into 50 ohm

Web Price

$1,252.49 / each

Qty

Product Details

AM Modulation Internal/External

Country of Origin (subject to change) China

Display 4.5 in Color LCD

FM Modulation Internal/External

Frequency Dial Accuracy (%) 0-100

Impedance (Ohms) 50

Includes AC Power Cord, USB Type A-To-Type B Cable, Certificate of Calibration

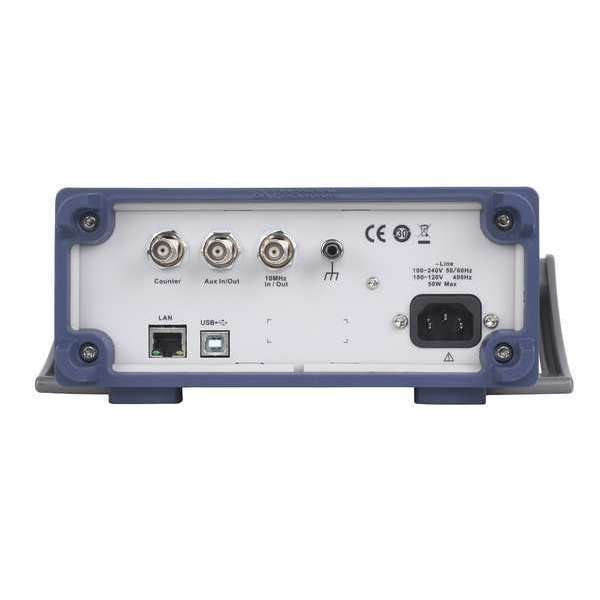

Interface LAN, USBTMC (Standard), GPIB (Optional), USB Host Port

Manufacturers Warranty Length 3 yr

Other Types of Modulation AM, DSB-AM, ASK, FM, FSK, PM, PSK, PWM

Other Waveform Range Triangle Ramp 1 u Hz to 500 k Hz, Pulse 1 u Hz - 12 M Hz, Arbitrary 1 u Hz to 12.5 M Hz

Output Amplitude 2 mVpp to 10 Vpp Into 50 ohm (4 mVpp to 20 Vpp Into Open Circuit), 10 MHz 2 mVpp to 5 Vpp Into 50 ohm (4 mVpp - 10 Vpp Into Open Circuit)

Output Attenuation +/-0.3dB

Package Quantity 1

Power Source AC Line Input (115/230 V AC, 50/60 Hz)

Sine Wave Distortion DC - 10 MHz Less Than -60 dBc, 10 MHz to 30 MHz Less Than -50 dBc

Sine Wave Range 1 uHz to 30 MHz

Sine Wave Range (MHz) 1 uHz to 30 MHz

Sine/Square Wave Accuracy +/-25 PPM (1 yr)

Sq. Wave Rise/Fall Time (nS) Less Than 12 ns (10%-90%) At Full Amplitude Into 50 ohm

Square Wave Range 1 uHz to 30 MHz

Square Wave Range (MHz) 1 uHz to 30 MHz

Sweep Linear and Logarithmic, Up or Down

Sweep Range Waveform Range Dependent
