Home / 1" NPT Brass Spring Check Valve
1

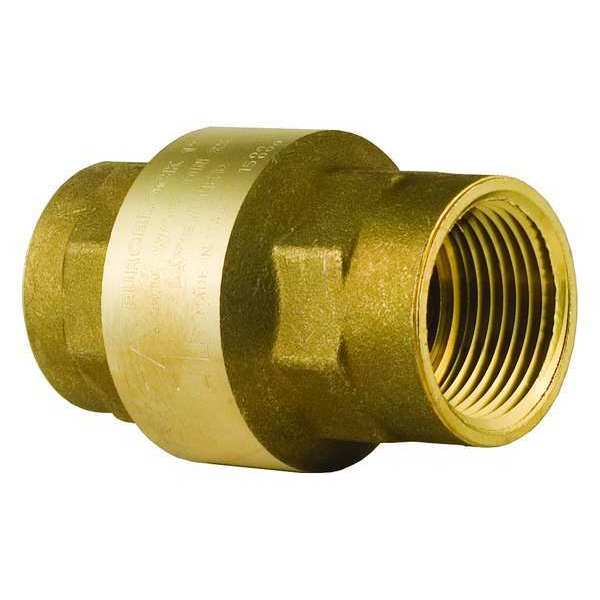

1" NPT Brass Spring Check Valve

  • Bonomi
  • Raw Materials
  • Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Spring, Body Material - Valves Brass, Pipe or Tube Size 1 in, Connection Type FNPT x FNPT, Cracking Pressure 0.5 psi, Mounting Orientation Horizontal, Vertical, Max. Temp. - Valves 210 Degrees F, Min. Temp. - Valves 10 Degrees F, Max. Water Pressure - Valves 400 psi, Max. Steam Pressure - Valves Not Rated, Seat Material NBR, Spring Material Stainless Steel, Flow - Valves 15.95 gpm, Full Flow - Valves Yes

    graingerSKU: 45RF31, mscSKU: , zoro_no: G2011436, mongo_id: 65bbe7fc9a749db82276b13c

Web Price
$36.61 / each
Qty

Product Details

General Purpose
Lead Free Brass
Brass
FNPT
FNPT x FNPT
Italy
0.500 psi
0.5 psi
15.95 gpm
Single
Yes
Check Valve
2 55/64 in
Brass
400 psi WOG
Not Rated
210 Degrees F
400 psi
Inline Spring
10 Degrees F
Horizontal, Vertical
Horizontal, Vertical
1 15/16 in
1
1 in
1 in
1
Viton
NBR
NBR
1
Stainless Steel
Stainless Steel
NSF-61/NSF 372
Check Valve
Brass
1 15/16 in
