Home / 1" x 21/64" Violet Wire Marking Sleeves, 3PS-187-2-VT-2

1" x 21/64" Violet Wire Marking Sleeves, 3PS-187-2-VT-2

SKU
Brand Brady
Categories
Description Precut Label Roll, For Print Method Thermal-Transfer, Resistance Properties Chemical-Resistant, Cold-Resistant, Corrosion-Resistant, Fade-Resistant, Flame-Resistant, Humidity-Resistant, Smear-Resistant, UV-Resistant, Weather-Resistant, Material Series B-342, Double-Sided Printable Yes, Label Material Polyolefin, Maximum Wire Diameter 0.95 in, Minimum Wire Diameter 0.38 in, Maximum Wire Gauge 1 AWG, Minimum Wire Gauge 500 AWG, Compatible Grainger Part Number 30DA02, 30DA42, 30DA43
graingerSKU: 31DZ47, mscSKU: , zoro_no: G6724121, mongo_id: 65bbea6522d7a989a99b10a4

Web Price

$2,054.99 / each

Qty

Product Details

Adhesive Non-Adhesive

Adhesive Material Not Applicable

Application Wire and Cable Labeling

Color Violet ( Matte )

Compatible Mfr Part Number IP-R6600, IP-R6700-WT, R6600, R6700-WT

Core Diameter 3 in

Country of Origin (subject to change) United States

Double-Sided Printable Yes

For Print Method Thermal-Transfer

For Use With Thermal Transfer Printers

For Wire Diameter 0.375 in to 0.95 in

For Wire Gauge 1 AWG to 500 AWG

Height 21/64 in

Label Attachment Style Heat Shrink Sleeve

Label Color Violet

Label Color & Finish - Heat-Shrink Cable & Wire Labels Violet ( Matte )

Label Finish Matte

Label Height 1 in

Label Material Polyolefin

Label Media Format Precut Roll

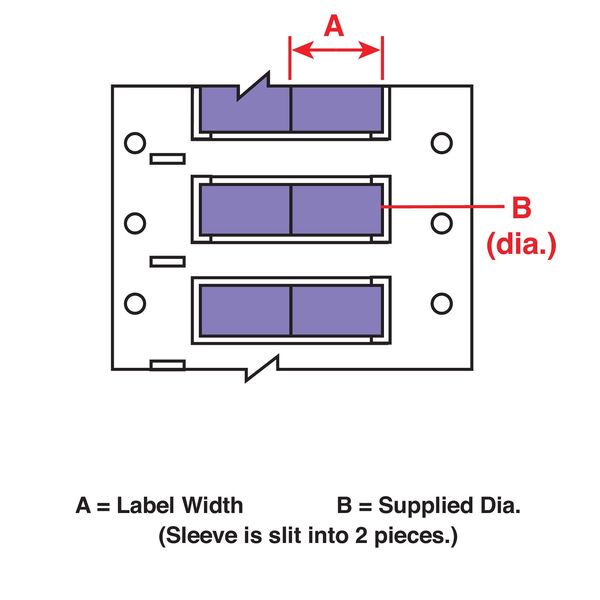

Label Size (HxW) - Heat-Shrink Cable & Wire Labels 3/16 in x 1 in

Label Width 3/16 in

Labels per Roll 5,000

Labels per Row 2

Legend None

Material Brady B-342 Heat Shrink Polyolefin Double-Sided Print

Material Properties Heat-Shrinkable

Material Series B-342

Max. Lines of Print Varies

Max. Wire Size 0.15 in

Maximum Service Temperature 275 Degrees F

Maximum Wire Diameter 0.95 in

Maximum Wire Gauge 1 AWG

Min. Wire Size 0.062 in

Minimum Service Temperature -67 Degrees F

Minimum Wire Diameter 0.38 in

Minimum Wire Gauge 500 AWG

Package Quantity 1

Printer Series Compatibility BBP72, i5100, i7100, IP Series, THT

Product Type Wire Marking Sleeve

Recommended Ribbon IP-R6600, IP-R6700-WT, R6600, R6700-WT

Resistance Properties Chemical-Resistant, Cold-Resistant, Corrosion-Resistant, Fade-Resistant, Flame-Resistant, Humidity-Resistant, Smear-Resistant, UV-Resistant, Weather-Resistant

Shrink Ratio 3:1

Standards MIL-STD-202, RoHS Compliant, SAE-AMS-DTL-23053, SAE-AS-81531, UL Recognized

Temp. Range -67 Degrees to 275 Degrees F

Width 1 in
