Home / Pool Pump Motor, Permanent Split Capacitor, 1/2 HP, 56J Frame, 3,450 Nameplate RPM

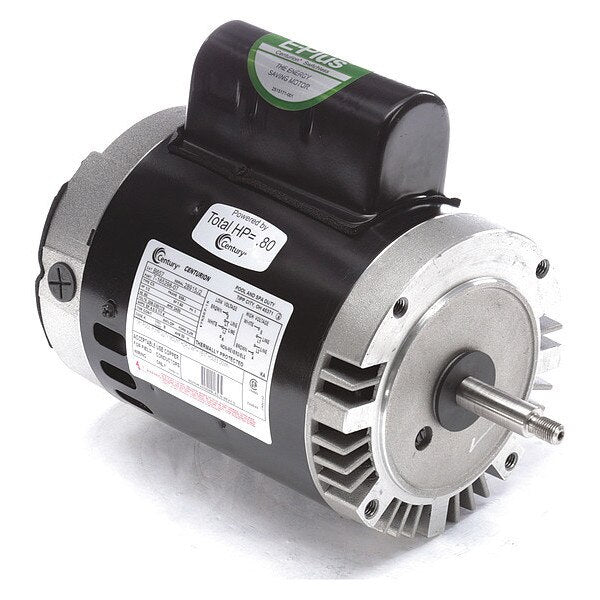

Pool Pump Motor, Permanent Split Capacitor, 1/2 HP, 56J Frame, 3,450 Nameplate RPM

Pool Pump Motor, Permanent Split Capacitor, 1/2 HP, 56J Frame, 3,450 Nameplate RPM

  • Century
  • Pumps
  • Pool Pump Motor, Body Dia. 6.6 in, Bolt Circle Dia. 5 13/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Black, Frame 56J, Hz 60, Full Load Amps 7.4/4.0-3.7, Height 11 in, HP 1/2 hp, Ins. Class B, Length Less Shaft 9 3/8 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 7.4, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Energy Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
Web Price
$367.89 / each

Product Details

50 Degrees C
Pool/Spa Motor
6.6 in
5 13/16 in
F3
Mexico
Continuous
Black
56J
7.4/4.0-3.7
11 in
1/2 hp
60
B
9 3/8 in
50 Degrees C
7.4
Pump
Ball
Permanent Split Capacitor
Energy Efficient
Open Dripproof
Aluminum
Steel
Horizontal
Face
1.6
Threaded
CCWSE
Pool and Spa Pump
Auto
3,450
1
11 15/16 in
1
Single
3,001-3,600
Threaded 7/16-20 UNF-2A RH
5/8 in
5/8
2 5/8 in
303 Stainless Steel
CSA (LR4642), UL (E14663)
No
Yes
115/208-230V AC
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
29 lb
