Pool Pump Motor, Permanent Split Capacitor, 2 HP, 56J Frame, 3,450 Nam

Home / Pool Pump Motor, Permanent Split Capacitor, 2 HP, 56J Frame, 3,450 Nameplate RPM

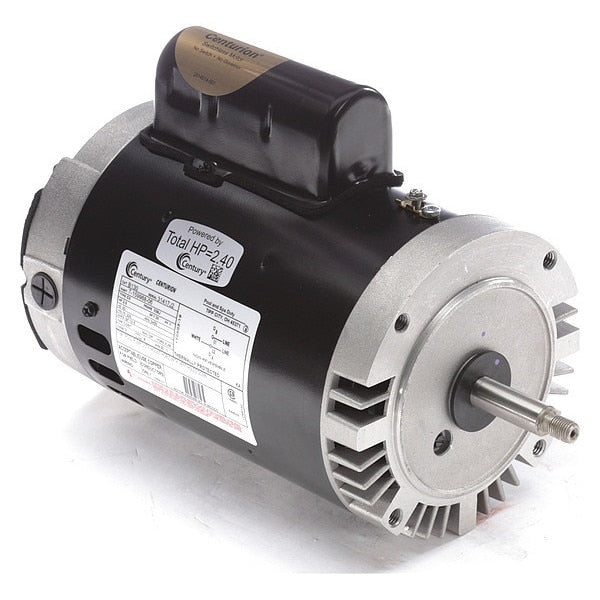

Pool Pump Motor, Permanent Split Capacitor, 2 HP, 56J Frame, 3,450 Nameplate RPM

SKU
Brand Century
Categories Pumps
Description Pool Pump Motor, Body Dia. 6.5 in, Duty Cycle Continuous, Finish Black, Frame 56J, Hz 60, Full Load Amps 10.5, Height 9 1/8 in, HP 2 hp, Ins. Class B, Length Less Shaft 10 1/2 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 10.5, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
graingerSKU: 5PB71, mscSKU: , zoro_no: G1760193, mongo_id: 65bbe7c23aaddbd5a90b319f

Web Price

$611.24 / each

Qty

Product Details

Ambient Temperature 50 Degrees C

Body Dia. 6.5 in

Country of Origin (subject to change) Thailand

Duty Cycle Continuous

Finish Black

Frame 56J

Full Load Amps 10.5

Height 9 1/8 in

HP_ 2 hp

Hz_ 60

Ins. Class B

Length Less Shaft 10 1/2 in

Max. Ambient Temp. 50 Degrees C

Max. SF Amps 10.5

Motor Application Pump

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Efficiency Group Standard Efficient

Motor Enclosure Design Open Dripproof

Motor Flange Material Aluminum

Motor Frame Material Steel

Motor Mounting Type Face

Motor Service Factor 1.2

Motor Shaft Design Threaded

Motor Shaft Rotation CCWSE

Motor Sub Application Pool and Spa Pump

Motor Thermal Protection Auto

Nameplate RPM 3,450

No. of Speeds 1

Overall Length 13 1/8 in

Package Quantity 1

Phase Single

RPM Range 3,001-3,600

Shaft Threaded 7/16-20 UNF-2A RH 11/16 in From End

Shaft Dia. 5/8 in

Shaft Dia. (In.) 5/8

Shaft Length 2 1/2 in

Shaft Material 303 Stainless Steel

Standards CSA (LR43341/LR94643), UL (E44549/E25022), UL 1081 Approvable

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC

Weight 29 lb
