Home / Pool Pump Motor, Permanent Split Capacitor, 3/4 HP, 56Y Frame, 3,450 Nameplate RPM

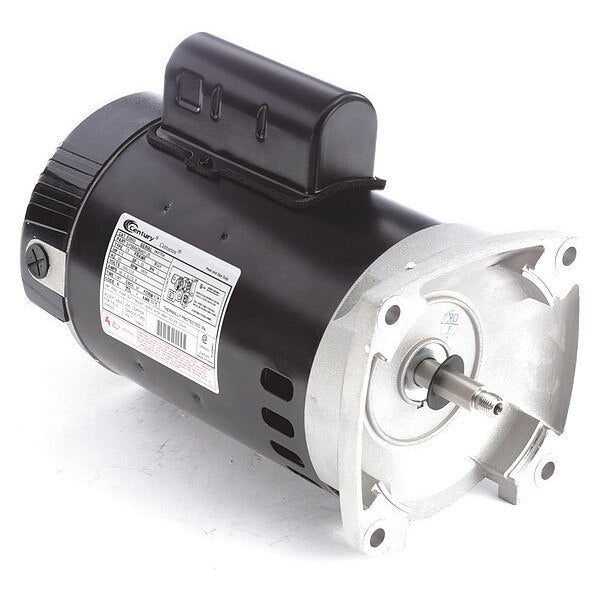

Pool Pump Motor, Permanent Split Capacitor, 3/4 HP, 56Y Frame, 3,450 Nameplate RPM

Pool Pump Motor, Permanent Split Capacitor, 3/4 HP, 56Y Frame, 3,450 Nameplate RPM

  • Century
  • Pumps
  • Pool Pump Motor, Bolt Circle Dia. 7 1/16 in, Conduit Box Position F3, Duty Cycle Continuous, Finish Black, Frame 56Y, Hz 60, Full Load Amps 10.8/5.4, Height 9 in, HP 3/4 hp, Ins. Class F, Length Less Shaft 11 1/2 in, Max. Ambient Temp. 50 Degrees C, Max. SF Amps 10.8, Motor Application Pump, Motor Bearings Ball, Motor Design Permanent Split Capacitor, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel

    graingerSKU: 16U447, mscSKU: , zoro_no: G4482581, mongo_id: 65bbe74f3aaddbd5a90880f9

Web Price
$358.74 / each
Qty

Product Details

50 Degrees C
Pool/Spa Motor
7 1/16 in
F3
Thailand
Continuous
Black
56Y
10.8/5.4
9 in
3/4 hp
60
F
11 1/2 in
50 Degrees C
10.8
Pump
Ball
Permanent Split Capacitor
Standard Efficient
Open Dripproof
Aluminum
Steel
Horizontal
Face
1.25
Threaded
CCWSE
Pool and Spa Pump
Auto
3,450
1
12 3/8 in
1
Single
3,001-3,600
Threaded 1/2-20 UNF-2A RH
5/8 in
5/8
1 in
Stainless Steel
CSA, UL
No
No
115/230V AC
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
21 lb
