Home / Motor, Hydraulic, 3.6 cu in/rev, 2 Bolt

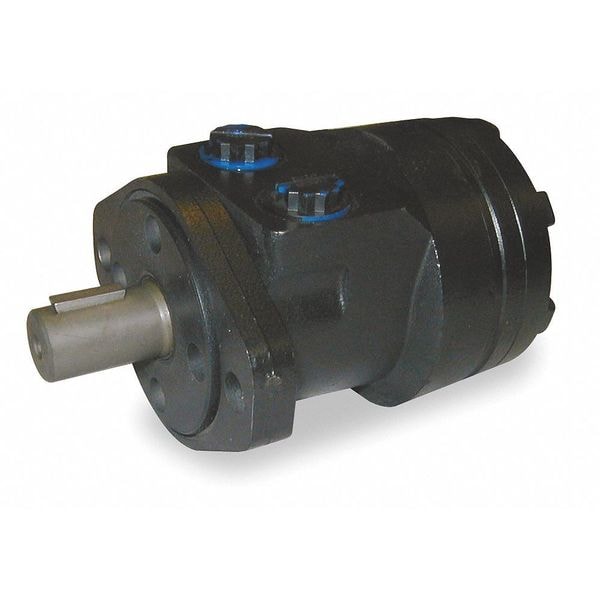

Motor, Hydraulic, 3.6 cu in/rev, 2 Bolt

Motor, Hydraulic, 3.6 cu in/rev, 2 Bolt

  • Char-Lynn
  • Lifting and Hydraulics
  • Hydraulic Motor, 3.6 cu in/rev Displacement, Continuous Torque 943 in-lb, Flange Mount 2 Bolt, 3.25 in Pilot, 7/8 In.-14 O-ring Port Size, Side Port Location, Shaft Dia. 1 in, Min. Oil Viscosity 70 SUS, Max. RPM 962 RPM, Pressure Rating 2000 psi, Shaft Type Keyed, Max. Oil Temp. 180 Degrees F, Shaft Length 1.75 in, Length 5.48 in, Height 5.17 in, Mounting Plate Width 5.17 in

    graingerSKU: , mscSKU: , zoro_no: G3057083, mongo_id: 65bbe8bc22d7a989a9910e39

Web Price
$701.24 / each
Qty

Product Details

943 in-lb
United States
3.6 cu in/rev
3.6
2 Bolt, 3.25 in Pilot
5.17 in
5.17
5.48 in
5.48
180 Degrees F
180
962 RPM
70 SUS
5.17 in
1
Side
7/8-14 O-ring
7/8-14 UNF
Side
2000 psi
2000
H
1 in
1
1.75 in
1.75
Keyed
5.17
