Home / Motor, Hydraulic, 9.7 cu in/rev, 2 Bolt

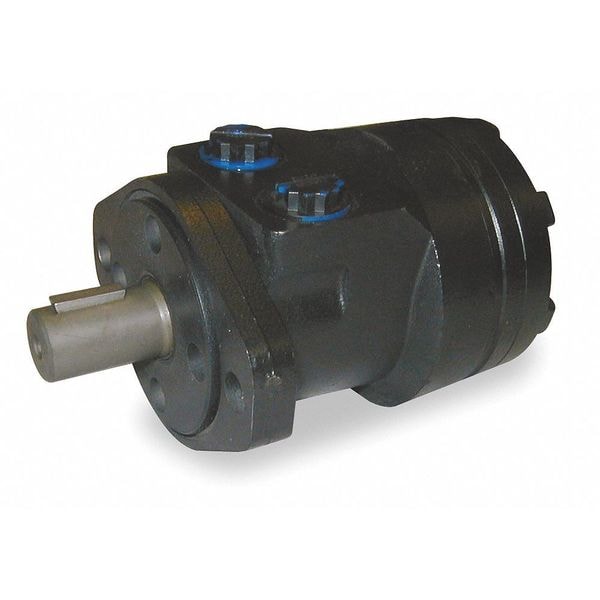

Motor, Hydraulic, 9.7 cu in/rev, 2 Bolt

Motor, Hydraulic, 9.7 cu in/rev, 2 Bolt

  • Char-Lynn
  • Lifting and Hydraulics
  • Hydraulic Motor, 9.7 cu in/rev Displacement, Continuous Torque 2,059 in-lb, Flange Mount 2 Bolt, 3.25 in Pilot, 7/8 In.-14 O-ring Port Size, Side Port Location, Shaft Dia. 1 in, Min. Oil Viscosity 100 SUS, Max. RPM 353 RPM, Pressure Rating 1650 psi, Shaft Type Keyed, Max. Oil Temp. 180 Degrees F, Shaft Length 1.75 in, Length 6.06 in, Height 5.17 in, Mounting Plate Width 5.17 in

    graingerSKU: , mscSKU: , zoro_no: G2172082, mongo_id: 65bbe89622d7a989a990291a

Web Price
$538.74 / each
Qty

Product Details

2,059 in-lb
United States
9.7 cu in/rev
9.7
2 Bolt, 3.25 in Pilot
5.17 in
5.17
6.06 in
6.06
180 Degrees F
180
353 RPM
100 SUS
5.17 in
1
Side
7/8-14 O-ring
7/8-14 UNF
Side
1650 psi
1650
H
1 in
1
1.75 in
1.75
Keyed
5.17
