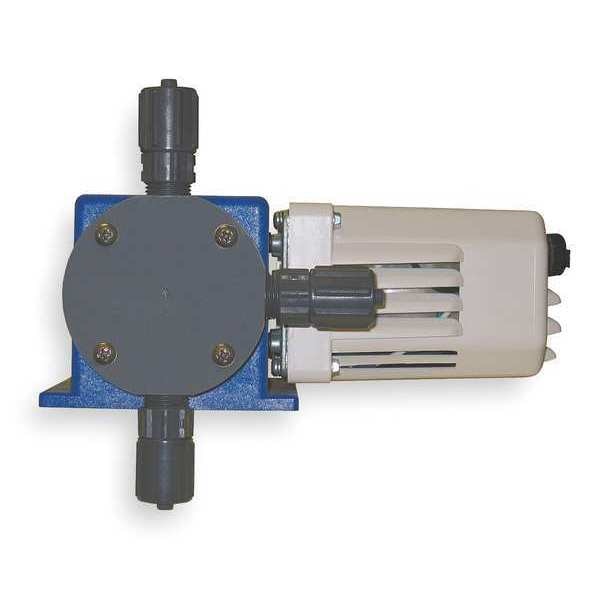

Diaphragm Metering Pump, 30 GPD, 100 PSI

Home / Diaphragm Metering Pump, 30 GPD, 100 PSI

Diaphragm Metering Pump, 30 GPD, 100 PSI

SKU
Brand Chem-Tech
Categories Pumps
Description Chemical Metering Pump, Chemical Compatibility Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10 Percent, Hydrochloric Acid 20 Percent, Hydrochloric Acid 30 Percent, Hydrochloric Acid 40 Percent, Phosphoric Acid 40 Percent, Potassium Hydroxide 50 Percent, Sodium Hydroxide 20 Percent, Sodium Hydroxide 50 Percent, Sodium Hydroxide 80 Percent, Sulfuric Acid 10 Percent, Water, Control Programs Manual Control, Diaphragm Material CSPE, PTFE, Viton, Discharge Connection Size 3/8 in
graingerSKU: 2YE50, mscSKU: , zoro_no: G0308892, mongo_id: 65bbe7439a749db82272b211

Web Price

$577.49 / each

Qty

Product Details

Ball Material Ceramic

Ball Material - Pumps Ceramic

Body Material Acrylic/ABS

Body Material - Pumps Acrylic/ABS

Check Ball Material Ceramic

Chemical Compatibility Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Phosphoric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sulfuric Acid 10%, Water

Chemical Metering Pump Type Diaphragm

Control Programs Manual Control

Cord Length 6 ft

Country of Origin (subject to change) United States

Degassing Valve Included Yes

Diaphragm Material CSPE, PTFE, Viton

Discharge Connection Size 3/8 in

Discharge Connection Type Tube

Duty Cycle Continuous

Features Degassing

Fitting Material PVC

Flow Rate (Maximum) 30 gpd

Flow Rate (Minimum) 3 gpd

Flow Rate Output Control Adjustable

Frequency 60 Hz

Head and Fitting Material PVC

Head and Fitting Material - Pumps PVC

Head Material PVC

Height 5 in

Horsepower (Maximum) 1/60 hp

Housing Material ABS, Acrylic

HP - Pumps 1/60 hp

Hz_ 60

Includes 16 ft Tubing, Valve/Strainer/Weight and Injection/Back Pressure Valve Assembly

Intake Connection Size 3/8 in

Intake Connection Type Tube

Item - Chemical Metering Pumps Chemical Metering Pump

Length 8 7/8 in

Max. Flow (gpd) - Pumps 30.00 gpd

Max. Flow Rate 30 gpd

Max. Pressure 100 psi

Max. Pressure - Pumps 100 psi

Max. Strokes per Minute 51 stroke/min

Max. Viscosity 300 cps

Max. Viscosity - Pumps 300 cps

Media Temperature (Maximum) 104 Degrees F

Min. Flow Rate 3 gpd

Motor HP 1/60

Motor RPM 51 RPM

Motor Speed (Maximum) 51 RPM

Nameplate Voltage 115/230V AC

Number of Feeds 1

Operating Pressure (Maximum) 100 psi

Overall Height 7.3 in

Overall Length 8.8 in

Overall Width 7.4 in

Package Quantity 1

Phase Single

Phase - Pumps 1

Priming Self-Priming

Pump Drive Type Electric Motor

Pump Type Diaphragm

Reproducibility +/-2.0%

Reproducibility - Pumps +/-2.0%

Seal Material CSPE

Seals and O-Rings CSPE

Seals and O-Rings - Pumps CSPE

Self-Priming Yes

Standards cETLus Listed, ETL

Stroke Rate (Maximum) 51 stroke/min

Suction Lift 4 ft

Tubing Material PVC/Polyethylene

Turn Down Ratio 10:1

Turn Down Ratio - Pumps 10:1

Viscosity (Maximum) 300 cps

Voltage 115

Voltage - Pumps 115V AC

Width 7 3/8 in
