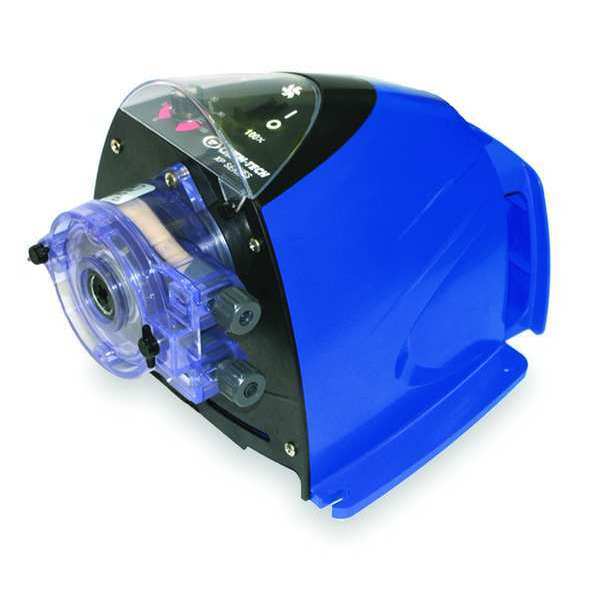

Metering Pump, 30 GPD, 80 PSI

Home / Metering Pump, 30 GPD, 80 PSI

Metering Pump, 30 GPD, 80 PSI

SKU
Brand Chem-Tech
Categories Pumps
Description Chemical Metering Pump, Chemical Compatibility Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10 Percent, Hydrochloric Acid 20 Percent, Hydrochloric Acid 30 Percent, Oils, Phosphoric Acid 40 Percent, Potassium Hydroxide 50 Percent, Sodium Hydroxide 20 Percent, Sodium Hypochlorite 10 Percent, Sodium Hypochlorite 20 Percent, Sodium Hypochlorite 5 Percent, Sulfuric Acid 10 Percent, Sulfuric Acid 20 Percent, Water, Control Programs Manual Control, Discharge Connection Size 1/4 in
graingerSKU: 3HHF4, mscSKU: , zoro_no: G1142102, mongo_id: 65bbe7439a749db82272b212

Web Price

$818.74 / each

Qty

Product Details

Ambient Temperature (Maximum) 104 Degrees F

Ball Material TFE

Body Material ABS

cc/Min. 78.85 cc/min

Chemical Compatibility Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Oils, Phosphoric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Water

Chemical Metering Pump Type Peristaltic

Control Programs Manual Control

Cord Length 6 ft

Country of Origin (subject to change) United States

Degassing Valve Included Yes

Discharge Connection Size 1/4 in

Discharge Connection Type Tube

Features Adustable Rate, High Presure

Fitting Material PVC

Flow Rate (Maximum) 30 gpd

Flow Rate (Minimum) 1.5 gpd

Flow Rate Output Control Adjustable

Frequency 60 Hz

Head and Fitting Material PVC

Head and Fitting Material - Pumps PVC

Head Material PVC

Height 8 1/4 in

Horsepower (Maximum) 4/25 hp

Housing Material ABS

HP - Pumps 1/6 hp

Hz_ 60

Includes Injection Assembly, Rain Hood, Spare Tube Assembly and 15 ft of Suction/Discharge Tubing, Strainer

Intake Connection Size 1/4 in

Intake Connection Type Tube

Item - Chemical Metering Pumps Chemical Metering Pump

Length 10 29/32 in

Max. Discharge Pressure 80 psi

Max. Flow (gpd) - Pumps 30.00 gpd

Max. Flow Rate 30 gpd

Max. Pressure 80 psi

Max. Pressure - Pumps 80 psi

Max. Viscosity 300 cps

Max. Viscosity - Pumps 300 cps

Media Temp. Range 104 Degrees F

Media Temperature (Maximum) 104 Degrees F

Metering Reproducibility +/-2.0%

Min. Flow Rate 3 gpd

Motor HP 1/6

Motor Mounting Type Horizontal

Motor RPM 30 RPM

Motor Speed (Maximum) 30 RPM

Nameplate Voltage 115V AC

Number of Feeds Single Head

Overall Height 8.3 in

Overall Length 10.9 in

Overall Width 9.8 in

Package Quantity 1

Phase Single

Phase - Pumps 1

Pressure (Maximum) 80 psi

Priming Self-Priming

Pump Type Peristaltic

Reproducibility +/-2.0%

Reproducibility - Pumps +/-2.0%

Seal Material CSPE

Seal Type O-Ring

Seals and O-Rings CSPE

Seals and O-Rings - Pumps CSPE

Self-Priming Yes

Standards cETL, ETL, ETL Sanitary, NSF 61 Certified

Suction Lift 24 ft

Tubing Material Neoprene

Tubing Material - Peristaltic Pumps Norprene

Turn Down Ratio 20:1

Turn Down Ratio - Pumps 20:1

Viscosity (Maximum) 300 cps

Voltage 115

Voltage - Pumps 115V AC

Width 9 13/16 in
