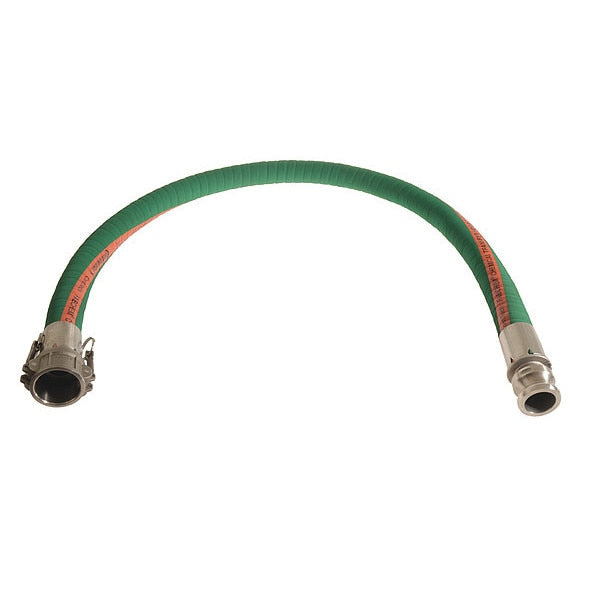

Chemical Hose Assembly, 3" ID x 15 ft.

SKU
Brand Continental
Categories
Description Chemical Hose Assembly, Hose Inside Dia. 3 in, Hose Outside Dia. 3 11/16 in, Hose Length 15 ft, Hose Tube Material Polyethylene, Hose Cover Material EPDM, Hose Reinforcement Type Helix, Hose Reinforcement Material Carbon Steel, Hose Color Green with Orange Stripe, Burst Pressure 800 psi, Max. Working Pressure @ 70 F 200 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 150 Degrees F, Bend Radius 9 in, Hose Configuration Coupled Assembly, Hose Fitting A Size 3 in, Hose Fitting B Size 3 in
graingerSKU: 55CC43, mscSKU: , zoro_no: G6138649, mongo_id: 65bbe7859a749db822741dea

Web Price

$1,171.24 / each

Qty

Product Details

Bend Radius 9 in

Burst Pressure 800 psi

Compatible Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonium Hydroxide, Antifreeze (Coolant), Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, Ethyl (Ethanol), Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Formic Acid, Glycerin, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Paint Thinner, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (to 10%), Turpentine, Xylene

Country of Origin (subject to change) United States

Fitting Material 301 Stainless Steel x 301 Stainless Steel

Fitting Size 3 in x 3 in

Fitting Type M Cam and Groove x F Cam and Groove

For Media Type Acetic Acid, Chromic Acid, Citric Acid, Formic Acid, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Sulfuric Acid, Ketones, Ethanol, Isopropanol, Methanol, Antifreeze, Ethylene Glycol, Glycerin, Calcium Chloride, Sodium Bicarbonate, Cyclohexane, Kerosene, Stoddard Solvent, Ethyl Acetate, Formaldehyde, Ammonium Hydroxide, Sodium Hydroxide, Bleach, Potassium Hydroxide (50%), Lacquer Thinners, Xylene, Motor Oil, Sodium Bisulfate, Sodium Bisulfite, Naphtha, Paint Thinner, Turpentine, Carbon Dioxide, Hydrogen Peroxide, Mineral Oil

Hose Color Green with Orange Stripe

Hose Configuration Coupled Assembly

Hose Cover Material EPDM

Hose Fitting A Material 316 Stainless Steel

Hose Fitting A Size 3 in

Hose Fitting A Type M Cam and Groove

Hose Fitting B Material 316 Stainless Steel

Hose Fitting B Size 3 in

Hose Fitting B Type F Cam and Groove

Hose Fittings 316 Stainless Steel 3 in M Cam and Groove x 316 Stainless Steel 3 in F Cam and Groove

Hose Inside Dia. 3 in

Hose Length 15 ft

Hose Outside Dia. 3 11/16 in

Hose Reinforcement Material Carbon Steel

Hose Tube Material Polyethylene

Max. Working Pressure @ 70 F 200 psi

Not Recommended Chemicals Ammonia (Liquids), Anhydrous Ammonia, Methyl Chloride, Nitric Acid (50% Solution), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%)

Package Quantity 1

Safety Factor 4:1

Standards FDA, 3-A, USDA

Static Control Wire Yes

Temp. Range -40 Degrees to 150 Degrees F
