Home / 3-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 1,730 Nameplate RPM

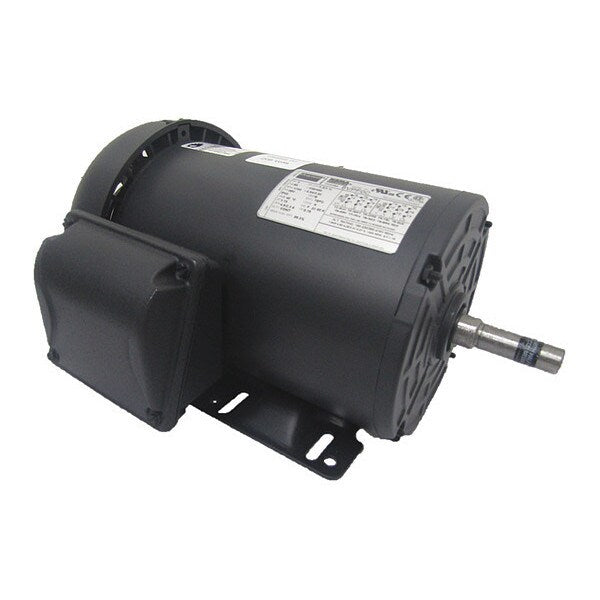

3-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 1,730 Nameplate RPM
3-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 1,730 Nameplate RPM
3-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 1,730 Nameplate RPM
3-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 1,730 Nameplate RPM
3-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 1,730 Nameplate RPM
3-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 1,730 Nameplate RPM

3-Phase General Purpose Motor, 1 1/2 HP, 56H Frame, 208-230/460V AC Voltage, 1,730 Nameplate RPM

  • Dayton
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 1 1/2 hp HP, Nameplate RPM 1,730, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 4.1/2.0 A, 56H Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Inverter Rated Yes, Motor Shaft Design Keyed, Motor Frame Material Steel

    graingerSKU: 6VPF0, mscSKU: , zoro_no: G4045194, mongo_id: 65bbe6683aaddbd5a902af50

Web Price
$596.24 / each
Qty

Product Details

CC029A
Multiple
Continuous
Continuous
2,10,15
56H
Steel
4.1/2.0 A
1 1/2 hp
60 Hz
F
Yes
11 15/16 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
Premium Efficient
Totally Enclosed Fan-Cooled
Steel
Rigid Base
1.15
Keyed
CW/CCW
None
1,730
1
86.5 %
13 13/16 in
1
Three
1701-1800
1,701-1,800
5/8 in
1 5/8 in
CE, CSA, UL
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
