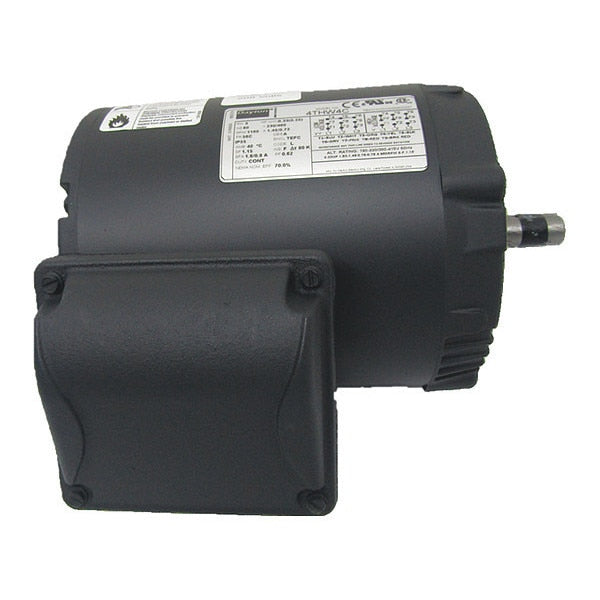

3-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 1,140 Nameplate RPM
3-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 1,140 Nameplate RPM
3-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 1,140 Nameplate RPM
3-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 1,140 Nameplate RPM
3-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 1,140 Nameplate RPM
3-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 1,140 Nameplate RPM

3-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 1,140 Nameplate RPM

  • Dayton
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 1/3 hp HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 1.5/0.70 A, 56C Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position All Angle, Inverter Rated Yes

    graingerSKU: 4THW4, mscSKU: , zoro_no: G2025222, mongo_id: 65bbe9ec22d7a989a9987721

Web Price
$393.74 / each
Qty

Product Details

Multiple
Continuous
Continuous
2,10
56C
Steel
1.5/0.70 A
1/3
60 Hz
F
Yes
10 1/4 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
Standard Efficient
Totally Enclosed Fan-Cooled
Steel
All Angle
Face
1.15
Keyed
CW/CCW
None
1,140
B
1
70 %
12 1/8 in
1
Three
1101-1200
1,101-1,200
5/8 in
1 7/8 in
CE, CSA, UL
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
