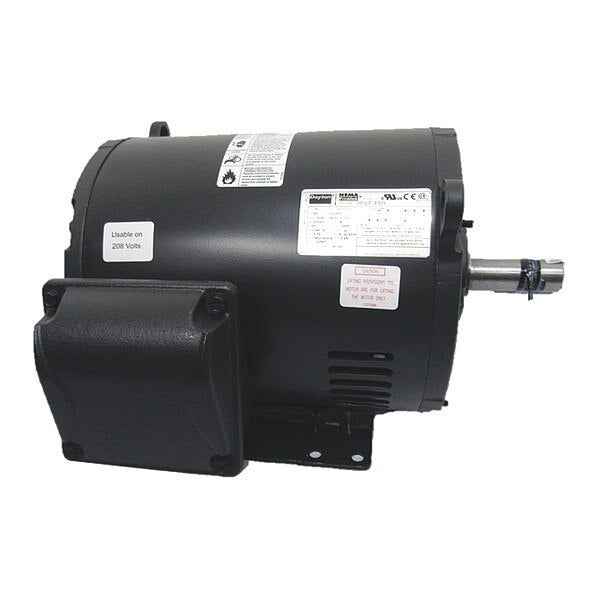

3-Phase General Purpose Motor, 15 HP, 213/5T Frame, 230/460V AC Voltage, 3,530 Nameplate RPM
3-Phase General Purpose Motor, 15 HP, 213/5T Frame, 230/460V AC Voltage, 3,530 Nameplate RPM
3-Phase General Purpose Motor, 15 HP, 213/5T Frame, 230/460V AC Voltage, 3,530 Nameplate RPM
3-Phase General Purpose Motor, 15 HP, 213/5T Frame, 230/460V AC Voltage, 3,530 Nameplate RPM
3-Phase General Purpose Motor, 15 HP, 213/5T Frame, 230/460V AC Voltage, 3,530 Nameplate RPM
3-Phase General Purpose Motor, 15 HP, 213/5T Frame, 230/460V AC Voltage, 3,530 Nameplate RPM

3-Phase General Purpose Motor, 15 HP, 213/5T Frame, 230/460V AC Voltage, 3,530 Nameplate RPM

  • Dayton
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 15 hp HP, Nameplate RPM 3,530, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 34.0/17.0 A, 213/5T Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed
Web Price
$1,739.99 / each
Qty

Product Details

No
CC029A
Mexico
Continuous
Continuous
2,15,54
213/5T
Rolled steel
34.0/17.0 A
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
15 hp
60 Hz
Conduit Box
F
Yes
15 9/16 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Rolled Steel
Horizontal
Rigid Base
1.15
Keyed
CW/CCW
None
3,530
1
90.2 %
18 15/16 in
1
Three
3001-3600
3,001-3,600
1 3/8 in
3 3/8 in
CE, CSA, UL
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
