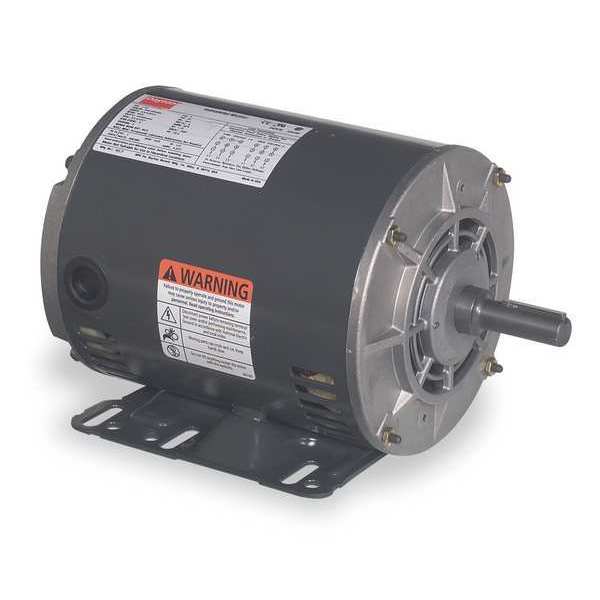

3-Phase General Purpose Motor, 2 HP, 56H Frame, 230/460V AC Voltage, 1,725 Nameplate RPM
3-Phase General Purpose Motor, 2 HP, 56H Frame, 230/460V AC Voltage, 1,725 Nameplate RPM
3-Phase General Purpose Motor, 2 HP, 56H Frame, 230/460V AC Voltage, 1,725 Nameplate RPM
3-Phase General Purpose Motor, 2 HP, 56H Frame, 230/460V AC Voltage, 1,725 Nameplate RPM
3-Phase General Purpose Motor, 2 HP, 56H Frame, 230/460V AC Voltage, 1,725 Nameplate RPM
3-Phase General Purpose Motor, 2 HP, 56H Frame, 230/460V AC Voltage, 1,725 Nameplate RPM

3-Phase General Purpose Motor, 2 HP, 56H Frame, 230/460V AC Voltage, 1,725 Nameplate RPM

  • Dayton
  • General Purpose Motor, Three Phase, Motor Design 3-Phase, 2 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 6.0/3.0 A, 56H Frame, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Inverter Rated Yes, Motor Shaft Design Keyed

    graingerSKU: 31TT22, mscSKU: , zoro_no: G9097374, mongo_id: 65bbe7833aaddbd5a909d893

Web Price
$698.74 / each
Qty

Product Details

No
Mexico
Continuous
Continuous
5,10
56H
Rolled steel
6.0/3.0 A
Energy Aware
Product Contributes To Reducing Energy Consumption
2 hp
60/50 Hz
B
Yes
11 1/4 in
1 yr
104 Degrees F
General Application
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Rolled Steel
All Angle
Rigid Base
1.15
Keyed
CW/CCW
None
1,725
1
86.5 %
13 7/16 in
1
Three
1701-1800
1,701-1,800
5/8 in
1 7/8 in
UL Recognized for US and Canada (E47479)
230/460V AC
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
