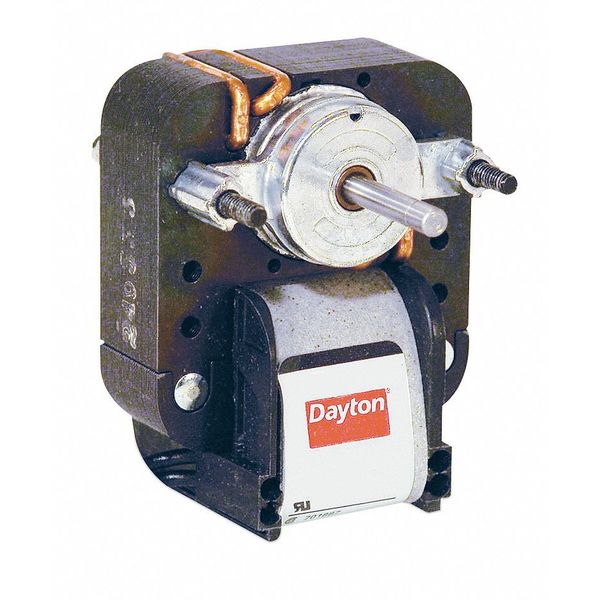

C-Frame Motor, Stud/Hole, 1 In. L, CWSE

SKU
Brand Dayton
Categories
Description C-Frame Motor, Single Phase, Motor Design Shaded Pole, 1/150 HP, Nameplate RPM 3,000, No. of Speeds 1, Voltage 230V AC, Full Load Amps 0.24 A, Non-Standard Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Impedance with One-Shot Backup, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWSE, Max. Ambient Temp. 40 Degrees C, Motor Enclosure Design Open Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Number of Shafts 1
graingerSKU: 4M071, mscSKU: , zoro_no: G1498786, mongo_id: 65bbe86522d7a989a98f0bda

Web Price

$29.31 / each

Qty

Product Details

Ambient Temperature 40 Degrees C

Capacitor Required No

Cord Length 12 in

Country of Origin (subject to change) Viet Nam

Frame Non-Standard

Frequency 60 Hz

Full Load Amps 0.24 A

HP_ 1/150

Hz_ 60 Hz

Ins. Class B

Length Less Shaft 1 11/16 in

Max. Ambient Temp. 40 Degrees C

Motor Application HVAC/R

Motor Bearings Sleeve

Motor Design Shaded Pole

Motor Enclosure Design Open Air-Over

Motor Mounting Position All Angle

Motor Mounting Type Stud

Motor Service Factor 1

Motor Shaft Rotation CWSE

Motor Sub Application Direct Drive Fan/Blower

Motor Thermal Protection Impedance with One-Shot Backup

Mounting Stud

Mounting Holes (2) #8-32

Mounting Stud Location Shaft End

Nameplate RPM 3,000

No. of Speeds 1

Number of Shafts 1

Number of Speeds 1

O.C. Mounting 1-7/8 in

Package Quantity 1

Phase Single

RPM Range 1,801-3,000

Shaft Dia. 3/16 in

Shaft Length 1 in

Stack Size 5/8 in

Standards CSA (701887), UL (E37403/E40077/E47479)

Stud Quantity 2

Stud Size #8-32

Usable @ 200V No

Usable @ 208V No

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
