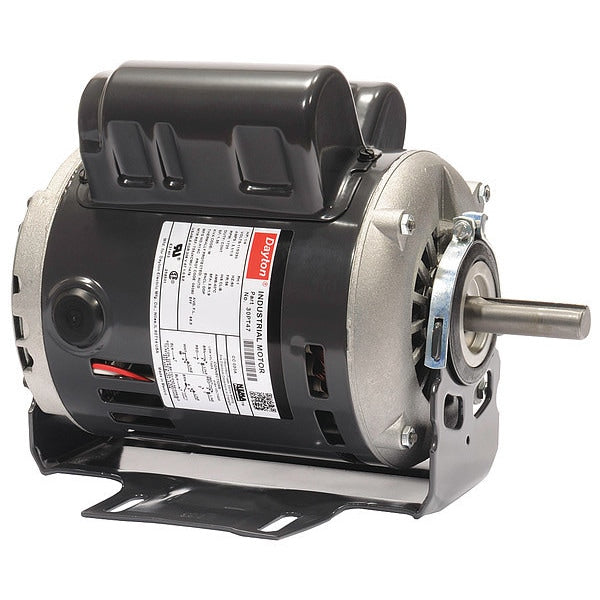

Capacitor-Start/Run General Purpose Motor, 1 1/2 HP, 115/230V AC Voltage, 56 Frame
Capacitor-Start/Run General Purpose Motor, 1 1/2 HP, 115/230V AC Voltage, 56 Frame
Capacitor-Start/Run General Purpose Motor, 1 1/2 HP, 115/230V AC Voltage, 56 Frame
Capacitor-Start/Run General Purpose Motor, 1 1/2 HP, 115/230V AC Voltage, 56 Frame
Capacitor-Start/Run General Purpose Motor, 1 1/2 HP, 115/230V AC Voltage, 56 Frame

Capacitor-Start/Run General Purpose Motor, 1 1/2 HP, 115/230V AC Voltage, 56 Frame

  • Dayton
  • General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 1/2 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 13.4/6.7 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated No, Motor Shaft Design Keyed

    graingerSKU: 30PT81, mscSKU: , zoro_no: G9090697, mongo_id: 65bbe84d9a749db822785aef

Web Price
$914.99 / each

Product Details

Yes
Mexico
Continuous
Continuous
56
Rolled steel
13.4/6.7 A
Energy Aware
Product Contributes To Reducing Energy Consumption
1 1/2 hp
60 Hz
Start Cap 649MFD @ 165V
B
No
11 3/8 in
1 yr
104 Degrees F
General Application
Ball
Capacitor-Start/Run
Premium Efficient
Open Dripproof
Rolled Steel
Horizontal
Cradle Base
1.15
Keyed
CW/CCW
None
1,725
1
83.8 %
12 13/16 in
1
Single
1701-1800
1,701-1,800
5/8 in
1 7/8 in
CSA (258501), UL (E47479)
115/230V AC
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
