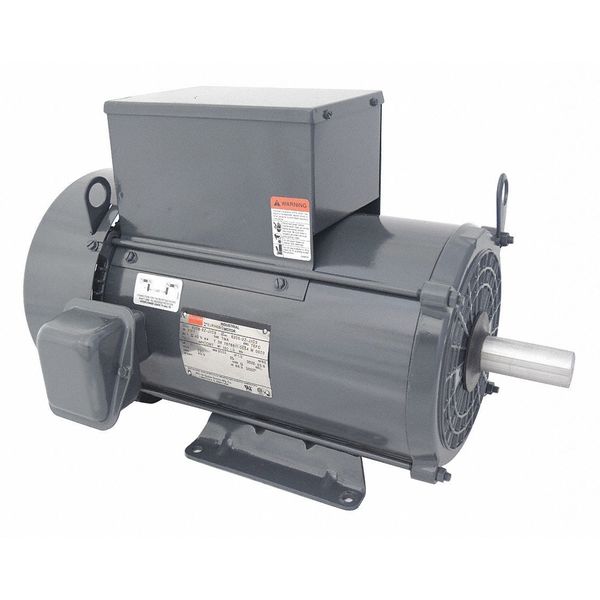

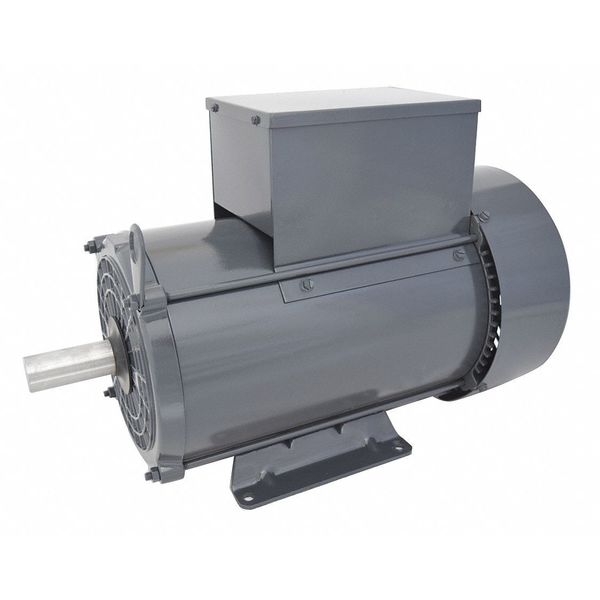

Capacitor-Start/Run General Purpose Motor, 10 HP, 230V AC Voltage, 215T Frame, 3,535 Nameplate RPM

SKU
Brand Dayton
Categories
Description General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 10 hp HP, Nameplate RPM 3,535, No. of Speeds 1, Voltage 230V AC, Full Load Amps 40 A, 215T Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
graingerSKU: 5UKH0, mscSKU: , zoro_no: G3270154, mongo_id: 65bbe7f522d7a989a98ccdfc

Web Price

$2,829.99 / each

Qty

Product Details

Country of Origin (subject to change) Mexico

Duty Continuous

Duty Cycle Continuous

Frame 215T

Frame Material Steel

Full Load Amps 40 A

HP_ 10 hp

Hz_ 60 Hz

Includes Conduit Box

Ins. Class F

Length Less Shaft 18 7/8 in

Manufacturers Warranty Length 1 yr

Max. Ambient Temp. 104 Degrees F

Motor Application General Application

Motor Bearings Ball

Motor Design Capacitor-Start/Run

Motor Efficiency Group Energy Efficient

Motor Enclosure Design Totally Enclosed Fan-Cooled

Motor Frame Material Steel

Motor Mounting Position All Angle

Motor Mounting Type Rigid Base

Motor Service Factor 1

Motor Shaft Design Keyed

Motor Shaft Rotation CW/CCW

Motor Thermal Protection None

Nameplate RPM 3,535

No. of Speeds 1

Nominal Efficiency 85.5 %

Overall Length 22 1/16 in

Package Quantity 1

Phase Single

RPM Group 3001-3600

RPM Range 3,001-3,600

Shaft Dia. 1 3/8 in

Shaft Length 3 3/8 in

Standards CE, CSA, UL

Voltage 230V AC

Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
