Home / Capacitor-Start/Run General Purpose Motor, 1/3 HP, 115/208-230V AC Voltage, 56 Frame

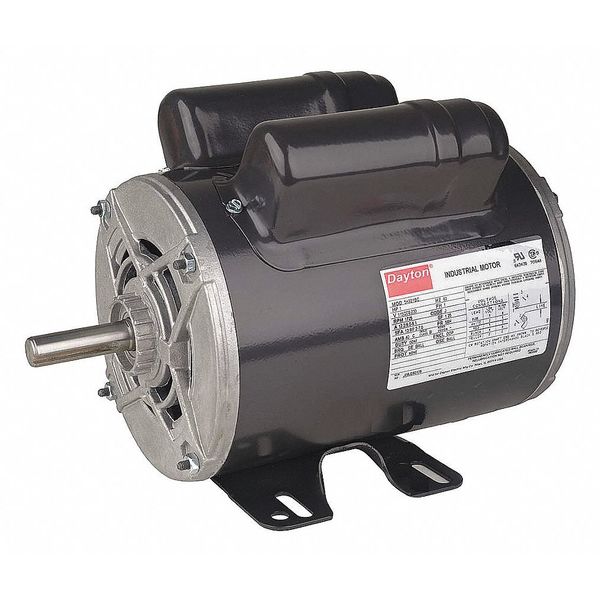

Capacitor-Start/Run General Purpose Motor, 1/3 HP, 115/208-230V AC Voltage, 56 Frame
Capacitor-Start/Run General Purpose Motor, 1/3 HP, 115/208-230V AC Voltage, 56 Frame
Capacitor-Start/Run General Purpose Motor, 1/3 HP, 115/208-230V AC Voltage, 56 Frame
Capacitor-Start/Run General Purpose Motor, 1/3 HP, 115/208-230V AC Voltage, 56 Frame
Capacitor-Start/Run General Purpose Motor, 1/3 HP, 115/208-230V AC Voltage, 56 Frame
Capacitor-Start/Run General Purpose Motor, 1/3 HP, 115/208-230V AC Voltage, 56 Frame

Capacitor-Start/Run General Purpose Motor, 1/3 HP, 115/208-230V AC Voltage, 56 Frame

  • Dayton
  • General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 3.8/1.9-1.9 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal or Vertical Shaft Down

    graingerSKU: 20VD09, mscSKU: , zoro_no: G9078885, mongo_id: 65bbe7ab3aaddbd5a90abfcb

Web Price
$514.99 / each
Qty

Product Details

Yes
Mexico
Continuous
Continuous
56
Rolled steel
3.8/1.9-1.9 A
Energy Aware
Product Contributes To Reducing Energy Consumption
1/3 hp
60 Hz
Start Capacitor 340 to 408 MFD, 110V AC, Run Capacitor
B
No
9 in
1 yr
104 Degrees F
General Application
Ball
Capacitor-Start/Run
Premium Efficient
Open Dripproof
Rolled Steel
Horizontal or Vertical Shaft Down
Rigid Base
1.35
Keyed
CW/CCW
Manual
1,725
1
72.4 %
11 in
1
Single
1701-1800
1,701-1,800
5/8 in
1 7/8 in
UL (E37403)
115/208-230V AC
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
