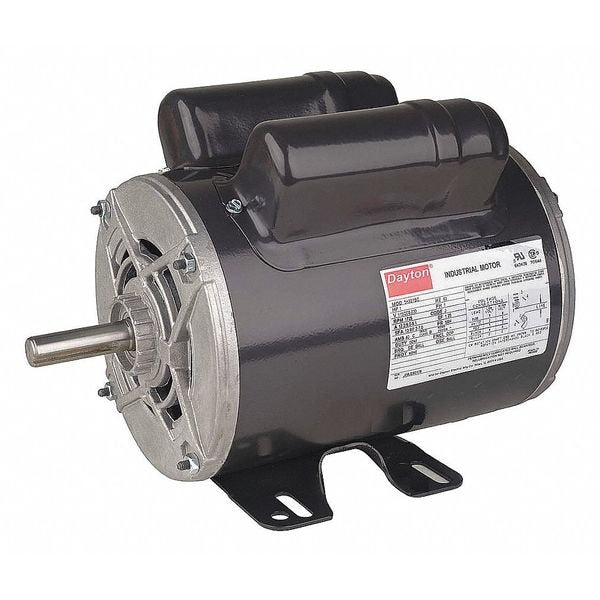

Capacitor-Start/Run General Purpose Motor, 1/4 HP, 115/208-230V AC Voltage, 56 Frame
Capacitor-Start/Run General Purpose Motor, 1/4 HP, 115/208-230V AC Voltage, 56 Frame
Capacitor-Start/Run General Purpose Motor, 1/4 HP, 115/208-230V AC Voltage, 56 Frame
Capacitor-Start/Run General Purpose Motor, 1/4 HP, 115/208-230V AC Voltage, 56 Frame
Capacitor-Start/Run General Purpose Motor, 1/4 HP, 115/208-230V AC Voltage, 56 Frame
Capacitor-Start/Run General Purpose Motor, 1/4 HP, 115/208-230V AC Voltage, 56 Frame

Capacitor-Start/Run General Purpose Motor, 1/4 HP, 115/208-230V AC Voltage, 56 Frame

  • Dayton
  • General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 2.4/1.2-1.2 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal or Vertical Shaft Down, Inverter Rated No

    graingerSKU: 20VD16, mscSKU: , zoro_no: G9078955, mongo_id: 65bbe84c22d7a989a98e9973

Web Price
$541.24 / each

Product Details

Yes
Mexico
Continuous
Continuous
56
Rolled steel
2.4/1.2-1.2 A
Energy Aware
Product Contributes To Reducing Energy Consumption
1/4 hp
60 Hz
Start Capacitor 234MFD, 115V AC, Run Capacitor
B
No
10 in
1 yr
104 Degrees F
General Application
Ball
Capacitor-Start/Run
Premium Efficient
Open Dripproof
Rolled Steel
Horizontal or Vertical Shaft Down
Rigid Base
1.35
Keyed
CW/CCW
None
1,140
1
62.2 %
12 in
1
Single
1101-1200
1,101-1,200
5/8 in
1 7/8 in
UL (E47479)
115/208-230V AC
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
