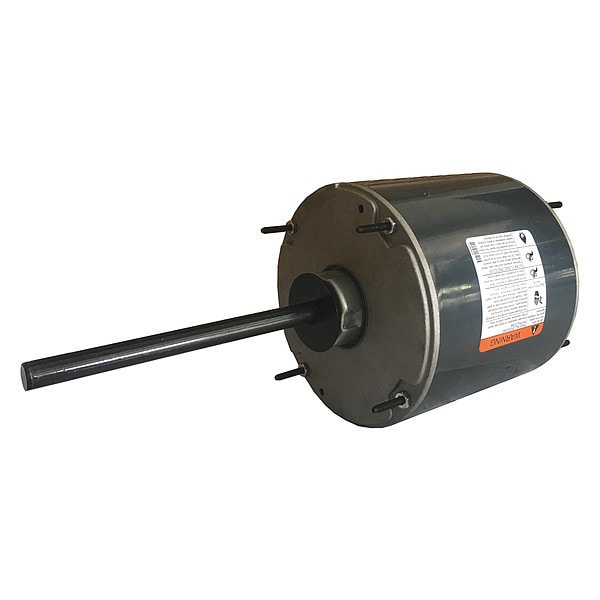

Condenser Fan Motor, 1/2 HP, 1075 rpm, 60Hz

SKU
Brand Dayton
Categories
Description Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 460V AC, 2.1 Full Load Amps, 48YZ Frame, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Mounting Position All Angle, Shaft Length 5 in, Lead Length 30 in, Shaft Dia. 1/2 in
graingerSKU: 3LU98, mscSKU: , zoro_no: G2366025, mongo_id: 65bbe8919a749db82279b2f2

Web Price

$294.99 / each

Qty

Product Details

Application Condenser Fan

Body Dia. 5 5/8 in

Bolt Circle Dia. 5 1/8 in

Capacitor Required 2MDV7

Country of Origin (subject to change) Multiple

Duty Continuous

Duty Cycle Continuous

Features Reversing Plug, Totally Enclosed Endshields with Removable Drain Plugs

Frame 48YZ

Full Load Amps 2.1

HP_ 1/2

Hz_ 60

Ins. Class B

Lead Length 30 in

Length Less Shaft 5 7/8 in

Max. Ambient Temp. 60 Degrees C

Motor Application HVAC/R

Motor Bearings Ball

Motor Design Permanent Split Capacitor

Motor Enclosure Design Totally Enclosed Air-Over

Motor Mounting Position All Angle

Motor Mounting Type Stud

Motor Service Factor 1

Motor Shaft Design Double-Flat

Motor Shaft Rotation CW/CCW

Motor Sub Application Condenser Fan

Motor Thermal Protection Auto

Mounting Stud Pattern 3 5/8 in x 3 5/8 in

Nameplate RPM 1,075

No. of Speeds 1

Nominal Efficiency 65.9 %

Overall Length 10 5/16 in

Package Quantity 1

Phase Single

RPM Range 1,001-1,100

Shaft Dia. 1/2 in

Shaft Length 5 in

Standards CSA Certified (258501), UL Recognized (E37403)

Stud Quantity 4

Stud Size 3/4 in

Voltage 460V AC

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC
