Home / DC Motor, PM, TENV, 1/6 HP, 1800 rpm, 180VDC

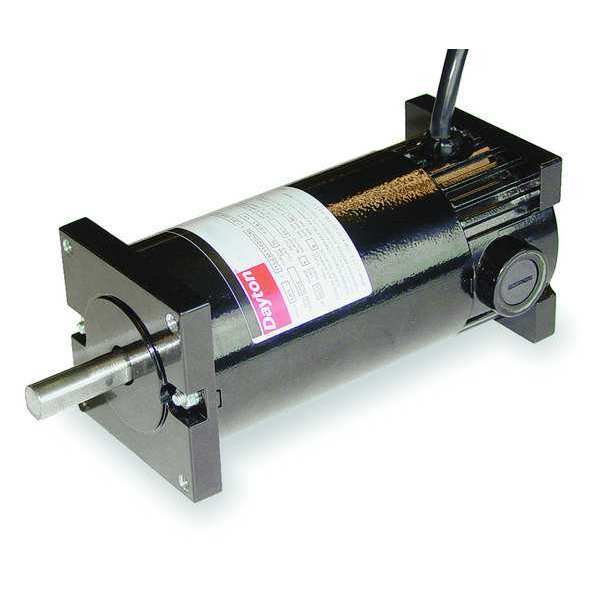

DC Motor, PM, TENV, 1/6 HP, 1800 rpm, 180VDC
DC Motor, PM, TENV, 1/6 HP, 1800 rpm, 180VDC

DC Motor, PM, TENV, 1/6 HP, 1800 rpm, 180VDC

  • Dayton
  • DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1/6 HP, Nameplate RPM 1,800, Voltage 180V DC, 0.90 A Full Load Amps, Non-Standard Frame, Full Load Torque 5.6 in-lb, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 1/2 in, Motor Bearings Ball, Shaft Length 1 1/2 in, Motor Shaft Design Keyed, Brush Type External

    graingerSKU: 1Z851, mscSKU: , zoro_no: G3112216, mongo_id: 65bbea0522d7a989a998e097

Web Price
$481.24 / each
Qty

Product Details

7-7/16 x 2 in
Ball
External
United States
2-5/8 x 2-5/8
Non-Standard
0.90 A
5.6 in-lb
1/6
F
40 Degrees C
General Purpose
Ball
Permanent Magnet DC
Totally Enclosed Nonventilated
Face/Base
Keyed
CW/CCW
None
1,800
9 3/8 in
1
Yes
CW/CCW
1701-1800
1,701-1,800
1/2 in
1 1/2 in
UL Recognized (E61772)
180V DC
180V DC
