Home / DC Motor, PM, TENV, 1/7 HP, 1750rpm, 12/24VDC

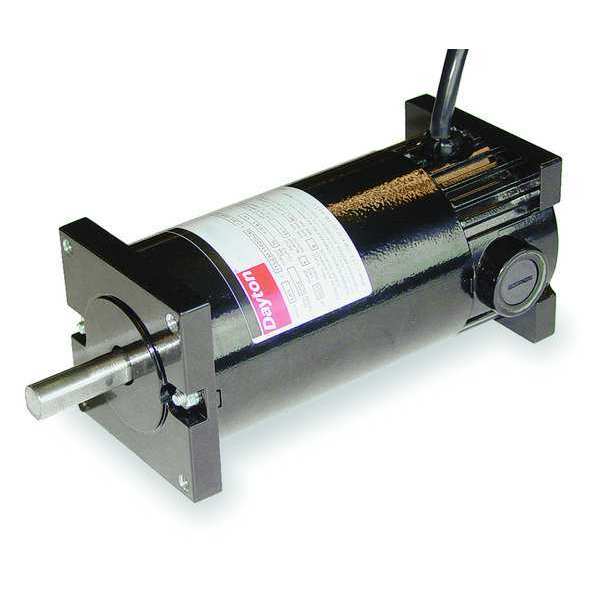

DC Motor, PM, TENV, 1/7 HP, 1750rpm, 12/24VDC
DC Motor, PM, TENV, 1/7 HP, 1750rpm, 12/24VDC

DC Motor, PM, TENV, 1/7 HP, 1750rpm, 12/24VDC

  • Dayton
  • DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1/4, 1/7 HP, Nameplate RPM 1,750/3,900, Voltage 12/24V DC, 14.0 A Full Load Amps, Non-Standard Frame, Full Load Torque 5.6 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 1/2 in, Motor Frame Material Steel

    graingerSKU: 4Z143, mscSKU: , zoro_no: G2210424, mongo_id: 65bbe98f22d7a989a9962f35

Web Price
$337.49 / each
Qty

Product Details

6-7/16 x 2 in
Ball
5 15/16 in
Carbon
United States
Continuous
2-5/8 x 2-5/8
Non-Standard
14.0 A
5.6 in-lb
1/4, 1/7
B
6 7/8 in
1 yr
40 Degrees C
General Purpose
Ball
Permanent Magnet DC
Totally Enclosed Nonventilated
Steel
Face/Base
1
CW/CCW
None
1,750/3,900
70.3 %
8 3/8 in
1
Yes
CW/CCW
1701-1800
1,701-1,800
1/2 in
1 1/2 in
UL Recognized (E61772)
4
12/24V DC
12V DC, 24V DC
25 lb
