Home / DC Mtr, PM, TENV, 1/44 HP, 1800rpm, 12/24VDC

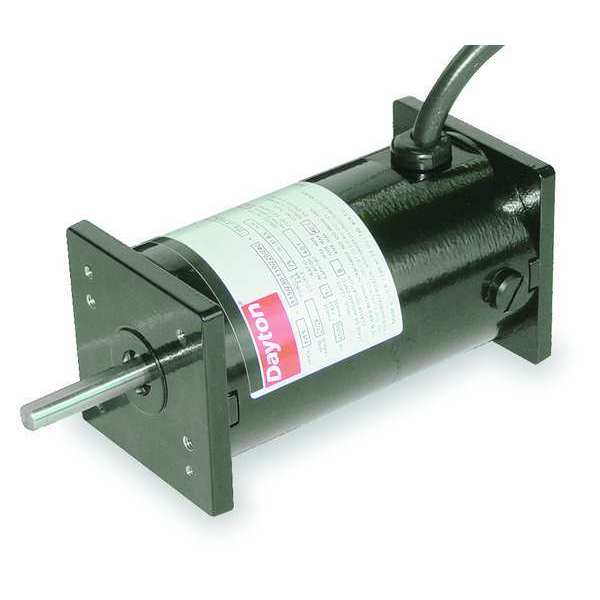

DC Mtr, PM, TENV, 1/44 HP, 1800rpm, 12/24VDC
DC Mtr, PM, TENV, 1/44 HP, 1800rpm, 12/24VDC

DC Mtr, PM, TENV, 1/44 HP, 1800rpm, 12/24VDC

  • Dayton
  • DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1/18, 1/44 HP, Nameplate RPM 1,800/4,300, Voltage 12/24V DC, 2.4 A Full Load Amps, Non-Standard Frame, Full Load Torque 0.8 in-lb, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Shaft Dia. 1/4 in, Motor Bearings Ball, Shaft Length 1 1/2 in, Brush Type External, Overall Length 5 15/16 in

    graingerSKU: 3XE19, mscSKU: , zoro_no: G2844633, mongo_id: 65bbe9db22d7a989a997fb85

Web Price
$323.74 / each
Qty

Product Details

3-3/4 x 1-1/4 in
Ball
External
United States
1-3/4 x 1-3/4
Non-Standard
2.4 A
0.8 in-lb
1/18, 1/44
B
40 Degrees C
General Purpose
Ball
Permanent Magnet DC
Totally Enclosed Nonventilated
Face/Base
CW/CCW
None
1,800/4,300
5 15/16 in
1
CW/CCW
1701-1800
1,701-1,800
1/4 in
1 1/2 in
UL Recognized (E61772)
12/24V DC
12V DC, 24V DC
