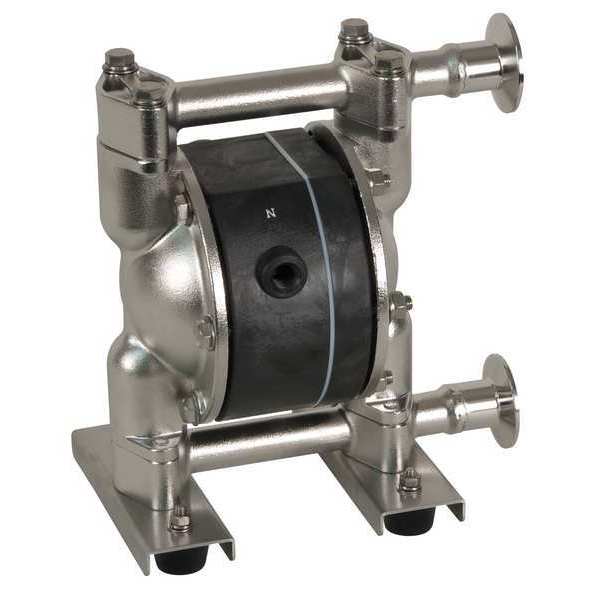

Double Diaphragm Pump, 316 Stainless Steel, Air Operated, PTFE, 14 GPM

Home / Double Diaphragm Pump, 316 Stainless Steel, Air Operated, PTFE, 14 GPM

Double Diaphragm Pump, 316 Stainless Steel, Air Operated, PTFE, 14 GPM

SKU
Brand Dayton
Categories Pumps
Description Double Diaphragm Pump, Air Consumption (Maximum) 21 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material 316 Stainless Steel, Diaphragm Material PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 14 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type Tri-Clamp, Media Discharge Location Top, Media Intake Connection Size 1 in, Media Intake Connection Type Tri-Clamp
graingerSKU: 22A603, mscSKU: , zoro_no: G5734425, mongo_id: 65bbe8149a749db822772fbb

Web Price

$2,807.49 / each

Qty

Product Details

Agency Compliance FDA Compliant

Air Consumption (Maximum) 21 scfm

Air Inlet 1/4 in FNPT

Air Inlet Size 1/4 in FNPT

Air Intake Connection Size 1/4 in

Air Intake Connection Type FNPT

Air Intake Pressure (Maximum) 100 psi

Ball Material PTFE

Body Material 316 Stainless Steel

Check Seat Material 316 Stainless Steel

Connection Style Tri-Clamp

Country of Origin (subject to change) United States

Diaphragm Material PTFE

Diaphragm Material - Pumps PTFE

Discharge Port 1 in Tri-Clamp

Duty Cycle Continuous

Feet of Head (Maximum) Not Applicable

Flow Rate (Maximum) 14 gpm

Flow Rate @ 10 psi Not Applicable

Flow Rate @ 100 psi 13 gpm

Flow Rate @ 120 psi Not Applicable

Flow Rate @ 15 psi Not Applicable

Flow Rate @ 20 psi Not Applicable

Flow Rate @ 30 psi 35 gpm

Flow Rate @ 40 psi Not Applicable

Flow Rate @ 50 psi Not Applicable

Flow Rate @ 60 psi 12 gpm

Flow Rate @ 70 psi 12.5 gpm

Flow Rate @ 80 psi Not Applicable

Flow Rate @ 90 psi Not Applicable

Fluid Connection Size 1 in

Fluid Connection Type Tri-Clamp

For Use With Potable Systems No

Height 9 3/4 in

Housing Material - Pumps 316 Stainless Steel

Includes Ball Valve

Inlet/Outlet Size 1 in

Item - Air Operated Pumps Double Diaphragm Pump

Length 5 3/4 in

Manifold Connection Single Port

Manifold Connection Type Tri-Clamp

Manufacturers Warranty Length 1 yr

Max. Dia. Solids 1/32 in

Max. Flow 14 gpm

Max. Flow GPM 14 gpm

Max. Operating Pressure 100 psi

Max. Temp - Pumps 212 Degrees F

Max. Temp. 212 Degrees F

Media Discharge Connection Size 1 in

Media Discharge Connection Type Tri-Clamp

Media Discharge Location Top

Media Intake Connection Size 1 in

Media Intake Connection Type Tri-Clamp

Media Intake Location Bottom

Media Temperature (Maximum) 212 Degrees F

Media Temperature (Minimum) 40 Degrees F

Mounting Hardware Material Stainless Steel, Steel

Nameplate Voltage Not Applicable

Non-Wetted Housing Material Aluminum

NPSHr Not Applicable

Operating Pressure (Maximum) 100 psi

Operation Type Air Operated

Overall Height 9.8 in

Overall Length 5.8 in

Overall Width 8.4 in

Package Quantity 1

Priming Self-Priming

Pump Assembly Type Bolt

Pump Operation Type Air

Self-Priming Dry 5 ft

Self-Priming Wet 28 ft

Series Not Applicable

Series Family Not Applicable

Solid Diameter (Maximum) 0.03 in

Standards FDA Compliant

Suction Port 1 in Tri-Clamp

Valve Material PTFE

Valve Type Ball

Viscosity (Maximum) 15,000 cps

Wetted Housing Material 316 Stainless Steel

Width 8 3/8 in
