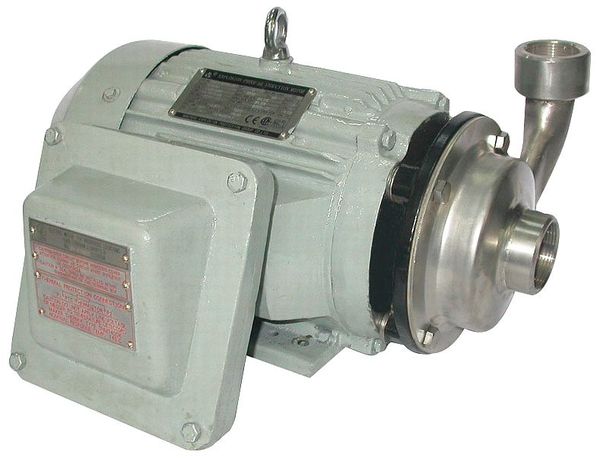

Haz Location Cent Pump, 2 HP

Home / Haz Location Cent Pump, 2 HP

Haz Location Cent Pump, 2 HP

SKU
Brand Dayton
Categories Pumps
Description Centrifugal Pump, Discharge Pipe Size 1 1/2 in, Discharge Pipe Type NPT, Discharge Rotation 90 Degrees Increments, Feet of Head (Maximum) 73 ft, Flow Rate @ 20 ft of Head (Maximum) 106 gpm, Flow Rate @ 40 ft of Head (Maximum) 77 gpm, For Use With Potable Systems No, Hazardous Location Class Class I Division 1 Groups C, D, Class II Division 2 Groups E, F, G, Horsepower (Maximum) 2 hp, Housing Material 316 Stainless Steel, Impeller Design Closed, Impeller Material Stainless Steel
graingerSKU: 5WXU9, mscSKU: , zoro_no: G3433281, mongo_id: 65bbe92e22d7a989a993c5c3

Web Price

$3,196.24 / each

Qty

Product Details

Agency Compliance UL Listed for Class I Groups C and D and Class II Groups E, F and G

Ambient Temperature (Maximum) 140 Degrees F

Ambient Temperature (Minimum) 40 Degrees F

Amps 5.06-4.60/2.30

Bearing Type Ball

Best Efficiency Flow 49 gpm

Best Efficiency GPM @ Head 49 @ 50 ft

Best Efficiency Head 50 ft

Case Pressure (Maximum) 150 psi

Compatible Motor Frame 145TC

Country of Origin (subject to change) China

Current 5.06 to 4.6 or 2.3 A

Discharge Pipe Size 1 1/2 in

Discharge Pipe Type NPT

Discharge Port 1 1/2 in NPT

Discharge Rotation 90 Degrees Increments

Duty Continuous

Duty Cycle Continuous

Feet of Head (Maximum) 73 ft

Flow Rate @ 20 ft of Head (Maximum) 106 gpm

Flow Rate @ 25 ft of Head (Maximum) 101 gpm

Flow Rate @ 30 ft of Head (Maximum) 94 gpm

Flow Rate @ 40 ft of Head (Maximum) 77 gpm

Flow Rate @ 50 ft of Head (Maximum) 49 gpm

Flow Rate @ 60 ft of Head (Maximum) 18 gpm

Flow Rate @ 70 ft of Head (Maximum) 2 gpm

For Use With Can Be Used with Nonflammable and Nonabrasive Liquids

For Use With Potable Systems No

Frame 145TC

Frequency 60 Hz

GPM of Water @ 20 Ft. of Head 106

GPM of Water @ 25 Ft. of Head 101

GPM of Water @ 30 Ft. of Head 94

GPM of Water @ 40 Ft. of Head 77

GPM of Water @ 50 Ft. of Head 49

GPM of Water @ 60 Ft. of Head 18

GPM of Water @ 70 Ft. of Head 2

Hazardous Location Class 1 C,D / 2 E,F,G

Height 9 1/16 in

Horsepower (Maximum) 2 hp

Housing Material 316 Stainless Steel

HP_ 2 hp

Hz_ 60

Impeller Design Closed

Impeller Material Stainless Steel

Impeller Type Closed

Includes Manual

Inlet 2 in NPT

Inlet (In.) 2 NPT

Inlet Pressure 121 psi

Intake Pipe Size 2 in

Intake Pipe Type NPT

Manufacturers Warranty Length 1 yr

Max. Case Pressure 150 psi

Max. Dia. Solids 1/8

Max. Specific Gravity 1

Media Temperature (Maximum) 250 Degrees F

Media Temperature (Minimum) 40 Degrees F

Motor Ambient Temp. Rating 140 Degrees F

Motor Enclosure TEFC

Motor RPM 3,450 RPM

Motor Speed (Maximum) 3,450 RPM

Motor Thermal Protection None

Nameplate Voltage 208-230/460V AC

Outlet 1-1/2 in NPT

Overall Height 9.06 in

Overall Length 15.13 in

Overall Width 13 in

Package Quantity 1

Phase 3

Port Rotation 90 Degrees Increments

Priming Manual

Product Type Centrifugal Pump

Seal Material Viton Elastomer/Carbon Ceramic

Seal Type Mechanical

Service Factor 1.15

Shaft Material Stainless Steel

Shaft Outer Diameter 7/16 in

Solid Diameter (Maximum) 1/6 in

Specific Gravity (Maximum) 1

Standards CUS

Suction Port 2 in NPT

Temp. Code T3C

Temperature Code T3C

Viscosity (Maximum) 264 cps

Voltage 208-230/460

Wetted Material Carbon, Ceramic, Stainless Steel, Viton

Wetted Materials Carbon/Ceramic, Viton, Stainless Steel

Width 13 in
