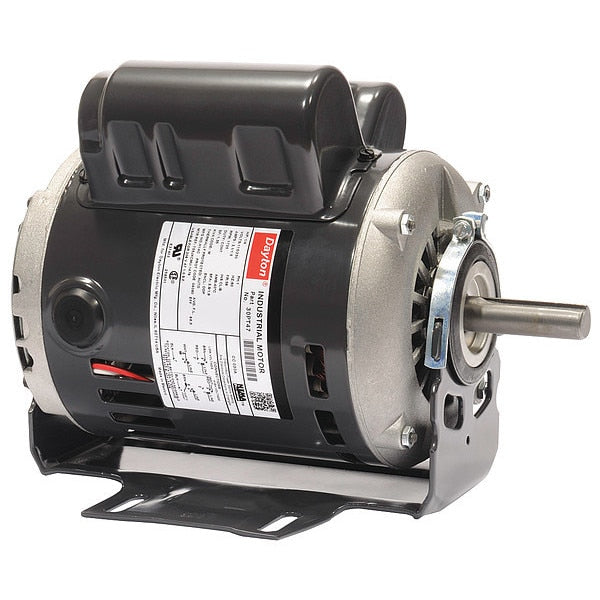

MTR, CS/CR, ODP, 1/4 HP, 1725, 56, EFF 68.5
MTR, CS/CR, ODP, 1/4 HP, 1725, 56, EFF 68.5
MTR, CS/CR, ODP, 1/4 HP, 1725, 56, EFF 68.5
MTR, CS/CR, ODP, 1/4 HP, 1725, 56, EFF 68.5
MTR, CS/CR, ODP, 1/4 HP, 1725, 56, EFF 68.5

MTR, CS/CR, ODP, 1/4 HP, 1725, 56, EFF 68.5

  • Dayton
  • General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/4 hp HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 3.1/1.5 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.35, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated No, Motor Shaft Design Keyed

    graingerSKU: 30PT47, mscSKU: , zoro_no: G8565191, mongo_id: 65bbe7f59a749db822768efb

Web Price
$456.24 / each
Qty

Product Details

Yes
Mexico
Continuous
Continuous
56
Rolled steel
3.1/1.5 A
Energy Aware
Product Contributes To Reducing Energy Consumption
1/4 hp
60 Hz
B
No
8 3/8 in
1 yr
104 Degrees F
General Application
Ball
Capacitor-Start/Run
Premium Efficient
Open Dripproof
Rolled Steel
Horizontal
Cradle Base
1.35
Keyed
CW/CCW
Auto
1,725
1
68.5 %
10 5/16 in
1
Single
1701-1800
1,701-1,800
5/8 in
1 7/8 in
CSA (258501), UL (E47479)
115/230V AC
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
