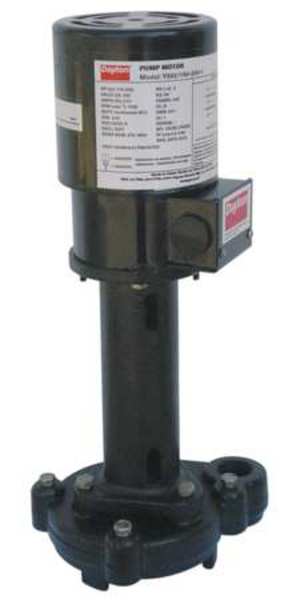

Pump, Coolant, 1/8 HP, 230V, 0.4 Amp

Home / Pump, Coolant, 1/8 HP, 230V, 0.4 Amp

Pump, Coolant, 1/8 HP, 230V, 0.4 Amp

SKU
Brand Dayton
Categories Pumps
Description Machine Tool Pump, Nameplate Voltage 230V AC, Phase Three, Pump Housing Material Cast Iron, Horsepower 1/8 hp, Maximum Viscosity 500 SUS, Flow Rate (Maximum, Water) 12.5 gpm, Flow Rate @ 5 ft of Head (Maximum, Water) 9.8 gpm, Flow Rate @ 10 ft of Head (Maximum, Water) 4 gpm, Maximum Feet of Head 10 ft, Immersion Depth (Maximum) 6.38 in, Compatible Intake Pipe Size 3/4 in, Compatible Discharge Pipe Size 3/4 in, Intake Type NPT, Discharge Type NPT, Impeller Material Stainless Steel
graingerSKU: 4JPH4, mscSKU: , zoro_no: G1287632, mongo_id: 65bbe84022d7a989a98e66aa

Web Price

$518.74 / each

Qty

Product Details

Amps 0.40

Application For Machining Lubricants, Coolants, Flushing and Circulation

Base Diameter 5.56 in

Body Material Cast iron

Compatible Discharge Pipe Size 3/4 in

Compatible Intake Pipe Size 3/4 in

Compatible with Media Type Non-Flammable Liquids

Cord Length Not Applicable

Country of Origin (subject to change) China

Dia. (In.) 5 9/16 in

Discharge Port (In.) 3/4 in

Discharge Type NPT

Electrical Connection Type Hardwired

Feet of Head (Minimum) 1 ft

Flow Rate (Maximum, Water) 12.5 gpm

Flow Rate @ 1 ft of Head (Maximum, Oil) 12.5 gpm

Flow Rate @ 1 ft of Head (Maximum, Water) 12.5 gpm

Flow Rate @ 10 ft of Head (Maximum, Oil) Not Applicable

Flow Rate @ 10 ft of Head (Maximum, Water) 4 gpm

Flow Rate @ 15 ft of Head (Maximum, Oil) Not Applicable

Flow Rate @ 15 ft of Head (Maximum, Water) Not Applicable

Flow Rate @ 20 ft of Head (Maximum, Oil) Not Applicable

Flow Rate @ 20 ft of Head (Maximum, Water) Not Applicable

Flow Rate @ 5 ft of Head (Maximum, Oil) Not Applicable

Flow Rate @ 5 ft of Head (Maximum, Water) 9.8 gpm

For Use With Nonflammable Liquids Compatible with Pump Component Materials

GPH of Water @ 1 Ft. of Head 750 gph

GPH of Water @ 2 Ft. of Head 717 gph

GPH of Water @ 3 Ft. of Head 677 gph

GPH of Water @ 5 Ft. of Head 588 gph

GPH of Water @ 8 Ft. of Head 388 gph

GPH of Water @ 9 Ft. of Head 276 gph

GPM of Oil 500 SSU @ 12 Ft. of Head 30

GPM of Oil 500 SSU @ 15 Ft. of Head 32

GPM of Oil 500 SSU @ 3 Ft. of Head 8 gpm

GPM of Oil 500 SSU @ 6 Ft. of Head 4.4 gpm

GPM of Water @ 1 Ft. of Head 12.5 gpm

GPM of Water @ 3 Ft. of Head 11.3 gpm

GPM of Water @ 5 Ft. of Head 9.8 gpm

GPM of Water @ 6 Ft. of Head 9 gpm

GPM of Water @ 7 Ft. of Head Low 7.8 gpm

GPM of Water @ 9 Ft. of Head 4.6 gpm

Height (In.) 14 1/16 in

Horsepower 1/8 hp

HP_ 1/8 hp

Immersion Depth (Maximum) 6.38 in

Impeller Material Stainless Steel

Inlet/Outlet (In.) 3/4 in

Intake and Discharge Size 3/4 in , 3/4 in

Intake Type NPT

Length (In.) 5 13/16 in

Max. Immersion Depth (In.) 6 3/8 in

Max. Recommended Viscosity 500 SSU

Max. Temp. 200 Degrees F

Maximum Feet of Head 10 ft

Maximum Media Temperature 200 Degrees F

Maximum RPM 1,750 RPM

Maximum Viscosity 500 SUS

Min. Immersion Depth (In.) 2 in

Minimum Immersion Depth 2 in

Motor Enclosure Totally Enclosed Fan Cooled

Motor Type 3 Phase

Nameplate Voltage 230V AC

Nominal Tank Depth (In.) 8 in

Overall Height 14.06 in

Overall Length 5.81 in

Overall Width 5.5 in

Package Quantity 1

Phase Three

Pump Housing Material Cast Iron

RPM 1,750 RPM

Seal Material Nitrile Rubber

Shaft Material Stainless Steel

Shaft Seal Nitrile Butadiene Rubber

Shut-Off (Ft.) 10 ft

Type Coolant

Voltage 230

Width (In.) 5 1/2 in
