Roof Vent, 48 In, w/ 3 HP Drive Pkg

SKU
Brand Dayton
Categories
Description Axial Upblast Roof Exhaust Fan, Includes Motor Yes, Includes Drive Package Yes, Drive Type Belt Drive, Base Diameter Not Applicable, Base Length 57 1/2 in, Base Width 57 1/2 in, Base Shape Square, Nameplate Voltage 208-230/460V AC, Phase 3, Motor Horsepower 3 hp, High-Efficiency Motor No, For High-Static Pressure Applications No, Motor Enclosure Totally Enclosed Fan Cooled, Blade Diameter 48 in, For Air Type Emergency Smoke, Maximum Static Pressure 3/8 in wc
graingerSKU: 7M7V4, mscSKU: , zoro_no: G3207976, mongo_id: 65bbe5d73aaddbd5a9fededb

Web Price

$7,943.74 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV86

Adj. 6 3/8H Roof Curb Stock No. 3C216

Agency Compliance UL And C-UL Listed

Airflow @ 0.000 in SP 29,373 cfm

Application Industrial and Commercial Buildings Such as Warehouses, Manufacturing Facilities, Foundries and Laboratories

Assembled/Unassembled Unassembled

Assembly Unassembled

Base Diameter Not Applicable

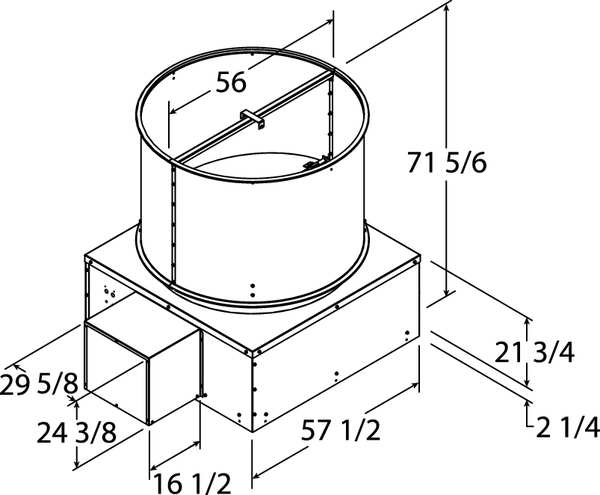

Base Dimension 57 1/2 in Square

Base Height 1 3/4 in

Base Height (In.) 1.75 in

Base Length 57 1/2 in

Base Length (In.) 57-1/2

Base Shape Square

Base Size - Roof Ventilators 57 1/2 in x 57 1/2 in

Base Square Size - Roof Ventilators 57-1/2 x 57-1/2

Base Width 57 1/2 in

Base Width (In.) 57-1/2

Bearing Type Regreasable Pillow Block

Blade Dia. 48 in

Blade Diameter 48 in

Blade Finish Galvanized

Blade Material Steel

Brake Horsepower 3 31/100 hp

CFM @ 0.000-In. SP 29,373

CFM @ 0.125-In. SP 26,836

CFM @ 0.250-In. SP 23,563

CFM @ 0.375-In. SP 19,730

Compatible Curb Manufacturer Part Number 2ZV86, 3AZJ7, 3C216, 4HX45, 4HX53

Country of Origin (subject to change) Multiple

Current 8.4-7.6/3.8 A

Drive Package Included Yes

Drive Package With Motor Included Yes

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 29,373 cfm

Exhaust Airflow @ 0.000 in SP - Range 20,000 to 40,000 cfm

Exhaust Airflow @ 0.000 in. SP - Range More than 15,000 cfm

Exhaust Airflow @ 0.100 in SP 29,373 cfm

Exhaust Airflow @ 0.125 in SP 26,836 cfm

Exhaust Airflow @ 0.250 in SP 23,563 cfm

Exhaust Airflow @ 0.375 in SP 19,730 cfm

Fan RPM 496

Features A Removable Motor Cover Enables Quick and Easy Access to the Motor, Belt and Drives From the Roof Deck, Spring Loaded Damper Lifters

For Air Type Emergency Smoke

For High-Static Pressure Applications No

Frequency 60 Hz

Fusible Link Temperature 165 Degrees F

High-Efficiency Motor No

Housing Finish Galvanized

Housing Length 56 in

Housing Material Steel

Housing Width 56 in

Includes Drive Package Yes

Includes Motor Yes

Item - Roof Ventilators Emergency Smoke Ventilator

Material Steel Blade with Steel Housing

Max. BHP 3.31 hp

Max. Inlet Temp. (Deg. F) 120 Degrees F

Max. Operating Amps 8.7-7.8/3.9

Maximum Fan Speed 496 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Static Pressure 3/8 in wc

Motor Enclosure Totally Enclosed Fan Cooled

Motor Enclosure Design Totally Enclosed Fan-Cooled (TEFC)

Motor Horsepower 3 hp

Motor HP 3 hp

Motor Hz 60

Motor Voltage 208/230/460

Mount Type Roof Curb

Mounting Location Roof

Nameplate Voltage 208-230/460V AC

Nameplate Voltage - Phase 208-230/460V AC - 3 Phase

Nominal Voltage 208-230/460V AC

Number of Blades 6

Number of Speeds 1

Overall Depth 57 1/2 in

Overall Dia. (In.) 56 in

Overall Diameter 56 in

Overall Height 71 3/4 in

Overall Height (In.) 71.8333 in

Overall Width 74 in

Package Quantity 1

Phase 3

Propeller Material Steel

Propeller Shaft Diameter 1 3/4 in

Recommended 12 In. Fixed Curb Item No. 4HX53

Recommended 8 In. Fixed Curb Item No. 4HX45

Requires Roof Curb for New Installations

Shaft Dia. Propeller End (In.) 1.25 in

Shaft Dia. Sheave End (In.) 1.25 in

Smoke Control Maximum Temperature 100 Degrees F 15 min, 500 Degrees F 4 hr

Sones @ 0.125-In. SP @ 5 Ft. 23 sones

Sones @ 0.250-In. SP @ 5 Ft. 22 sones

Sound Level 22.0 sones @ 0.250 in SP and 5 ft, 23.0 sones @ 0.000 in SP and 5 ft, 23.0 sones @ 0.125 in SP and 5 ft, 23.0 sones @ 0.375 in SP and 5 ft

Spark Resistant Construction Type A

Speed Control No

Speed Controllable No

Standards AMCA Standard 301, UL/cUL 793

Stock No. 2RB67

Type Emergency Smoke

Voltage - Roof Ventilators 208V AC/230V AC/460V AC
