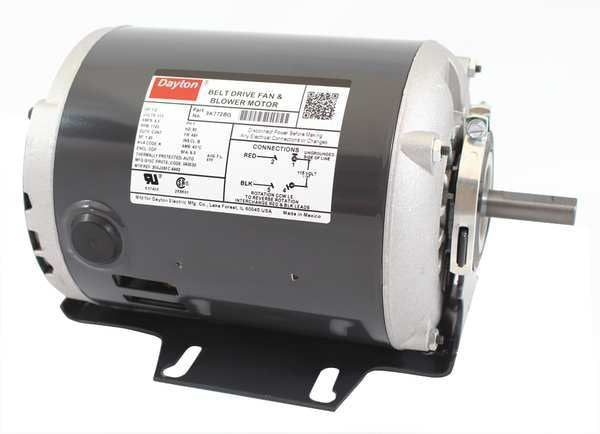

Split-Phase Belt Drive Motor, 1/2 HP, 48 Frame, 115V AC Voltage, 1,725 Nameplate RPM
Split-Phase Belt Drive Motor, 1/2 HP, 48 Frame, 115V AC Voltage, 1,725 Nameplate RPM

Split-Phase Belt Drive Motor, 1/2 HP, 48 Frame, 115V AC Voltage, 1,725 Nameplate RPM

  • Dayton

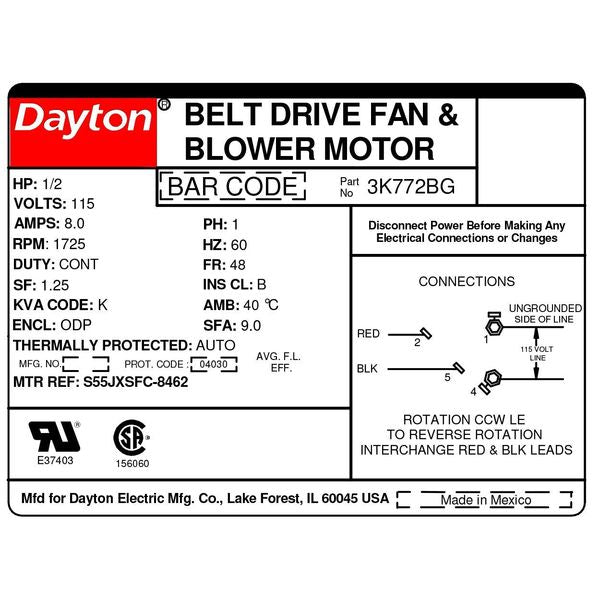

  • Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, 8 Full Load Amps, 48Y Frame, 60 Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 1/2 in, Shaft Length 1 1/2 in

    graingerSKU: 3K772, mscSKU: , zoro_no: G1464915, mongo_id: 65bbe7949a749db822745053

Web Price
$262.49 / each
Qty

Product Details

5 5/8 in
Multiple
Continuous
Continuous
48Y
Rolled steel
8
1/2
60
5/8 in diameter bushing with shaft key
B
104 Degrees F
HVAC/R
Ball
Split-Phase
Open Dripproof
Rolled Steel
All Angle
Cradle Base
1.25
Flat
CW/CCW
Belt Drive Fan/Blower
Auto
1,725
1
9 15/16 in
1
Single
2 1/2 in
7 15/16 in
1,701-1,800
1/2 in
1 1/2 in
CSA Certified, UL Recognized
115V AC
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
