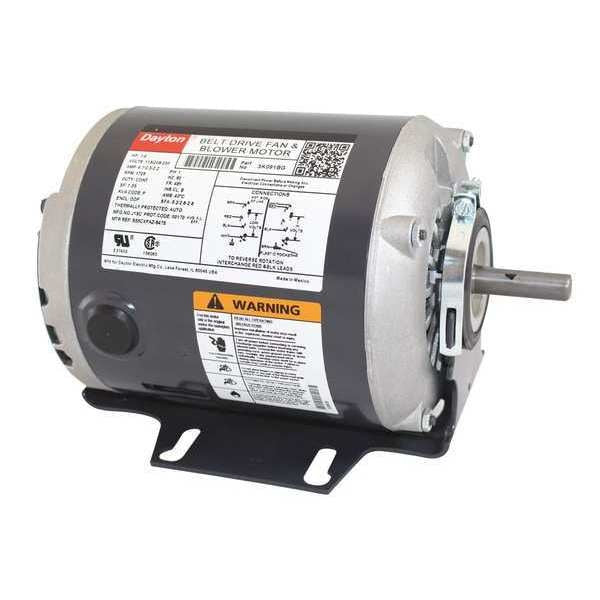

Split-Phase Belt Drive Motor, 1/4 HP, 48 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM
Split-Phase Belt Drive Motor, 1/4 HP, 48 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

Split-Phase Belt Drive Motor, 1/4 HP, 48 Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

  • Dayton
  • Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 4.7/2.3-2.2 Full Load Amps, 48 Frame, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Rolled Steel, Shaft Dia. 1/2 in

    graingerSKU: 3K091, mscSKU: , zoro_no: G0524474, mongo_id: 65bbe7bf9a749db822753690

Web Price
$240.49 / each
Qty

Product Details

5 5/8 in
Multiple
Continuous
Continuous
Notched for 48 or 56 frame mount.
48
Rolled steel
4.7/2.3-2.2
1/4
60
B
7 15/16 in
104 Degrees F
HVAC/R
Ball
Split-Phase
Open Dripproof
Rolled Steel
All Angle
Cradle Base
1.35
Flat
CW/CCW
Belt Drive Fan/Blower
Auto
1,725
1
9 7/16 in
1
Single
2 1/2 in
7 7/16 in
1,701-1,800
1/2 in
1 1/2 in
UL Recognized (E37403) and CSA Certified (258501)
115/208-230V AC
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
