Supply Vent, 13 1/4 In

SKU
Brand Dayton
Categories
Description Centrifugal Roof Supply Fan, Mounting Location Roof and Wall, Wheel Diameter 13 1/4 in, Base Diameter Not Applicable, Base Length 34 1/2 in, Base Shape Square, Base Width 34 1/2 in, Maximum Airflow 4,176 cfm, Minimum Airflow 1,760 cfm, Maximum Motor Horsepower 1 1/2 hp, Minimum Motor Horsepower 1/3 hp, Minimum Motor Speed 550 RPM, Maximum Motor Speed 890 RPM, Maximum Static Pressure 7/8 in wc, Number of Filters 2, Filter Housing Depth 29 1/4 in, Filter Housing Height 27 1/2 in
graingerSKU: 4YC47, mscSKU: , zoro_no: G3088696, mongo_id: 65bbe89622d7a989a9902ab6

Web Price

$2,269.99 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV84

Adj. 6 3/8H Roof Curb Stock No. 4c455

Agency Compliance cUL Listed, UL Listed

Application Commercial Kitchen, Institutional Buildings

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 34 1/2 in Square

Base Height 1.5 in

Base Height (In.) 1 1/2 in

Base Length 34 1/2 in

Base Length (In.) 32-1/2

Base Shape Square

Base Size - Roof Ventilators 34 1/2 in x 34 1/2 in

Base Square Size - Roof Ventilators 32-1/2 x 32-1/2

Base Width 34 1/2 in

Base Width (In.) 32-1/2

Bearing Type Sealed Pillow Block

Brake Horsepower 3/10 hp

CFM Range 2150 to 3950

Country of Origin (subject to change) United States

Cutout Length 13.8 in

Cutout Size 13 3/4 in L x 15 5/8 in W

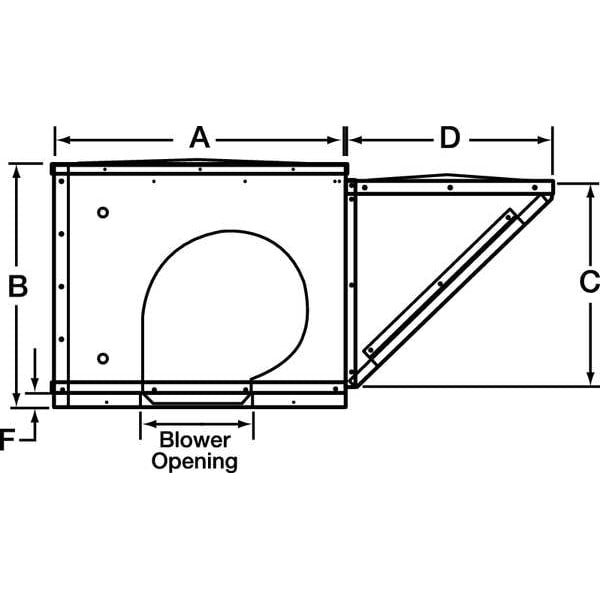

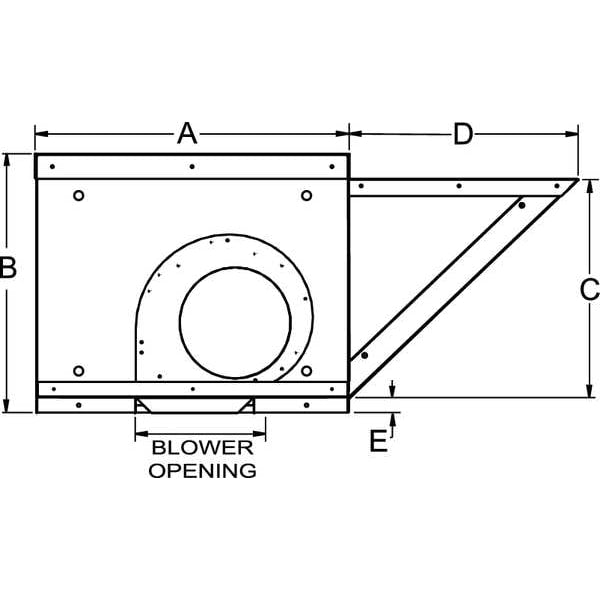

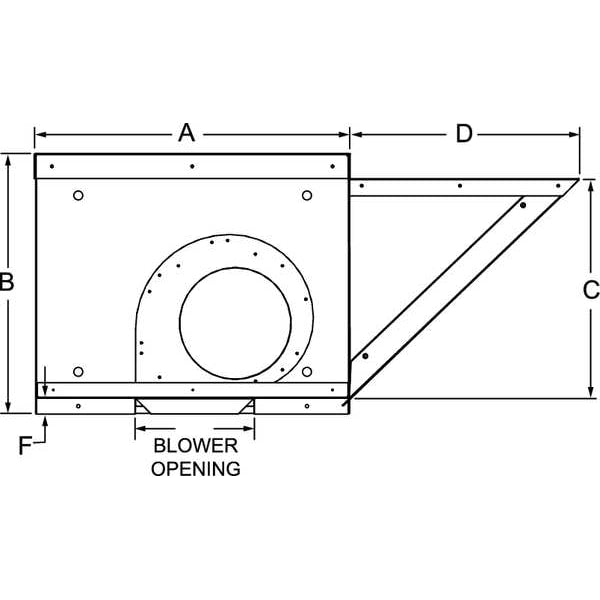

Dimension A 34 1/2 in

Dimension A (In.) 34-1/2

Dimension B 32 in

Dimension B (In.) 32

Dimension C 27 1/2 in

Dimension C (In.) 27-1/2

Dimension D 29 1/4 in

Dimension D (In.) 29-1/4

Dimension E 2 in

Dimension E (In.) 2

Dimension F 2 in

Dimension F (In.) 2

Discharge Length (In.) 13 3/4 in

Discharge Width (In.) 15 5/8 in

Drive Package Included No

Drive Package With Motor Included No

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Electrical Connection Power Cord

Features Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Neoprene Isolators Minimize Vibration and Noise

Filter Area 3 3/4 sq ft

Filter Area (Square-Ft.) 3 3/4 sq ft

Filter Depth (In.) 7/8 in

Filter Height (In.) 19 5/8 in

Filter Housing Depth 29 1/4 in

Filter Housing Depth (In.) 29 1/4 in

Filter Housing Height 27 1/2 in

Filter Housing Height (In.) 27 1/2 in

Filter Housing Width 28 1/8 in

Filter Housing Width (In.) 28 1/8 in

Filter Material Aluminum

Filter Width (In.) 27 5/8 in

For Airflow (Dependent on Motor) 1,760 cfm to 4,176 cfm

Hood Height 32 in

Hood Length 63.8 in

Hood Width 64.5 in

Housing Finish Galvanized

Housing Height (In.) 32 in

Housing Length 34.5 in

Housing Length (In.) 34 1/2 in

Housing Material Steel

Housing Width 63.8 in

Housing Width (In.) 64 1/2 in

Includes Washable Aluminum Filters

Includes Drive Package No

Includes Motor No

Item - Roof Ventilators Filtered Supply Ventilator

Material Steel Wheel with Steel Housing

Max. Inlet Temp. (Deg. F) 120 Degrees F

Maximum Airflow 4,176 cfm

Maximum Ambient Temperature 120 Degrees F

Maximum Fan Speed 890 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Motor Horsepower 1 1/2 hp

Maximum Motor Speed 890 RPM

Maximum Static Pressure 7/8 in wc

Minimum Airflow 1,760 cfm

Minimum Motor Horsepower 1/3 hp

Minimum Motor Speed 550 RPM

Motor HP Range 1/3 to 1 1/2

Motor Location Out of Airstream

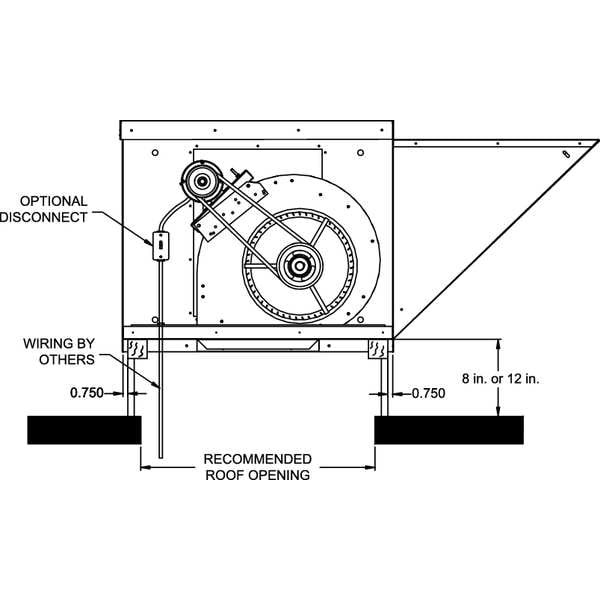

Mount Type Roof Curb

Mounting Location Wall, Roof

Mounting Orientation Horizontal

Number of Filters 2

Number of Filters Required 2

Overall Diameter 63 3/4 in

Overall Height 32 in

Overall Length 34 1/2 in

Overall Width 63 3/4 in

Package Quantity 1

Propeller Shaft Diameter 3/4 in

Recommended 12 In. Fixed Curb Item No. 2RB80

Recommended 8 In. Fixed Curb Item No. 4HX42

Requires Roof curb for new installations

Resistance Properties Spark Resistant

RPM Range 550 to 890

Shaft Dia. Sheave End (In.) 3/4 in

Shaft Dia. Wheel End (In.) 3/4 in

Sound Level Fan RPM 550: 16.0 sones @ 0.000 in SP and 5 ft, 14.6 sones @ 0.125 in SP and 5 ft, 12.8 sones @ 0.250 in SP and 5 ft, Fan RPM 640: 19.3 sones @ 0.000 in SP and 5 ft, 17.4 sones @ 0.125 in SP and 5 ft, 16.2 sones @ 0.250 in SP and 5 ft, 13.4 sones @ 0.375 in SP and 5 ft, Fan RPM 725: 23.0 sones @ 0.000 in SP and 5 ft, 21.0 sones @ 0.125 in SP and 5 ft, 21.0 sones @ 0.250 in SP and 5 ft, 19.2 sones @ 0.375 in SP and 5 ft, 16.7 sones @ 0.500 in SP and 5 ft, Fan RPM 810: 26.0 sones @ 0.000 in SP and 5 ft, 25.0 sones @ 0.125 in SP and 5 ft, 24.0 sones @ 0.250 in SP and 5 ft, 23.0 sones @ 0.375 in SP and 5 ft, 21.0 sones @ 0.500 in SP and 5 ft, 19.4 sones @ 0.625 in SP and 5 ft, Fan RPM 890: 30.0 sones @ 0.000 in SP and 5 ft, 28.0 sones @ 0.125 in SP and 5 ft, 27.0 sones @ 0.250 in SP and 5 ft, 26.0 sones @ 0.375 in SP and 5 ft, 24.0 sones @ 0.500 in SP and 5 ft, 22.0 sones @ 0.625 in SP and 5 ft, 19.9 sones @ 0.750 in SP and 5 ft, 18.5 sones @ 0.875 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 705

Type Centrifugal Belt Drive Less Drive Package

Wheel Bore (In.) 3/4 in

Wheel Dia. (In.) 13 1/4 in

Wheel Diameter 13 1/4 in

Wheel Material Steel

Wheel Type Forward Curved
