Supply Vent, 14 In

SKU
Brand Dayton
Categories
Description Supply Fan, Mounting Location Roof, Assembly Fully Assembled, Blade Diameter 14 in, Housing Material Aluminum, Exhaust Airflow @ 0.000 in SP 2,586 cfm, For High-Static Pressure Applications No, High-Efficiency Motor No, Maximum Static Pressure 3/4 in wc, Motor Enclosure Open Dripproof, Motor Horsepower 1/2 hp, Nameplate Voltage 115V AC, Number of Speeds 1, Phase 1, Maximum Inlet Air Temperature 120 Degrees F, Number of Blades 4, Supply Airflow @ 0.000 in SP 2,586 cfm
graingerSKU: 4YC94, mscSKU: , zoro_no: G1904524, mongo_id: 65bbe6613aaddbd5a90276dc

Web Price

$1,347.49 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV82

Adj. 6 3/8H Roof Curb Stock No. 4C453

Airflow @ 0.000 in SP 2,586 cfm

Airflow @ 0.000 in SP - Range 2,000 to 4,999 cfm

Application Industrial and Commercial Applications

Assembly Fully Assembled

Base Diameter Not Applicable

Base Dimension 22 in Square

Base Height 1 3/4 in

Base Length 22 in

Base Shape Square

Base Top to Shroud 6 1/4 in

Base Width 22 in

Blade Design Swept Steeply Pitched

Blade Diameter 14 in

Blade Material Aluminum

Brake Horsepower 23/50 hp

CFM @ 0.000-In. SP 2586

CFM @ 0.125-In. SP 2395

CFM @ 0.250-In. SP 2176

CFM @ 0.375-In. SP 1971

CFM @ 0.500-In. SP 1799

CFM @ 0.625-In. SP 1588

CFM @ 0.750-In. SP 1380

Compatible Curb Manufacturer Part Number 2RB76, 2ZV82, 4C453, 4C670, 4HX39, 4HX47

Compatible Speed Control 48C173

Country of Origin (subject to change) United States

Current 6.0/3.0 A

Cutout Length 17.5 in

Cutout Size 17.5 in L x 17.5 in W

Damper Size 15 x 15 in

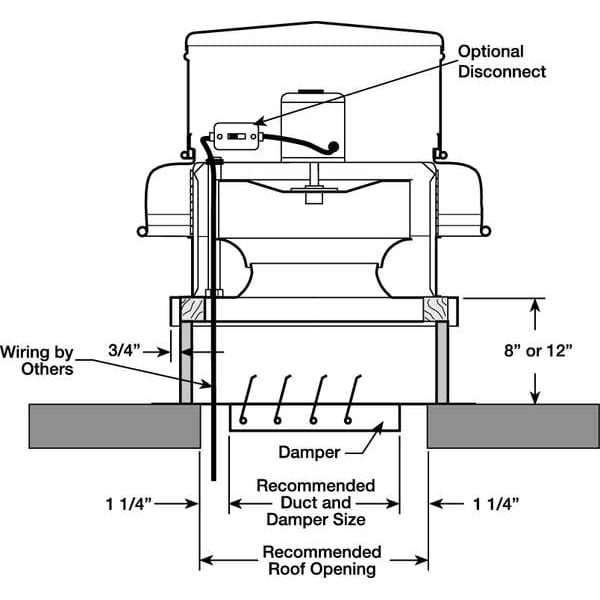

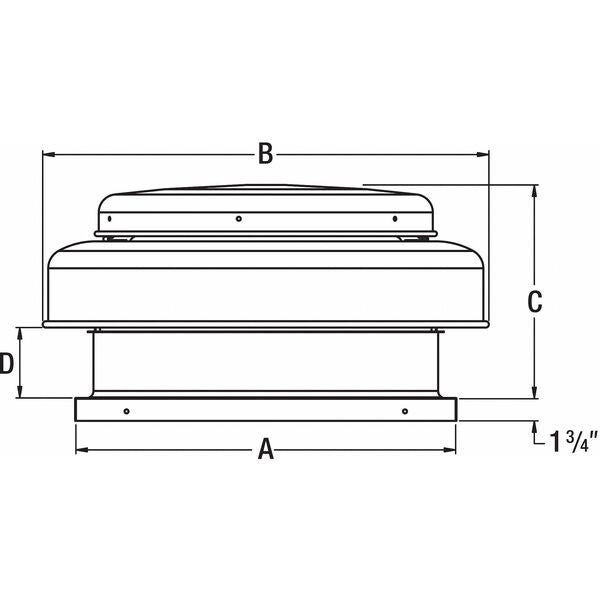

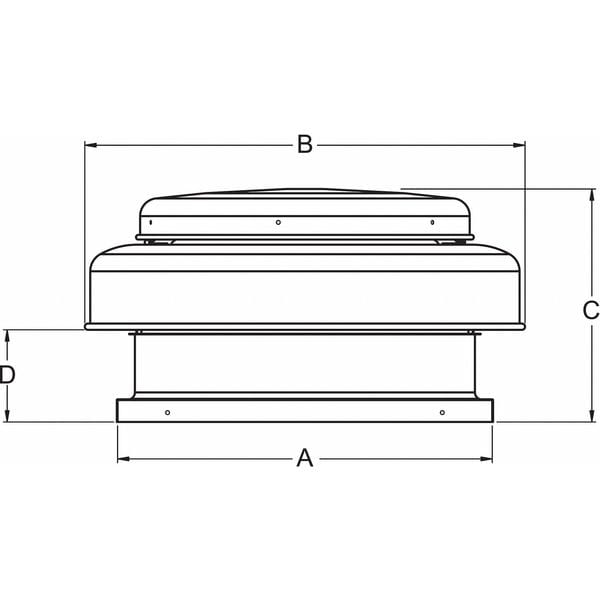

Dimension A 22 in

Dimension B 28 5/8 in

Dimension C 16 1/2 in

Dimension D 6 1/4 in

Drive Type Direct Drive

Electrical Connection Power Cord

Exhaust Airflow @ 0.000 in SP 2,586 cfm

Exhaust Airflow @ 0.125 in SP 2,395 cfm

Exhaust Airflow @ 0.250 in SP 2,176 cfm

Exhaust Airflow @ 0.375 in SP 1,971 cfm

Exhaust Airflow @ 0.500 in SP 1,799 cfm

Features Fully Rolled Baffle Bead for Stability and Ease of Transport With Spun Aluminum Hood Construction, Galvanized Steel Venturi, Inlet and Supports, NEMA 1 Junction Box Located in Motor Enclosure

For Air Type Clean Air

For High-Static Pressure Applications No

Frequency 60 Hz

High-Efficiency Motor No

Housing Length 28.6 in

Housing Material Aluminum

Housing Material Fabrication Spun

Housing Width 28.6 in

Hz_ 60

Includes NEMA 1 Junction Box

Includes Drive Package Yes

Includes Motor Yes

Material Aluminum Blade with Aluminum Housing

Max. BHP 0.46 hp

Max. Inlet Temp. 120 Degrees F

Max. Operating Amps 4.8

Maximum Fan Speed 1,750 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Static Pressure 3/4 in wc

Motor Efficiency Standard-Efficiency Motor

Motor Enclosure Open Dripproof

Motor Enclosure Design Open Dripproof (ODP)

Motor Horsepower 1/2 hp

Motor HP 1/2 hp

Motor Location In Airstream

Mount Type Roof Curb

Mounting Location Roof

Nameplate Voltage 115V AC

Number of Blades 4

Number of Speeds 1

Overall Dia. 28 5/8 in

Overall Diameter 28.6 in

Overall Height 18 1/4 in

Overall Length 28 5/8 in

Overall Width 28 5/8 in

Package Quantity 1

Phase 1

Propeller Dia. 14 in

Propeller Material Aluminum

Propeller Shaft Diameter 1/2 in

Recommended 12 In. Fixed Curb Item No. 2RB76

Recommended 8 In. Fixed Curb Item No. 4HX39

Recommended Damper Size 15 in x 15 in

Recommended Damper Stock No. 4HX65

Requires Roof Curb for New Installation

RPM 1750

Safety Features Birdscreen

Shaft Dia. Propeller End 1/2 in

Sones @ 0.125-In. SP @ 5 Ft. 19.8

Sones @ 0.250-In. SP @ 5 Ft. 19.9

Sound Level 19.8 sones @ 0.125 in SP and 5 ft, 19.8 sones @ 0.375 in SP and 5 ft, 19.9 sones @ 0.250 in SP and 5 ft, 19.9 sones @ 0.750 in SP, 20.0 sones @ 0.000 in SP and 5 ft, 21.0 sones @ 0.500 in SP and 5 ft, 21.0 sones @ 0.625 in SP and 5 ft

Speed Control 48C173

Speed Controllable Yes

Standards AMCA Sound and Air, UL/cUL 705

Supply Airflow @ 0.000 in SP 2,586 cfm

Supply Airflow @ 0.000 in SP - Range 2,000 to 4,999 cfm

Supply Airflow @ 0.125 in SP 2,395 cfm

Supply Airflow @ 0.250 in SP 2,176 cfm

Supply Airflow @ 0.375 in SP 1,971 cfm

Supply Airflow @ 0.500 in SP 1,799 cfm

Voltage 115
