Supply Vent, 15 1/2 In

SKU
Brand Dayton
Categories
Description Centrifugal Roof Supply Fan, Mounting Location Roof, Wheel Diameter 15 1/2 in, Base Diameter Not Applicable, Base Length 34 1/2 in, Base Shape Square, Base Width 34 1/2 in, Maximum Airflow 5,284 cfm, Minimum Airflow 1,065 cfm, Maximum Motor Horsepower 2 hp, Minimum Motor Horsepower 1/2 hp, Minimum Motor Speed 535 RPM, Maximum Motor Speed 820 RPM, Maximum Static Pressure 1 in wc, Number of Filters 2, Filter Housing Depth 29 1/4 in, Filter Housing Height 27 1/2 in, Filter Housing Width 28 1/8 in
graingerSKU: 4YC83, mscSKU: , zoro_no: G2761753, mongo_id: 65bbe99922d7a989a99672bf

Web Price

$2,631.24 / each

Qty

Product Details

Adj. 12 3/8H Roof Curb Stock No. 2ZV84

Adj. 6 3/8H Roof Curb Stock No. 4c455

Agency Compliance cUL Listed, UL Listed

Application Commercial Kitchen, Institutional Buildings

Assembly Unassembled

Base Diameter Not Applicable

Base Dimension 34 1/2 in Square

Base Height 1.5 in

Base Height (In.) 1 1/2 in

Base Length 34 1/2 in

Base Length (In.) 32-1/2

Base Shape Square

Base Size - Roof Ventilators 32 1/2 in x 32 1/2 in

Base Square Size - Roof Ventilators 32-1/2 x 32-1/2

Base Width 34 1/2 in

Base Width (In.) 32-1/2

Bearing Type Sealed Pillow Block

Brake Horsepower 27/50 hp

CFM Range 3050 to 5050

Country of Origin (subject to change) United States

Cutout Length 16 in

Cutout Size 16 in L x 18 5/8 in W

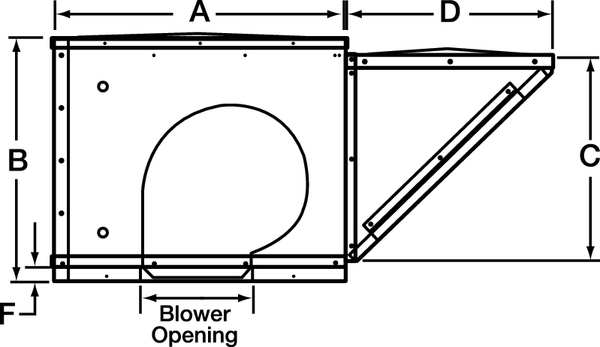

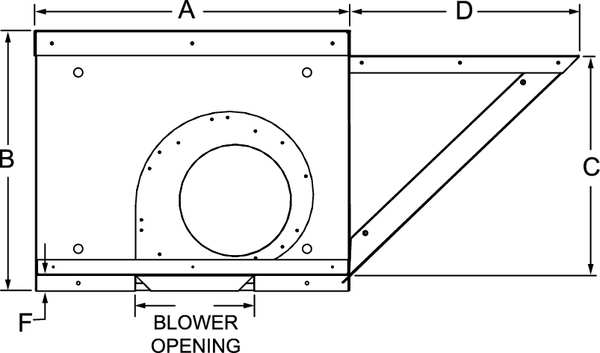

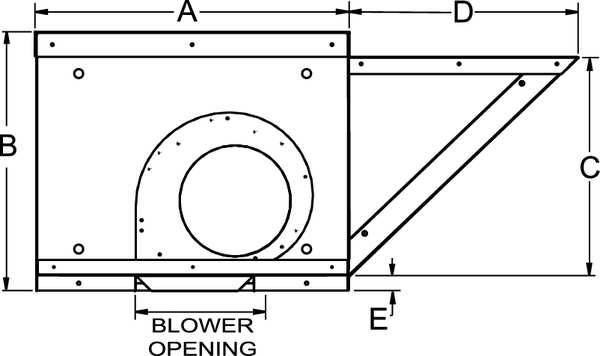

Dimension A 34 1/2 in

Dimension A (In.) 34-1/2

Dimension B 32 in

Dimension B (In.) 32

Dimension C 27 1/2 in

Dimension C (In.) 27-1/2

Dimension D 29 1/4 in

Dimension D (In.) 29-1/4

Dimension E 2 in

Dimension E (In.) 2

Dimension F 2 in

Dimension F (In.) 2

Discharge Length (In.) 16 in

Discharge Width (In.) 18 5/8 in

Drive Package Included No

Drive Package With Motor Included No

Drive Type Belt Drive

Drive Type - Roof Ventilators Belt Drive

Electrical Connection Power Cord

Features Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Neoprene Isolators Minimize Vibration and Noise

Filter Area 3 3/4 sq ft

Filter Area (Square-Ft.) 3 3/4 sq ft

Filter Depth (In.) 7/8 in

Filter Height (In.) 19 5/8 in

Filter Housing Depth 29 1/4 in

Filter Housing Depth (In.) 29 1/4 in

Filter Housing Height 27 1/2 in

Filter Housing Height (In.) 27 1/2 in

Filter Housing Width 28 1/8 in

Filter Housing Width (In.) 28 1/8 in

Filter Material Aluminum

Filter Width (In.) 27 5/8 in

For Airflow (Dependent on Motor) 1,065 cfm to 5,284 cfm

Hood Height 32 in

Hood Length 63.8 in

Hood Width 64.5 in

Housing Finish Galvanized

Housing Height (In.) 32 in

Housing Length 34.5 in

Housing Length (In.) 34 1/2 in

Housing Material Steel

Housing Width 63.8 in

Housing Width (In.) 64 1/2 in

Includes Washable Aluminum Filters

Includes Drive Package No

Includes Motor No

Item - Roof Ventilators Filtered Supply Ventilator

Material Steel Wheel with Steel Housing

Max. Inlet Temp. (Deg. F) 120 Degrees F

Maximum Airflow 5,284 cfm

Maximum Ambient Temperature 120 Degrees F

Maximum Fan Speed 820 RPM

Maximum Inlet Air Temperature 120 Degrees F

Maximum Motor Horsepower 2 hp

Maximum Motor Speed 820 RPM

Maximum Static Pressure 1 in wc

Minimum Airflow 1,065 cfm

Minimum Motor Horsepower 1/2 hp

Minimum Motor Speed 535 RPM

Motor HP Range 3/4 to 2

Motor Location Out of Airstream

Mount Type Roof Curb

Mounting Location Roof

Mounting Orientation Horizontal

Number of Filters 2

Number of Filters Required 2

Overall Diameter 63 3/4 in

Overall Height 32 in

Overall Length 34 1/2 in

Overall Width 63 3/4 in

Package Quantity 1

Propeller Shaft Diameter 1 in

Recommended 12 In. Fixed Curb Item No. 2RB80

Recommended 8 In. Fixed Curb Item No. 4HX42

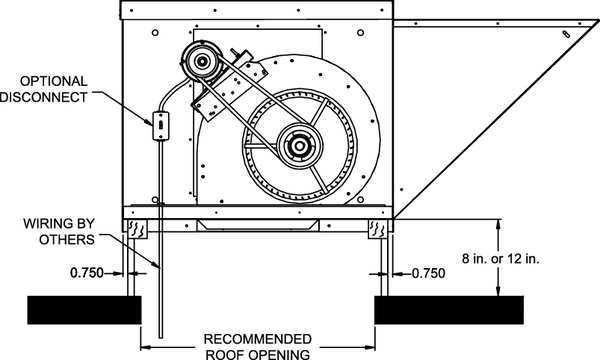

Requires Roof curb for new installations

Resistance Properties Spark Resistant

RPM Range 535 to 820

Shaft Dia. Sheave End (In.) 1 in

Shaft Dia. Wheel End (In.) 1 in

Sound Level Fan RPM 535: 15.3 sones @ 0.000 in SP and 5 ft, 13.3 sones @ 0.125 in SP and 5 ft, 11.2 sones @ 0.250 in SP and 5 ft, 10.2 sones @ 0.375 in SP and 5 ft, 9.3 sones @ 0.500 in SP and 5 ft, Fan RPM 605: 19.2 sones @ 0.000 in SP and 5 ft, 17.8 sones @ 0.125 in SP and 5 ft, 15.8 sones @ 0.250 in SP and 5 ft, 14.1 sones @ 0.375 in SP and 5 ft, 11.9 sones @ 0.500 in SP and 5 ft, 10.9 sones @ 0.625 in SP and 5 ft, Fan RPM 670: 22.0 sones @ 0.000 in SP and 5 ft, 21.0 sones @ 0.125 in SP and 5 ft, 18.7 sones @ 0.250 in SP and 5 ft, 17.2 sones @ 0.375 in SP and 5 ft, 15.1 sones @ 0.500 in SP and 5 ft, 14.2 sones @ 0.625 in SP and 5 ft, 13.2 sones @ 0.750 in SP and 5 ft, Fan RPM 745: 26.0 sones @ 0.000 in SP and 5 ft, 24.0 sones @ 0.125 in SP and 5 ft, 22.0 sones @ 0.250 in SP and 5 ft, 21.0 sones @ 0.375 in SP and 5 ft, 20.0 sones @ 0.500 in SP and 5 ft, 18.2 sones @ 0.625 in SP and 5 ft, 16.4 sones @ 0.750 in SP and 5 ft, 15.4 sones @ 0.875 in SP and 5 ft, Fan RPM 820: 30.0 sones @ 0.000 in SP and 5 ft, 28.0 sones @ 0.125 in SP and 5 ft, 26.0 sones @ 0.250 in SP and 5 ft, 25.0 sones @ 0.375 in SP and 5 ft, 23.0 sones @ 0.500 in SP and 5 ft, 22.0 sones @ 0.625 in SP and 5 ft, 20.0 sones @ 0.750 in SP and 5 ft, 18.7 sones @ 0.875 in SP and 5 ft, 16.9 sones @ 1.000 in SP and 5 ft

Spark Resistant Construction Type A

Speed Controllable No

Standards AMCA Sound and Air, UL/cUL 705

Type Centrifugal Belt Drive Less Drive Package

Wheel Bore (In.) 1 in

Wheel Dia. (In.) 15 1/2 in

Wheel Diameter 15 1/2 in

Wheel Material Steel

Wheel Type Forward Curved
